36W Easy use Constant Current Casambi LED Driver with 500ma to 1050mA output for smart lighting system
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operating Voltage | 220-240Vac | Input Current | 0.2A Max. |
|---|---|---|---|
| Inrush Current | 15A MAX. | Power Factor | ≥0.95 |
| Output Current | 500-1050mA | Accuracy | ±5% |
| Communication | Casambi Bluetooth | Transmitting Distance | 30m Indoor |
| Warranty | 5 Years | IP Rating | IP20 |
Product Description

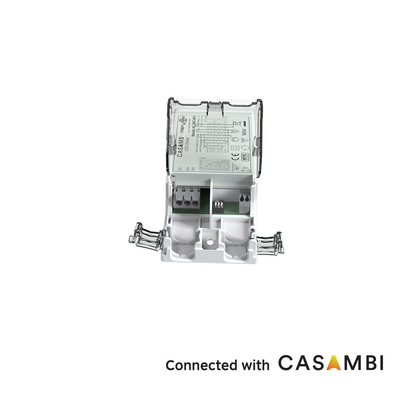

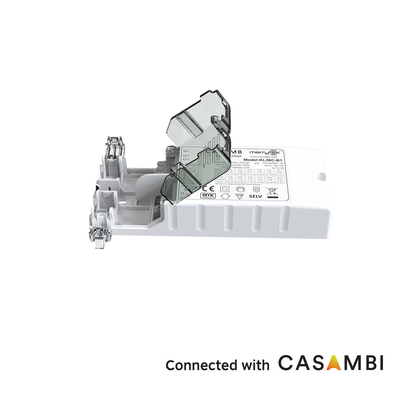

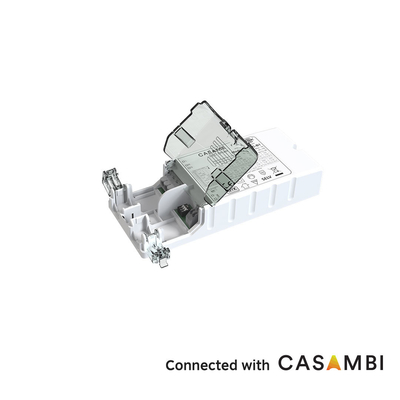

36W Easy use Constant Current Casambi LED Driver with 500ma to 1050mA output for smart lighting system
【Product Feature】
*Comply with Casambi smart lighting system
*Flicker-free for the whole dimming range
*Stand-by power below 0.5W
*Protection: short circuit / over temperature/ over voltage
*Derating current for overly high ambient temperature
*5-year warranty
【Parameters】
| Input | Operating Voltage | 198-264Vac 50Hz/60Hz | ||||||
| Rated Input Voltage | 220-240Vac 50Hz/60Hz | |||||||
| DC Input Voltage range | 200-240Vdc | |||||||
| Input Current | 0.2A Max. | |||||||
| Input Inrush Current | <15A (Half current pulse width100μs) @230Vac | |||||||
| Power factor(@230V100% load) | ≥ 0.95 | |||||||
| Total harmonic distortion | Typical:15% (@230Vac, 100% load) | |||||||
| Stand-by power | ≤ 0.5W (@230Vac) | |||||||
| Efficiency(@230Vac,100% load) | 87% Max. | |||||||
| Wiring Method | Wire cross section: 0.75-2.5mm2 | |||||||
|
Automatic circuit breaker (Calculate current in the wire) |
type | B10 | B13 | B16 | B20 | B25 | / | |
| Number | 20 | 25 | 35 | 45 | 55 | / | ||
| type | C10 | C13 | C16 | C20 | C25 | C32 | ||
| Number | 35 | 50 | 55 | 75 | 95 | 120 | ||
| Output | Operating mode | Constant Current | ||||||
| Load type | LED | |||||||
| Ripple requirement (Flickering or Flickering-Free) | Flicker value: less than 2% for whole dimming range | |||||||
| Start up time | <1s (@230Vac) | |||||||
| No-load output voltage | 58V DC Max. | |||||||
| Load output voltage range | 9-46V DC | |||||||
| Full load output power | 36W Max. | |||||||
| Load output current | 500mA(9-46Vdc) 550mA(9-46Vdc) 600mA(9-46Vdc) 650mA(9-46Vdc) 700mA(9-46Vdc) 750mA(9-46Vdc) 800mA(9-45Vdc) 850mA(9-42Vdc) 900mA(9-40Vdc) 950mA(9-38Vdc) 1000mA(9-36Vdc) 1050mA(9-34Vdc) | |||||||
| Constant current/voltage Precision | Constant Current Precision ±5% | |||||||
| Wiring method | Wire cross section: 0.75-1.5mm2 | |||||||
| Control Method | Working frequency | 2.4-2.48GHz | ||||||
| Transmitting power | +8dBm (Max.) | |||||||
| Transmission distance | Point-to-point transmission range 30m Max. | |||||||
| Modulation mode | O-QPSK PHY | |||||||
| Exception Protection Requirements | Output over temperature protection |
Yes, without self recovery function | ||||||
| Output short circuit protection | Yes, without self recovery function | |||||||
|
Operating Environment |
Operating temperature/ humidity | -25℃~50℃ Humidity: 85% (Non-condensing) | ||||||
| Storage temperature/ humidity | -40℃~80℃, Humidity: 85% (Non-condensing) | |||||||
| Max. case temp(Tc) | 85℃ | |||||||
|
Safety & EMC |
EMC standard | EN55015 EN61547 EN61000-3-2 EN61000-3-3 | ||||||
| Safety standard | EN61347-1 EN61347-2-13 | |||||||
| Certification | CE | |||||||
| Withstand voltage | 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”) | |||||||
| Others | Degrees of protection | IP20 | ||||||
| Type of protection | Class I | |||||||
| Installation type | Independent installation | |||||||
| Dimension | 154*63*28mm | |||||||
| Packaging requirement | PE bag + white box + manual + partition + outer box (K=A) | |||||||
| Weight | 166±5g | |||||||
| Life | 5 year @Ta full load | |||||||
| Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified. | ||||||||
【Dimension】
【Wiring】
【Derating】
【Output current setting】
| Current(mA) | DIP | Pomax(W) | Uout(V) | ||||
| 1 | 2 | 3 | 4 | ||||
| 500 | - | - | - | - | 23.0 | 9～ | 46 |
| 550 | ON | - | - | - | 25.3 | 9～ | 46 |
| 600 | - | ON | - | - | 27.6 | 9～ | 46 |
| 650 | ON | ON | - | - | 29.9 | 9～ | 46 |
| 700 | - | - | ON | - | 32.2 | 9～ | 46 |
| 750 | ON | - | ON | - | 34.5 | 9～ | 46 |
| 800 | - | ON | ON | - | 36.0 | 9～ | 45 |
| 850 | ON | ON | ON | - | 35.7 | 9～ | 42 |
| 900 | - | - | ON | ON | 36.0 | 9～ | 40 |
| 950 | ON | - | ON | ON | 36.1 | 9～ | 38 |
| 1000 | - | ON | ON | ON | 36.0 | 9～ | 36 |
| 1050 | ON | ON | ON | ON | 35.7 | 9～ | 34 |
【Application】
【ATTENTION】
1) The LED driver must be connected to the load before turning on the input power, otherwise, the LED driver may be damaged.
2) After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
