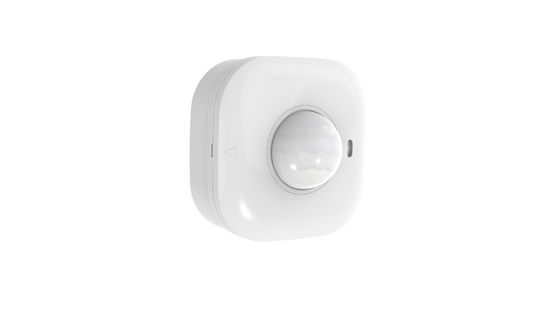

10m Mounting Height 0-10V Dimmable PIR Sensor With 3 Installation Method And 5 Years Warranty
| Place of Origin | China |
|---|---|
| Brand Name | Merrytek |
| Certification | CE |
| Model Number | MSA050S IR V |
| Minimum Order Quantity | 100pcs |
| Price | Negotiation |
| Packaging Details | White box+ White box tags+ Clapboard+ Carton(K=A) |
| Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Payment Terms | T/T |
| Supply Ability | 10,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Input Voltage | 220-240Vac | Working Current | 20mA MAX. |
|---|---|---|---|
| Power Consumption | ≤0.5W | Function | 0-10V Dimming |
| Detecting Area (radius) | 4-5m | Mounting Height | 2.5-10m |
| Installation | Flush-mounted/EU86 Box/ Surface Mounted | Warranty | 5 Years |
| Highlight | 5 years warranty PIR sensor,0-10V dimmable PIR sensor,10m Mounting Height PIR sensor |
||
Product Description
10m Mounting Height 0-10V dimmable PIR sensor with 3 installation method and 5 years warranty
1. Features
1) PIR motion detection
2) 0-10V dimming function
3) Daylight sensor detection is available
4) Detection area, and hold time can be set by remote control
5) Max detection range: 8-10m in diameter
6) 10m max mounting height: Warehouse, workshop, and lobby motion detection is highly recommended
7) Flush mounting, EU 86 box mounting, and surface mounting are available
2. Parameters
| Input/Output | Input voltage | 100-240V AC |
| Rated voltage | 230V AC | |
| Working current | 20mA max | |
| Power consumption | ≤0.5W @12/24V DC | |
| Output signal | 1 channel ON/OFF(Max 800w resistive loading and 400w inductive loading)+1 channel 0-10V | |
| Max. Surge Capacity | 50A (50% Ipeak, twidth =200us, 230Vac full load, cold start) | |
| Sensor parameter | Function | PIR motion detection+ daylight sensor |
| Detection Area | DIP or remote setting: 100%/75%/50%/25% | |
| Hold Time |
DIP: 5S/1min/5min/10min/20min/30min MH10 remote:5s/30s/1min/3min/5min/10min/20min/30min |
|
| Standby dim level | 10%/20%/30%/50% | |
| Standby time | 0S/1min/10min/∞ | |
| Daylight Sensor |
DIP: 50Lux/Disable MH10remote: 5Lux/15Lux/30Lux/50Lux/100Lux/ 150Lux/Disable |
|
| Daylight harvesting | Available(when daylight harvesting mode is enabled,its dimming range is 10%-100%,and our sensor will automatically be disabled when environment lux is higher than 1000lux and recover enabled when environment lower than 120lux) | |
| Radius detection range(based on 100% sensitivity) | 4-5m@25℃ based on 8m mounting height | |
| Remote control | Available | |
| Mounting height | 2.5-10m, typical value:8m | |
| Application environment | Drill hole | Φ55mm |
| Working temperature | -25℃...+50℃(detection range might differ based on different temperature ) | |
| Storage temperature | -40℃~+80℃ | |
| Warranty | 5 years(available based on product quality and indoor application) | |
| Certificate Standard | Certificate | Compliant to CE |
| Environmental requirements | Compliant to RoHS | |
| IP rating | IP54(surface mounting)/IP20(flush mounting) | |
| “N/A” means not available | ||
3. Dimension
Flush mounted:
Surface Mounted
4. Wiring Diagram
5. Detection radiation
6. Detection harvesting manual
The built-in light sensor can automatically detects the intensity of natural light to adjust the artificial light according to the preset lux level, to maintain target illumination. It can be used in offices, airports, shopping malls, and other occasions where the brightness of lamps needs to be adjusted according to sunlight during the day
Note: you shall long-press the MH10 remote’s “DH mode” button for more than 3s to start this function when the load fixtures flash once means the function is enabled successfully. After that, you shall press the “DIM+”/ ”DIM-” button to set the target lux level. When the setting is successful, when the external natural light becomes dark (brighter), the sensor will increase (lower) the brightness of the lamp to maintain the preset target lux level(this status is short in “With DH” in the following).
Long press “Override DH” 3s on the remote control to override the daylight harvesting function, load fixtures flash once means the function is disabled successfully.
ON/OFF function with daylight harvesting mode(stand-by period be set to “0s”, with DH mode)
2-step dimming with daylight harvesting mode (stand-by period be set to “+∞”, with DH mode)
3-step dimming with daylight harvesting mode (stand-by period be set to “1min/3min/10min/30min”)
7. DIP Switch Setting
Detection Area
| 1 | 2 | ||
| Ⅰ | ON | ON | 100% |
| Ⅱ | - | ON | 75% |
| Ⅲ | ON | - | 50% |
| Ⅳ | - | - | 25% |
Hold Time
| 3 | 4 | 5 | ||
| Ⅰ | ON | ON | ON | 5S |
| Ⅱ | - | ON | ON | 1min |
| Ⅲ | ON | - | ON | 5min |
| Ⅳ | - | - | ON | 10min |
| Ⅴ | ON | - | - | 20min |
| Ⅵ | - | - | - | 30min |
Daylight Sensor
| 6 | ||
| Ⅰ | ON | 50Lux |
| Ⅱ | - | Disable |
Standby Time
| 1 | 2 | ||
| Ⅰ | ON | ON | 0 |
| Ⅱ | - | ON | 1min |
| Ⅲ | ON | - | 10min |
| Ⅳ | - | - | ∞ |
Standby Dim Level
| 1 | 2 | ||
| Ⅰ | ON | ON | 10% |
| Ⅱ | - | ON | 20% |
| Ⅲ | ON | - | 30% |
| Ⅳ | - | - | 50% |
8. Remote Control MH10
9. The 3 mounting method we are talking about
