10m Mounting Height DALI Compact occupancy detectors With daylight harvesting function

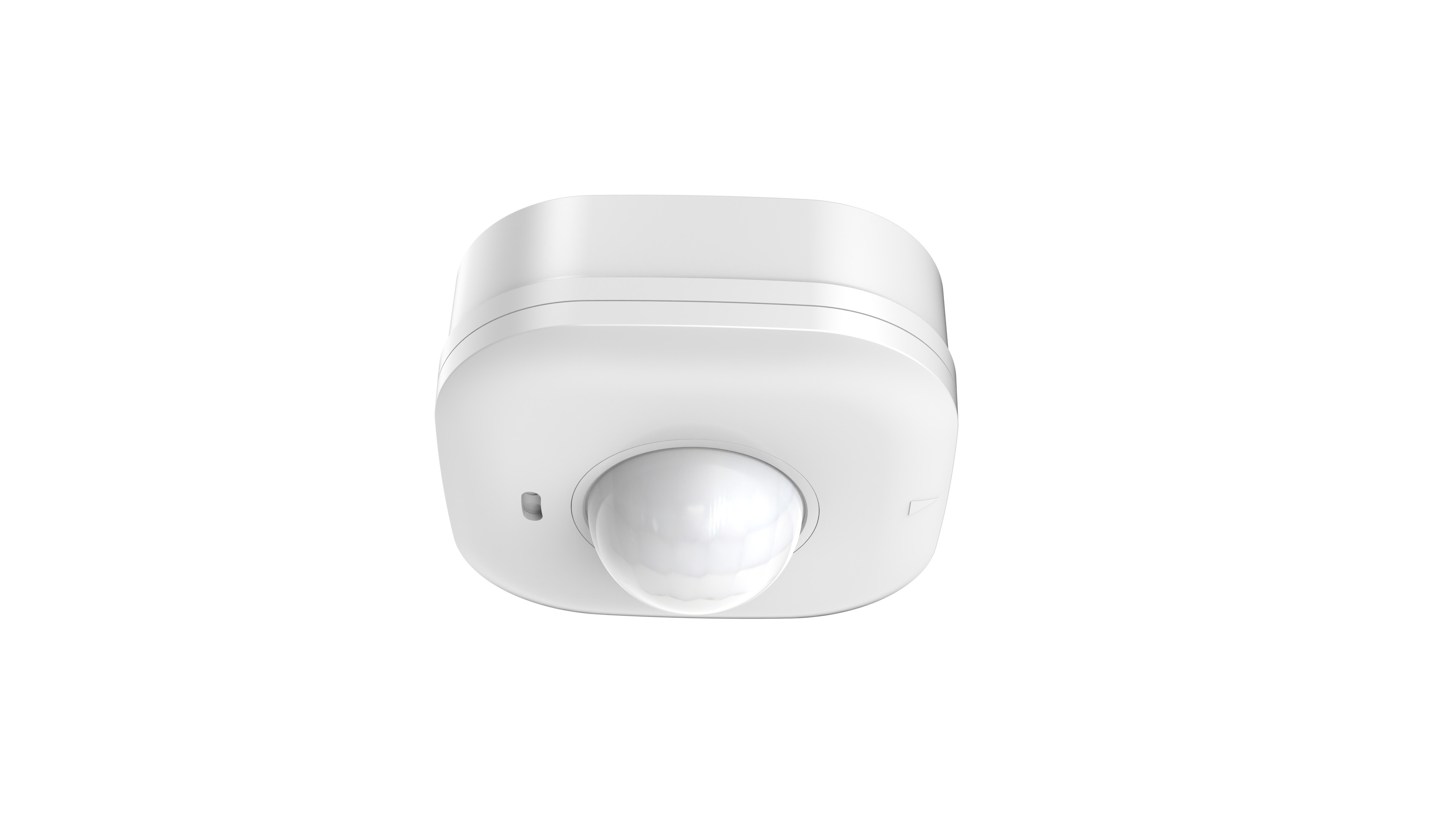

  • 10m Mounting Height DALI Compact occupancy detectors With daylight harvesting function

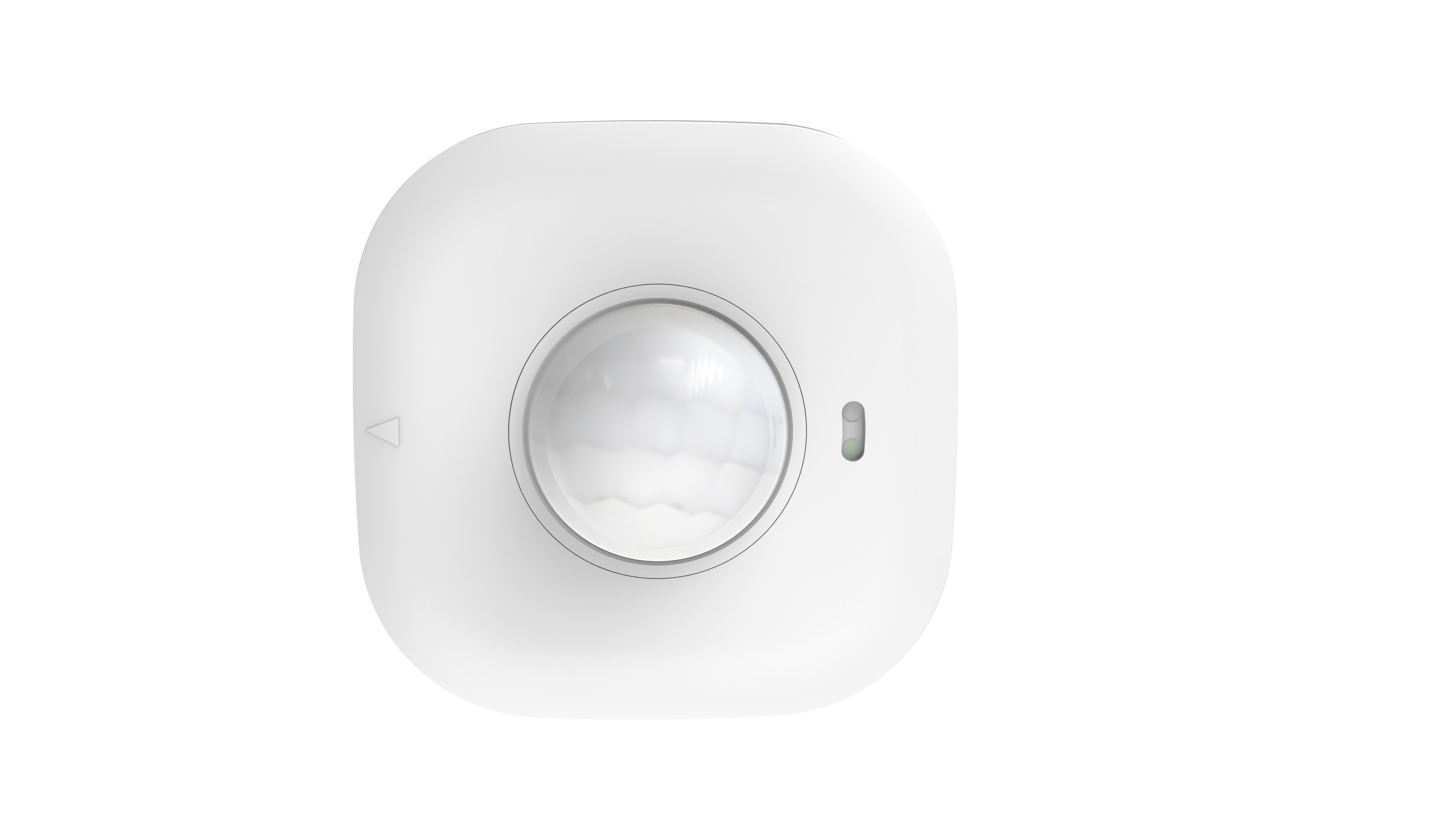

  • 10m Mounting Height DALI Compact occupancy detectors With daylight harvesting function

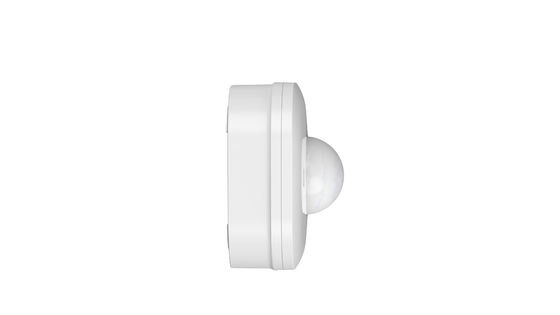

  • 10m Mounting Height DALI Compact occupancy detectors With daylight harvesting function

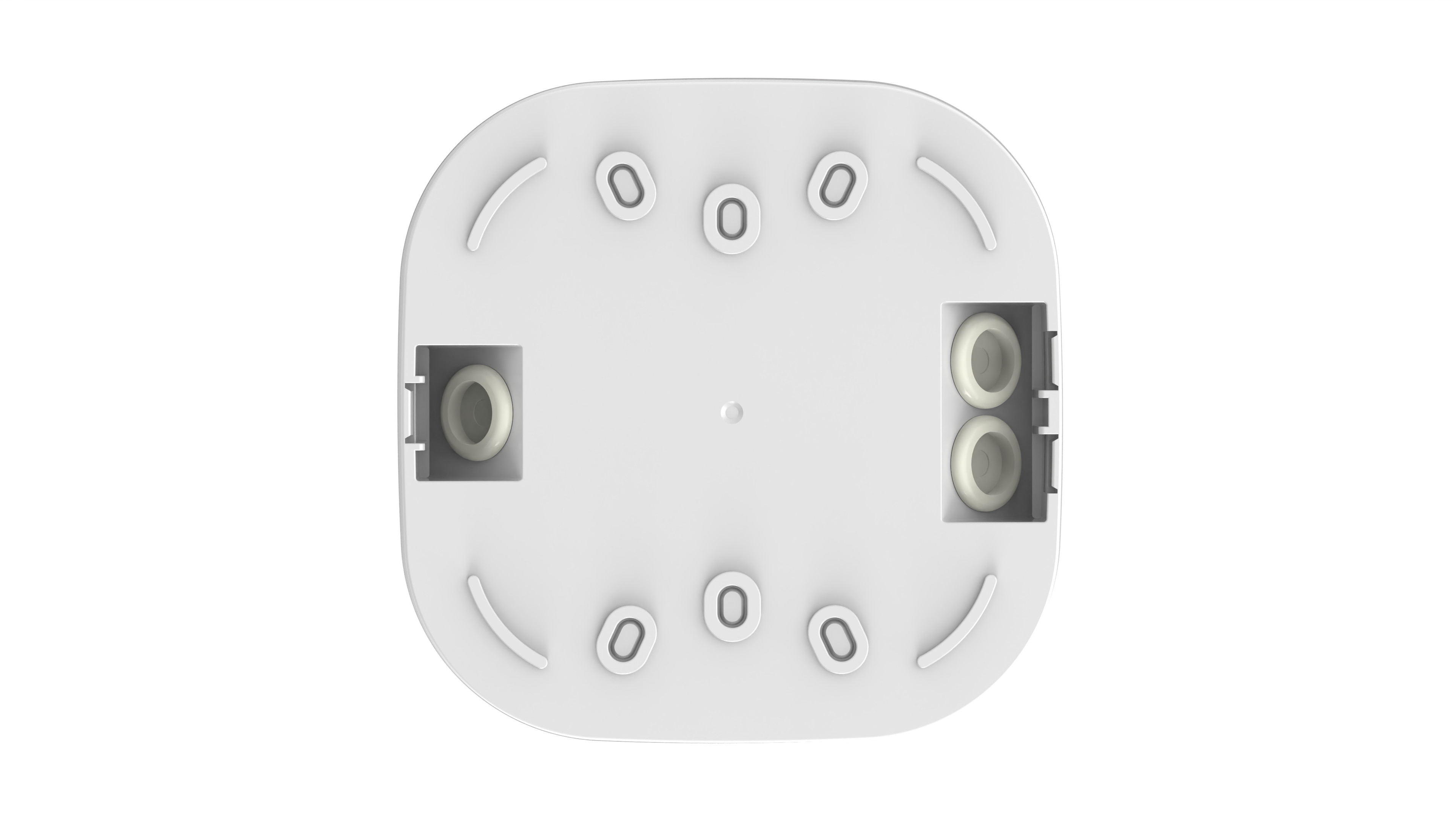

  • 10m Mounting Height DALI Compact occupancy detectors With daylight harvesting function

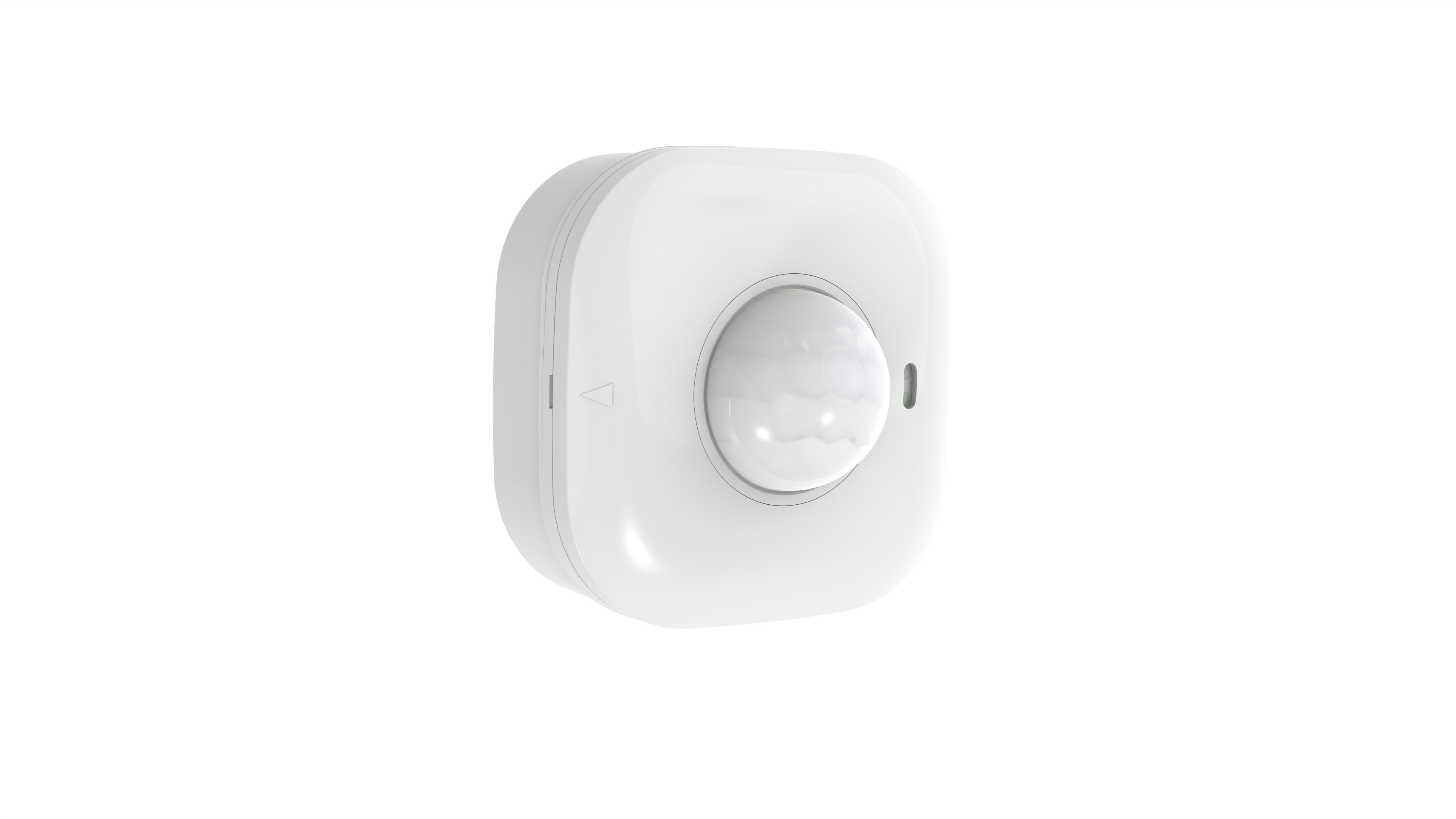

  • 10m Mounting Height DALI Compact occupancy detectors With daylight harvesting function
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MSA050 IR
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details White box+ White box tags+ Clapboard+ Carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 220-240Vac Working Current 20mA MAX.
Power Consumption ≤0.5W Function DALI+PUSH
Detecting Area (radius) 4-5m Mounting Height 2.5-10m
Installation Flush-mounted/86 Box/ Surface Mounted Cut Size Φ65-70mm
Leave a Message
Product Description

10m Mounting Height DALI Compact occupancy detectors with daylight harvesting function


1. Features
1) PIR motion detection
2) DALI Dimming signal output available
3) Daylight harvesting control
4) Detection area, hold time, and daylight threshold can be set by remote/DIP switch
5) Max detection range: 8-10m in diameter
6) 10m max mounting height: Warehouse, workshop, and lobby motion detection is highly recommended
7) Flush mounting and surface mounting are available


2. Parameters

Input/OutputInput voltage220-240V AC
Rated voltage220V AC
Working current20mA max
Power consumption≤0.5W @220/230V AC
Output signal

DALI+PUSH

DALI terminal:DA+ DA-(Max wire length 300m,Max terminal current 100mA)
PUSH terminal: manual dimming + on/off control (Max wire length 15m)

Max. Surge Capacity1KV(L/N,EN61000-4-5)
Sensor parameterFunctionPIR motion detection and + daylight harvesting
Daylight harvestingAvailable(when daylight harvesting mode is enabled, its dimming range is 10%-100%, and our sensor will automatically be disabled whenthe  environment lux is higher than 1000lux and recover enabled when the environment is lower than 120lux
Detection AreaDIP /remote setting: 100%/75%/50%/25%
Hold TimeDIP /remote setting:5s/1min/5min/10min/20min/30min
Daylight SensorDIP /remote setting: 50Lux/Disable
Stand-by dim LevelDIP /remote setting:10%/20%/30%/50%
Stand-by timeDIP /remote setting:0S/1min/10min/∞
Radius detection range(based on 100% sensitivity)4-5m@25℃ based on 8m mounting height
Remote controlAvailable
Mounting height2.5-10m, typical value 8m
Application environmentDrill holeΦ55mm
Working temperature-25℃...+50℃(detection range might differ based on different temperature )
Storage temperature-40℃~+80℃
Warranty5 years(available due to product quality problem under indoor application)
Certificate StandardCertificateCompliant with CE
Environmental requirementsCompliant with RoHS
IP ratingIP20(flush mounting) IP54(surface mounting)
“N/A” means not available


3. Dimension
Flush mounted:

10m Mounting Height DALI Compact occupancy detectors With daylight harvesting function 0
Surface Mounted

10m Mounting Height DALI Compact occupancy detectors With daylight harvesting function 1

10m Mounting Height DALI Compact occupancy detectors With daylight harvesting function 2

4. Wiring Diagram


10m Mounting Height DALI Compact occupancy detectors With daylight harvesting function 3
5. Detection of radiation

10m Mounting Height DALI Compact occupancy detectors With daylight harvesting function 4
6. DIP switch setting
Detection Area

12
ONON100%
-ON75%
ON-50%
--25%

Hold Time

345
ONONON5S
-ONON1min
ON-ON5min
--ON10min
ONON-20min
---30min


Daylight Sensor

 6
ⅠON50Lux
Ⅱ-Disable

Stand-by Period

78
ONON0S
-ON1min
ON-10min
--+∞

Stand-by DIM Level

910
ONON10%
-ON20%
ON-30%
--50%


7. Remote Control MH10
10m Mounting Height DALI Compact occupancy detectors With daylight harvesting function 5
8. Initialization

When powered on,sensor indicator will turn off after flashing for 10S and will not detect moving signal during this time. After 30S,you can use our MH10 remote or dip switch to adjust detection area,hold time and daylight sensor etc parameter.
