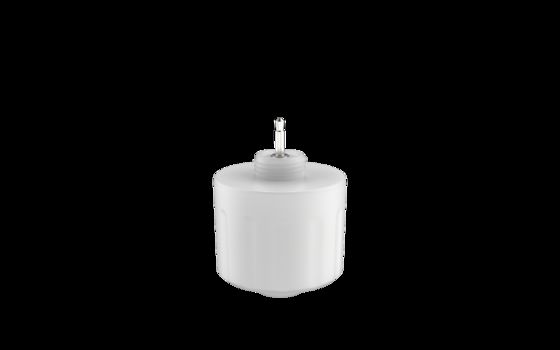

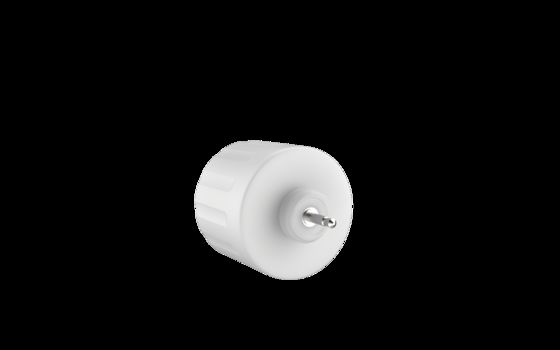

12Vdc PIR Casambi network dimmable sensor for LED Batten, with 12m max mounting height

Place of Origin Shenzhen, China
Brand Name Merrytek
Certification CE
Model Number MC079D IR DIB1
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Bubble bag + Clapboard + Carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 12±1V DC Output Signal 0-10V Dimming Signal
Mounting Height 10m (12m Max) Working Temperature(Ta) -25~55℃
Certificate CE Lifetime 5 Years Warranty@Ta(indoor)
Installation External
Leave a Message
Product Description

【Product Features】


  • 12Vdc Input, suitable for DC systems or LED driver with 12V DC auxiliary power output.
  • 0--10V dimming terminal, 3-step or 2-step is optional, detection area adjustable
  • Mini size PIR detection sensor
  • Indoor maximum mounting height is 12m
  • All sensor parameters can be set by Casambi App setting


【Parameters】


Input

Rated Voltage

12±1V DC

Working Current

35±5mA

Ripple Voltage

<100mVp-p

Output

Output Signal

0-10V dimming signal

Sensor parameters

Detection way

PIR

Sensor sensitivity

Casambi App setting

Daylight Priority

Casambi App setting

Stand-by dim level

Casambi App setting

Detection Area(Radius)

Ceiling mounting height 12m: r≥4m@0.3m/s, r≥3m@1m/s

Mounting Height

10m (12m Max ),see note 1 & 2

Wireless parameters

BLE Module

Casambi  Bluetooth

Working Frequency

2.402-2.480GHz

Transmitting Power

+7dBm(max)

Transmitting Distance

Point to point transmit 25m Max

Fixture ID

32022

Environment

Working Temperature(Ta)

-25~55℃

Storage Temperature

-40℃~80℃, humidity≤85% (Non-condensing)

Certification Standards

Certified

CE

Environmental requirements

Comply with RoHS 2.0, Reach requirement

IP Rating

IP65

Other

Wiring

Earphone socket

Installation

External

Package

Clapboard+box (K=A)

Net Weight

38±3g

Lifetime

5 years warranty@Ta(indoor)

Note:

1. When ambient temperature approaches the human body temperature range (36℃~37℃/96.8~98.6℉), PIR motion detection will significantly weaken or non-responsive.

2. When ambient temperature or LED tray temperature is higher than 55℃/131℉, false triggering may happen, please try to reduce detecting sensitivity to improve. If stays false triggering, the PIR sensor should not suitable to be used in the space.


【Function description】


RON/OFF function

Casambi App setting

R2-step dimming function

Casambi App setting

R3-step dimming function

Casambi App setting

RDaylight harvesting

Casambi App setting

RDaylight priority

Casambi App setting

RNetwork function

Casambi App setting


Product Information


l Dimension (Unit:mm)

12Vdc PIR Casambi network dimmable sensor for LED Batten, with 12m max mounting height 0


l Function

12Vdc PIR Casambi network dimmable sensor for LED Batten, with 12m max mounting height 1


Installation Instruction


1) with preset audio jack base


12Vdc PIR Casambi network dimmable sensor for LED Batten, with 12m max mounting height 2


2) with side mounting extension bracket


12Vdc PIR Casambi network dimmable sensor for LED Batten, with 12m max mounting height 3  12Vdc PIR Casambi network dimmable sensor for LED Batten, with 12m max mounting height 4

12Vdc PIR Casambi network dimmable sensor for LED Batten, with 12m max mounting height 5


3) with AC power adapter MC642V A


12Vdc PIR Casambi network dimmable sensor for LED Batten, with 12m max mounting height 6 12Vdc PIR Casambi network dimmable sensor for LED Batten, with 12m max mounting height 7

12Vdc PIR Casambi network dimmable sensor for LED Batten, with 12m max mounting height 8


Detection Range


12Vdc PIR Casambi network dimmable sensor for LED Batten, with 12m max mounting height 9


【Initialization】


  • After switch on power, sensor will be warmed 45-60s then start to work. During initialization, the sensor is not able to detect movement.


【Default setting】


  Sensitivity: 100%, Hold time:10s, Daylight sensor: Disable, Stand by period: 0s, Stand by DIM level: 10%


【Application Notice】


  • The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring and changing parameters.
  • PIR sensor can’t penetrate any materials, please make sure no obstacle between sensor and moving people/object.
  • Sensor may hard to detect people if wear thick clothes in cold winter.
  • Heat signals will be regarded as moving signals to trigger the sensor. Avoid facing sensor to air condition or other heating source.
  • Sensor is for indoor use only. Outdoor sunlight could affect the detection of sensor.
  • Due to continuous improvement, the contents of this instruction could be changed without prior notice.
  • The dimming performance could be different when work with different 0-10V drivers.
  • The daylight threshold is measured in a sunny environment without shadow and ambient light diffuse reflection. Ambient lux level could be different in different environment, weather, climate, time-of-day and season.
  • Detection distance is related to height of people, mounting height, mounting angle, working environment temperature and etc. When ambient temperature approaches the human body temperature range (36℃~37℃/96.8~98.6℉), PIR motion detection will significantly weaken or non-responsive. When ambient temperature or LED tray temperature is higher than 55℃/131℉, false triggering may happen, please try to reduce detecting sensitivity to improve. If stays false triggering, the PIR sensor should not suitable to be used in the space.
  • Given detecting area is typical value that was measured by 165cm high testers in an indoor open environment.
  • This product have to use with voltage-stabilized DC power supply whose input voltage is stable and ripple factor is low(ripple factor is lower than 100mV; load current is greater than 50mA).
  • When installing in new environment, please install and test at least 5pcs product firstly before mass installation.
  • PIR is a pyroelectric infrared sensor that detects changes in infrared rays. Pls pay attention to the following matters during actual use, such as: detecting heat sources other than the human body, the temperature of the heat source does not change or the heat source does not move, and other related environmental factors and violations of the PIR application principle impact.
  • When detecting heat sources other than the human body due to the following phenomena, the PIR may be falsely triggered.
    1. When small animals enter the detection range
    2. When far-infrared rays from sunlight, car headlights, incandescent lamps, etc. are directly exposed to the sensor
    3. When the temperature in the detection range changes drastically due to warm air, cold air from cold greenhouse equipment, water vapor from humidifiers, etc.

When detecting heat sources due to the following phenomena, the PIR may not trigger
1. When there are substances such as glass and acrylic that block the transmission of far-infrared rays between the sensor and the detection object.
2. The heat source within the detection range hardly moves or moves at high speed.
