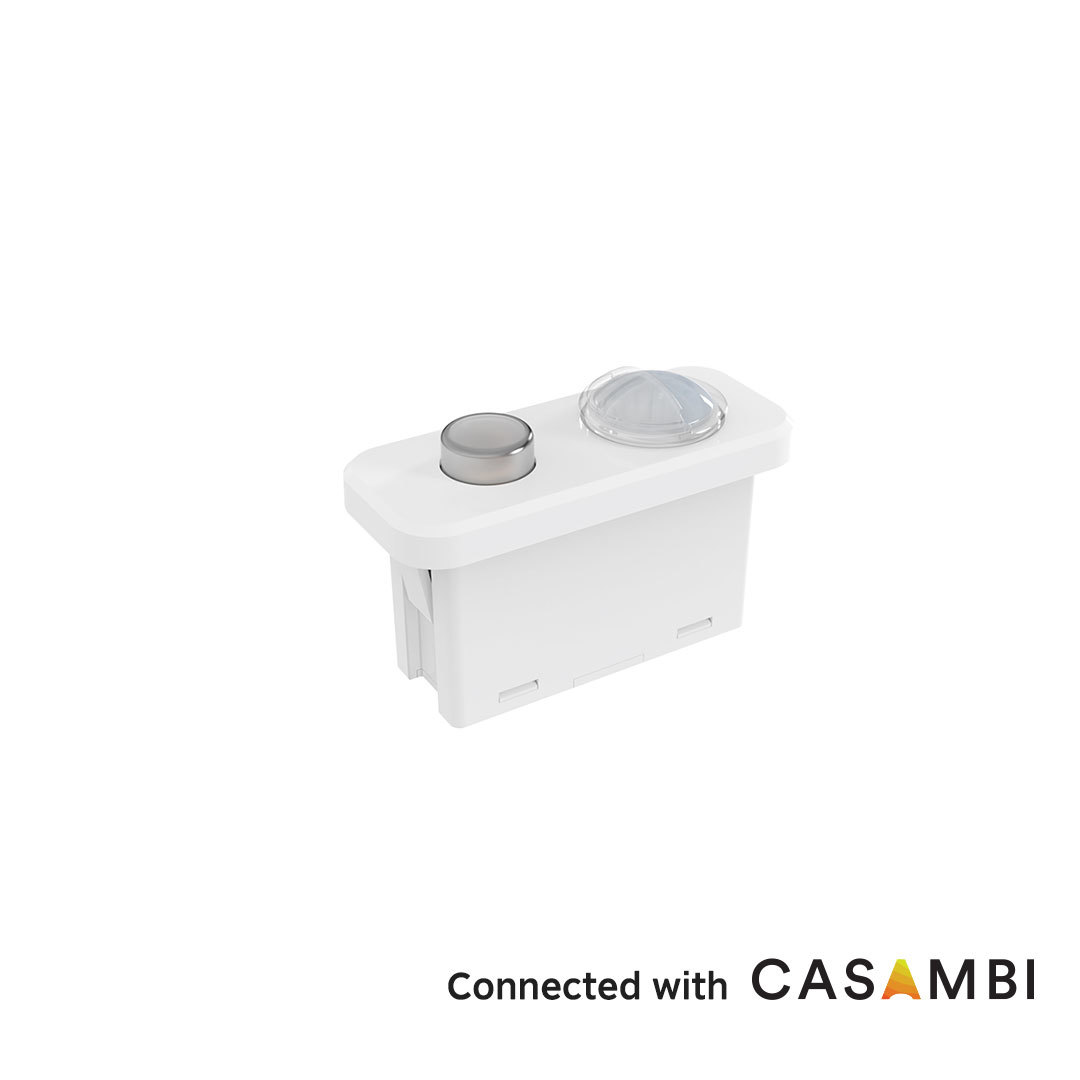

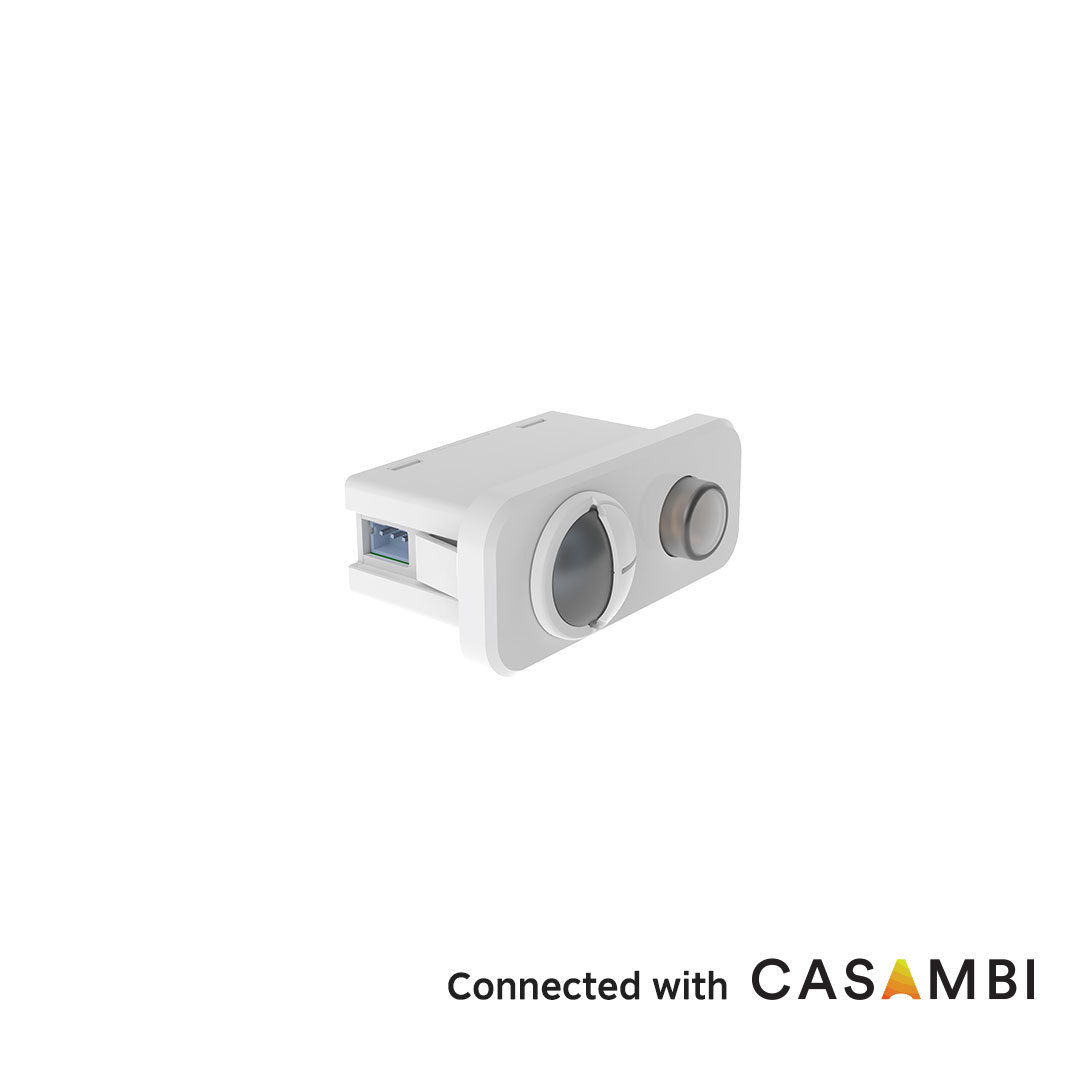

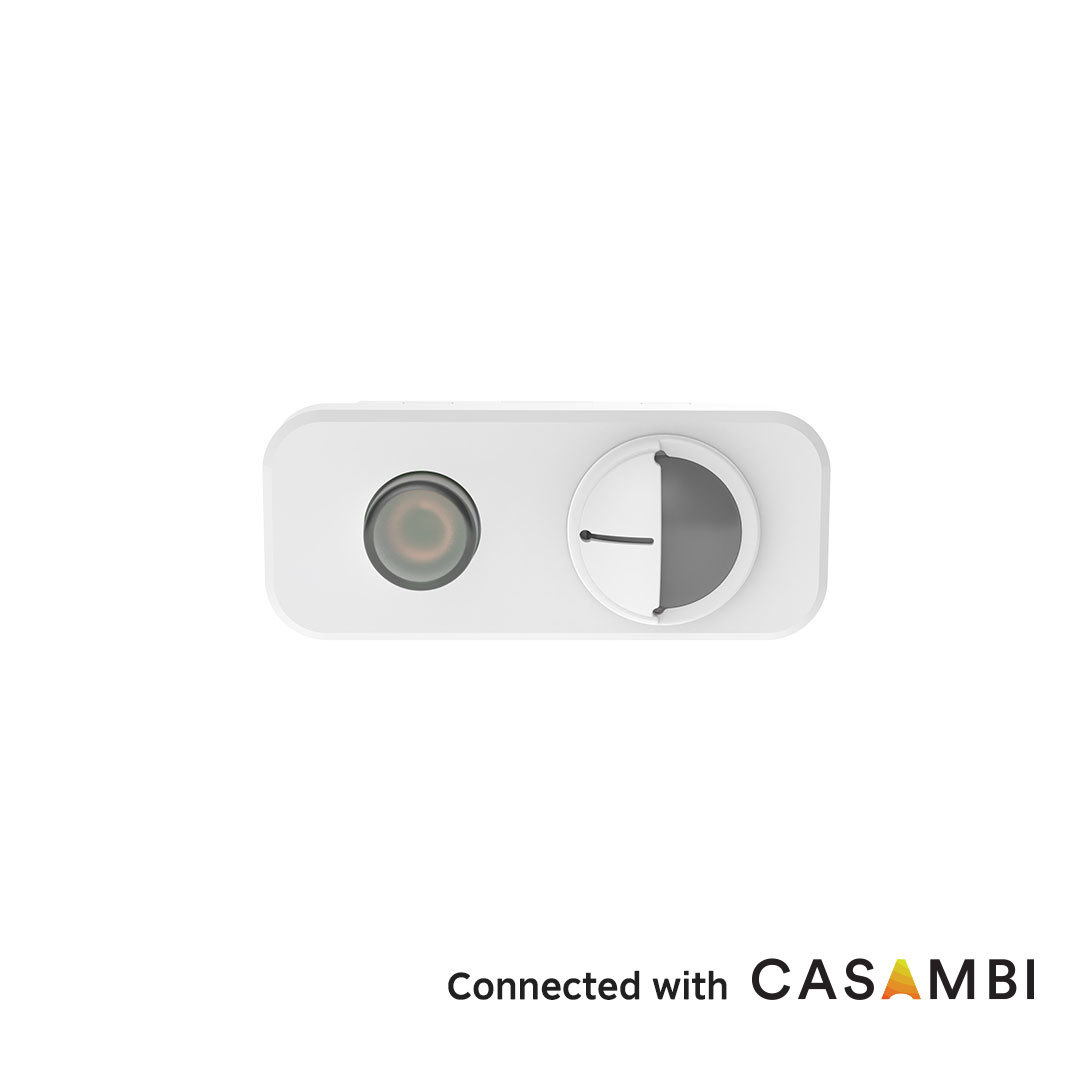

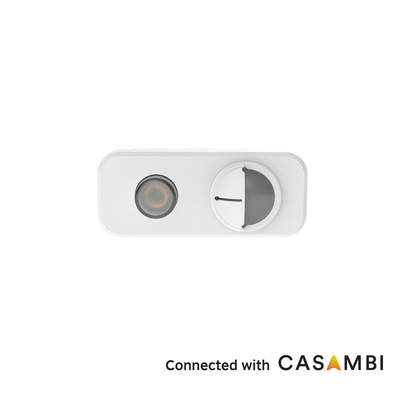

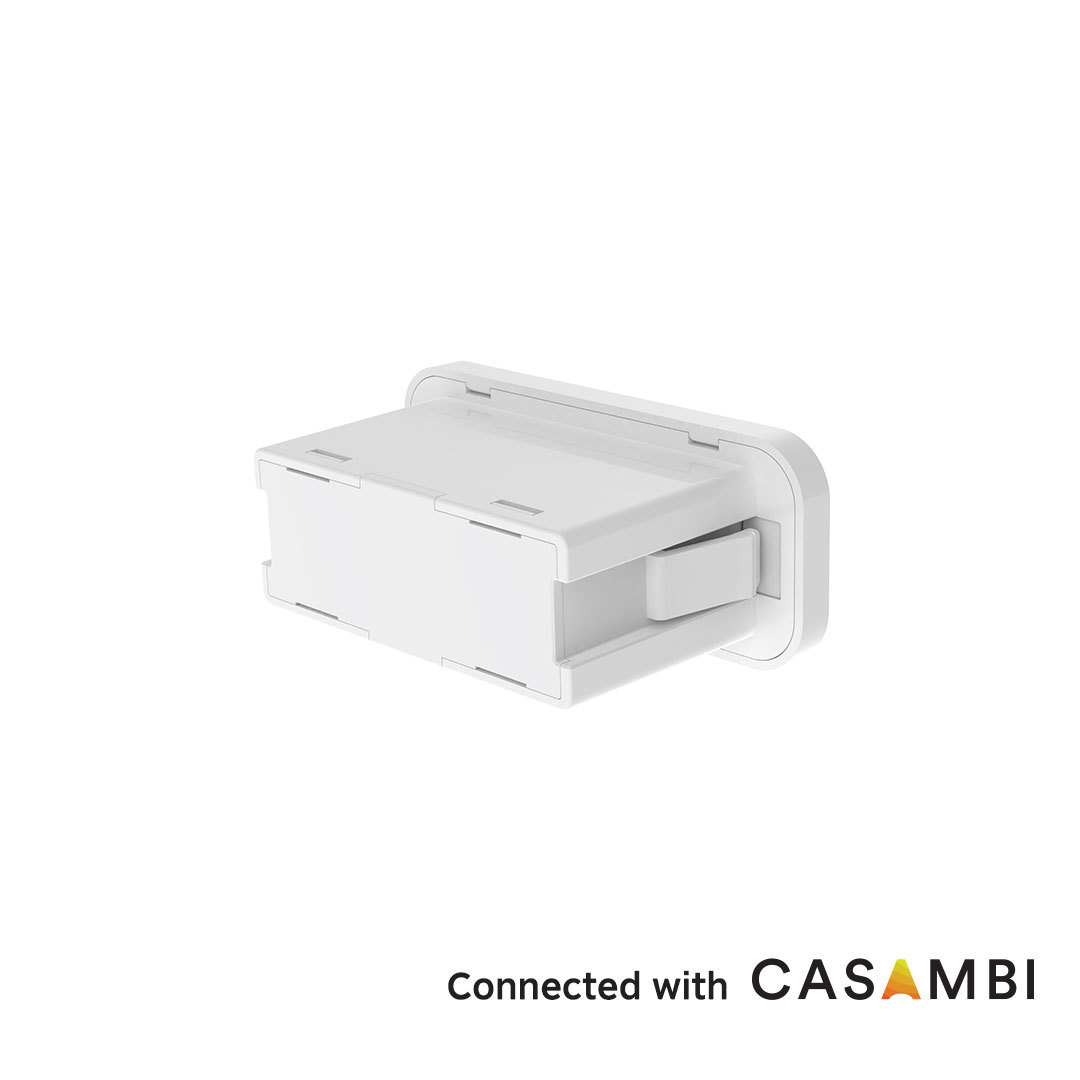

Casambi PIR Motion Sensor, 0-10V Dimming, Suitable For Office Application

  • Casambi PIR Motion Sensor, 0-10V Dimming, Suitable For Office Application
  • Casambi PIR Motion Sensor, 0-10V Dimming, Suitable For Office Application
  • Casambi PIR Motion Sensor, 0-10V Dimming, Suitable For Office Application
  • Casambi PIR Motion Sensor, 0-10V Dimming, Suitable For Office Application
Place of Origin Shenzhen, China
Brand Name Merrytek
Certification CE
Model Number MC182D IR B1
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Clapboard + Carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Voltage 12±1VDC Operating Current 35±5mA
Output Signal 0-10VDC Dimming Signal Mounting Height 3m (4m Max)
Operating Temperature -20℃~+55℃ Certificate CE
Lifetime 5 Years Warranty @Ta (indoor)
Highlight

Casambi wireless motion sensor

,

0-10V dimming motion sensor

,

office PIR motion sensor
Leave a Message
Product Description
Casambi PIR Motion Sensor, 0-10V Dimming, Suitable For Office Application
Product Attributes
Operating Voltage 12±1VDC
Operating current 35±5mA
Output signal 0-10VDC dimming signal
Mounting Height 3m (4m Max)
Operating Temperature -20℃~+55℃
Certificate CE
Lifetime 5 years warranty @Ta (indoor)
Product Features
  • International standard Zhaga BooK20 interface
  • 4 meters maximum installation height
  • 5 years warranty
  • Suitable for Open offices, Individual Offices
  • PIR motion detector, daylight sensor function
  • Casambi Bluetooth module, connected with casmbi App platform
Technical Parameters
Input
Rated voltage 12±1VDC
Operating current 35±5mA
Ripple voltage <100mVp-p
Output
Output signal 0-10VDC dimming signal
Sensor parameters
Detection mode PIR detection
Detection area Casambi APP set
Hold time Casambi APP set
Daylight sensor Casambi APP set
Daylight priority Casambi APP set
Dimming level Casambi APP set
Detection range (radius) Ceiling installation 3m high Motion and minor motion: r≥2.5m
Test condition: 100% sensitivity, 60 ㎡ indoor open space
Installation height Typical 3m (4m Max ), see note 1 & 2
Wireless parameters
BLE Module Casambi Bluetooth
Working Frequency 2.402-2.480GHz
Transmitting Power +7dBm(max)
Transmitting Distance Point to point transmit 25m Max
Fixture ID 40924
Environment
Working temperature(Ta) -20℃-55℃
Storage temperature -40℃~+80℃ Humidity: ≤85% (non-condensing)
Certification standards
Certified CE
Environmental requirements Comply with RoHS 2.0 , Reach requirements
IP Rating IP20
Other
Wiring 3 pin PH2.0 terminal
Installation requirements Zhaga book20 installation
Packaging requirements Clapboard + Carton(K=A)
Net weight 15.8±3g
Lifetime 5 years warranty @Ta (indoor)

Note 1: When ambient temperature approaches the human body temperature range (36℃~37℃/96.8~98.6℉), PIR motion detection will significantly weaken or non-responsive.

Note 2: When ambient temperature or LED tray temperature is higher than 55℃/131℉, false triggering may happen, please try to reduce detecting sensitivity to improve. If stays false triggering, the PIR sensor should not suitable to be used in the space.

Function Description
ON-OFF function Casambi App setting
2-step dimming Casambi App setting
3-step dimming Casambi App setting
Daylight priority Casambi App setting
Daylight harvesting Casambi App setting
Network function Casambi App setting
Product Information

Dimension (units: mm)

Casambi PIR Motion Sensor, 0-10V Dimming, Suitable For Office Application 0

Function

Casambi PIR Motion Sensor, 0-10V Dimming, Suitable For Office Application 1

Wiring

Casambi PIR Motion Sensor, 0-10V Dimming, Suitable For Office Application 2
Installation Instruction
Casambi PIR Motion Sensor, 0-10V Dimming, Suitable For Office Application 3
Detection Range
Casambi PIR Motion Sensor, 0-10V Dimming, Suitable For Office Application 4
Initialization

After switch on power, sensor will be warmed 45-60s then start to work.

Default Setting

Sensitivity: 100%, Hold time: 5s, Daylight sensor: Disable, Stand by period: 0s, Stand by DIM Level: 10%

Application Notice
  • The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring and changing parameters.
  • PIR sensor can't penetrate any materials, please make sure no obstacle between sensor and moving people/object
  • Sensor may hard to detect people if wear thick clothes in cold winter.
  • Heat signals will be regarded as moving signals to trigger the sensor. Avoid facing sensor to air condition or other heating source.
  • Sensor is for indoor use only. Outdoor sunlight could affect the detection of sensor.
  • Due to continuous improvement, the contents of this instruction could be changed without prior notice.
  • The dimming performance could be different when work with different 0-10V drivers.
  • The daylight threshold is measured in a sunny environment without shadow and ambient light diffuse reflection. Ambient lux level could be different in different environment, weather, climate, time-of-day and season.
  • Detection distance is related to height of people, mounting height, mounting angle, working environment temperature and etc. When ambient temperature approaches the human body temperature range (36℃~37℃/96.8~98.6℉), PIR motion detection will significantly weaken or non-responsive. When ambient temperature or LED tray temperature is higher than 55℃/131℉, false triggering may happen, please try to reduce detecting sensitivity to improve. If stays false triggering, the PIR sensor should not suitable to be used in the space.
  • Given detecting area is typical value that was measured by 165cm high testers in an indoor open environment.
  • This product have to use with voltage-stabilized DC power supply whose input voltage is stable and ripple factor is low(ripple factor is lower than 100mV; load current is greater than 25mA).
  • When installing in new environment, please install and test at least 5pcs product firstly before mass installation.
  • PIR is a pyroelectric infrared sensor that detects changes in infrared rays. Pls pay attention to the following matters during actual use, such as: detecting heat sources other than the human body, the temperature of the heat source does not change or the heat source does not move, and other related environmental factors and violations of the PIR application principle impact.
  • When detecting heat sources other than the human body due to the following phenomena, the PIR may be falsely triggered:
    1. When small animals enter the detection range
    2. When far-infrared rays from sunlight, car headlights, incandescent lamps, etc. are directly exposed to the sensor
    3. When the temperature in the detection range changes drastically due to warm air, cold air from cold greenhouse equipment, water vapor from humidifiers, etc.
  • When detecting heat sources due to the following phenomena, the PIR may not trigger:
    1. When there are substances such as glass and acrylic that block the transmission of far-infrared rays between the sensor and the detection object.
    2. The heat source within the detection range hardly moves or moves at high speed.
