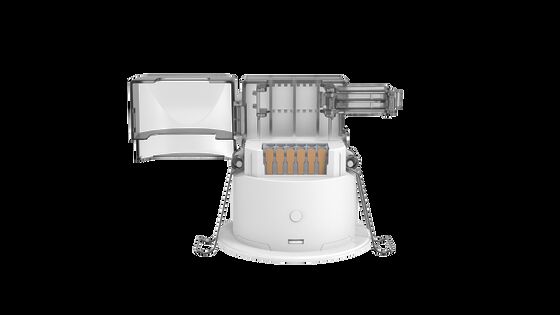

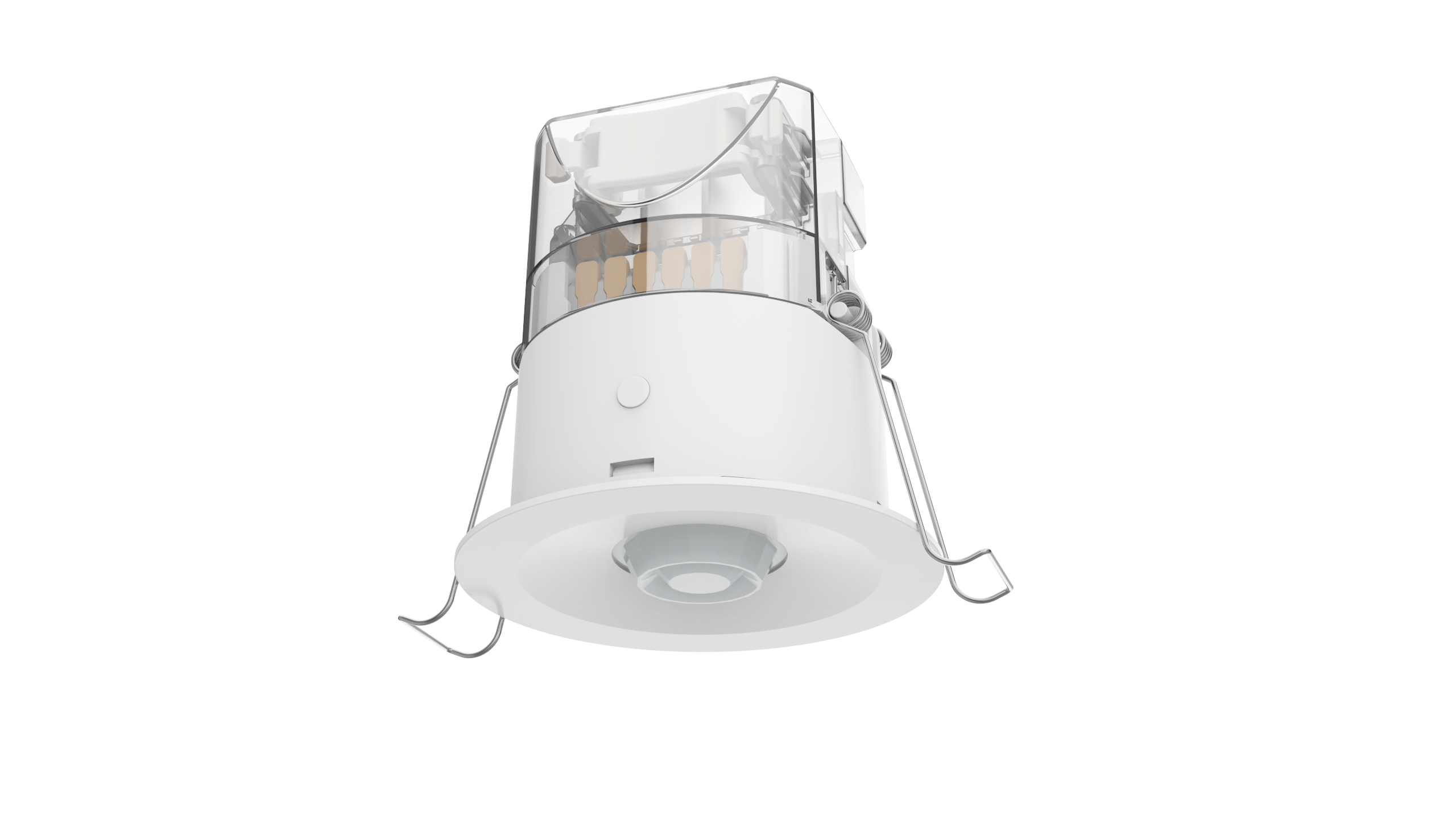

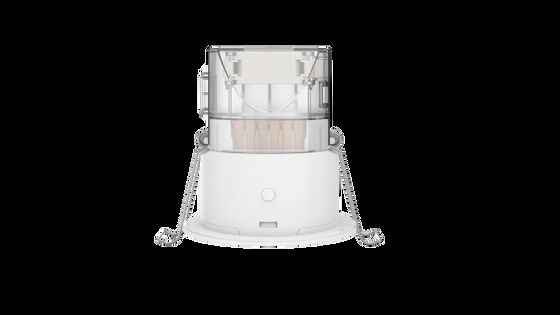

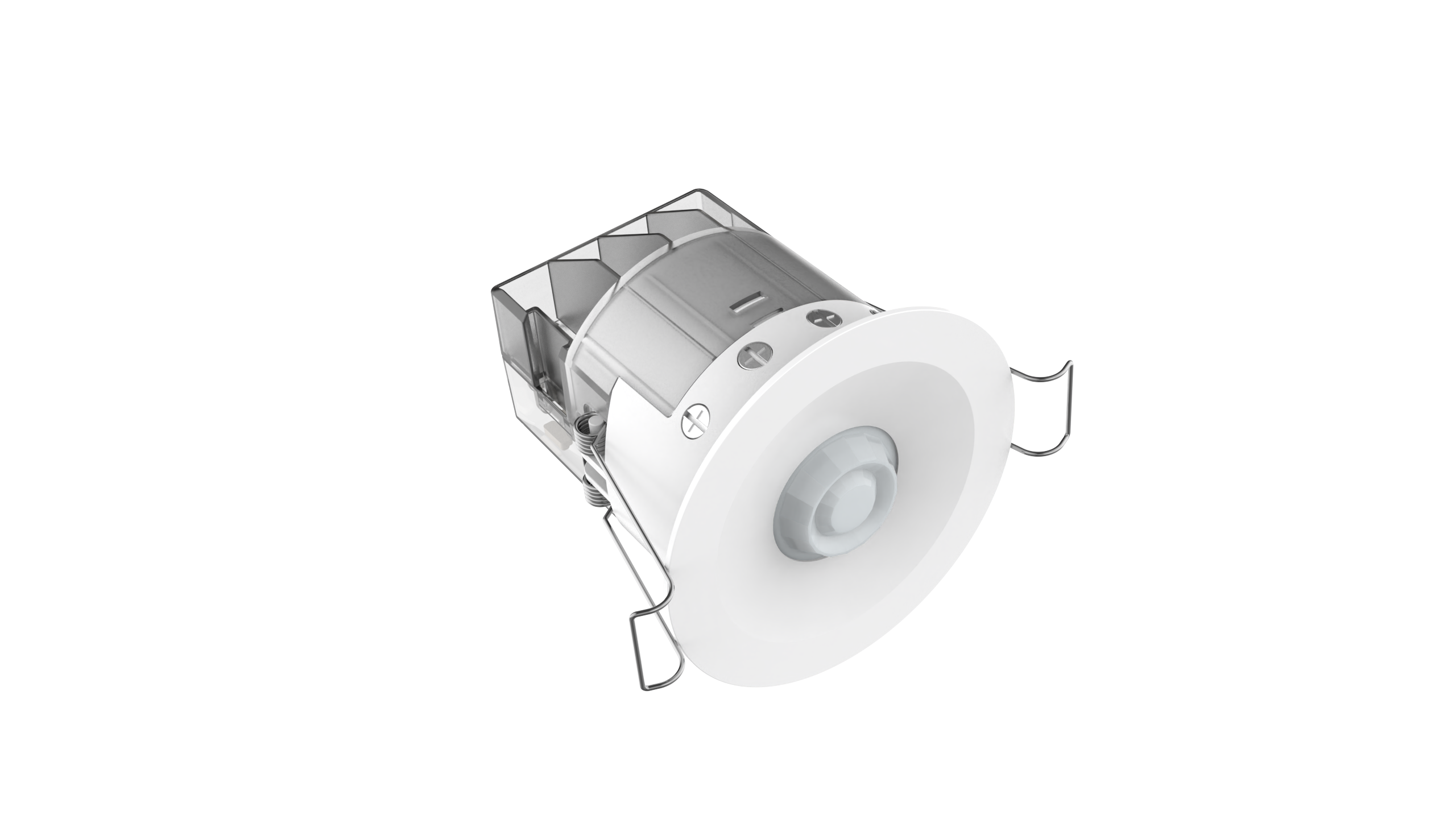

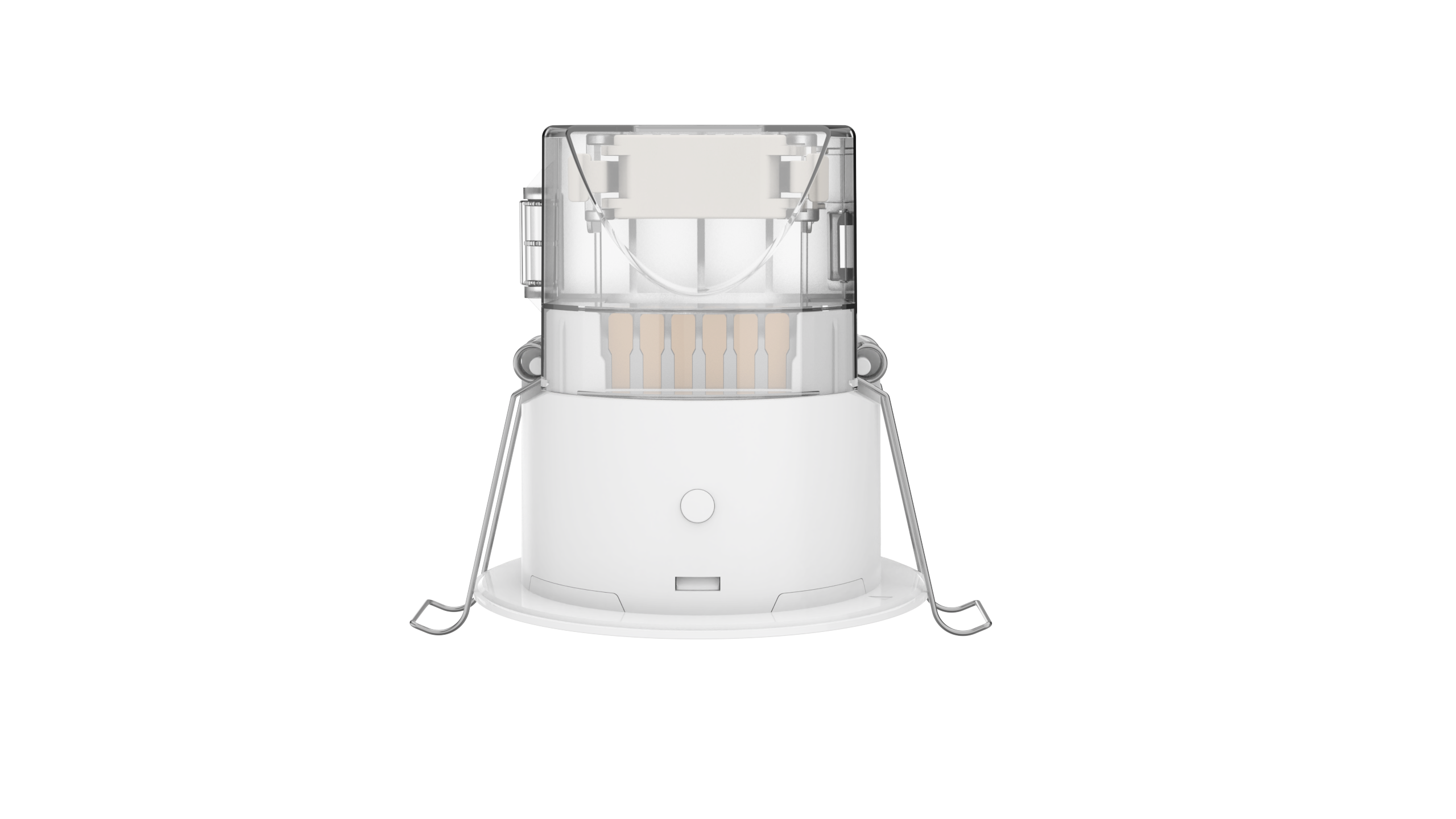

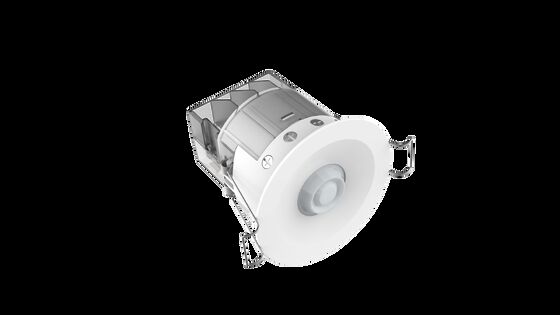

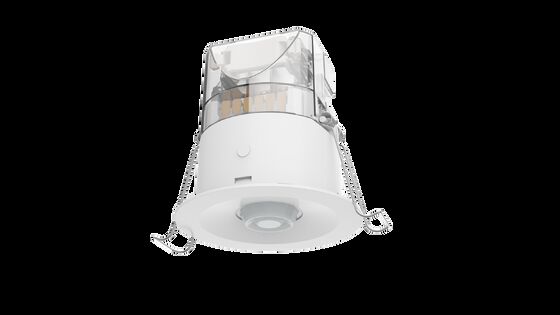

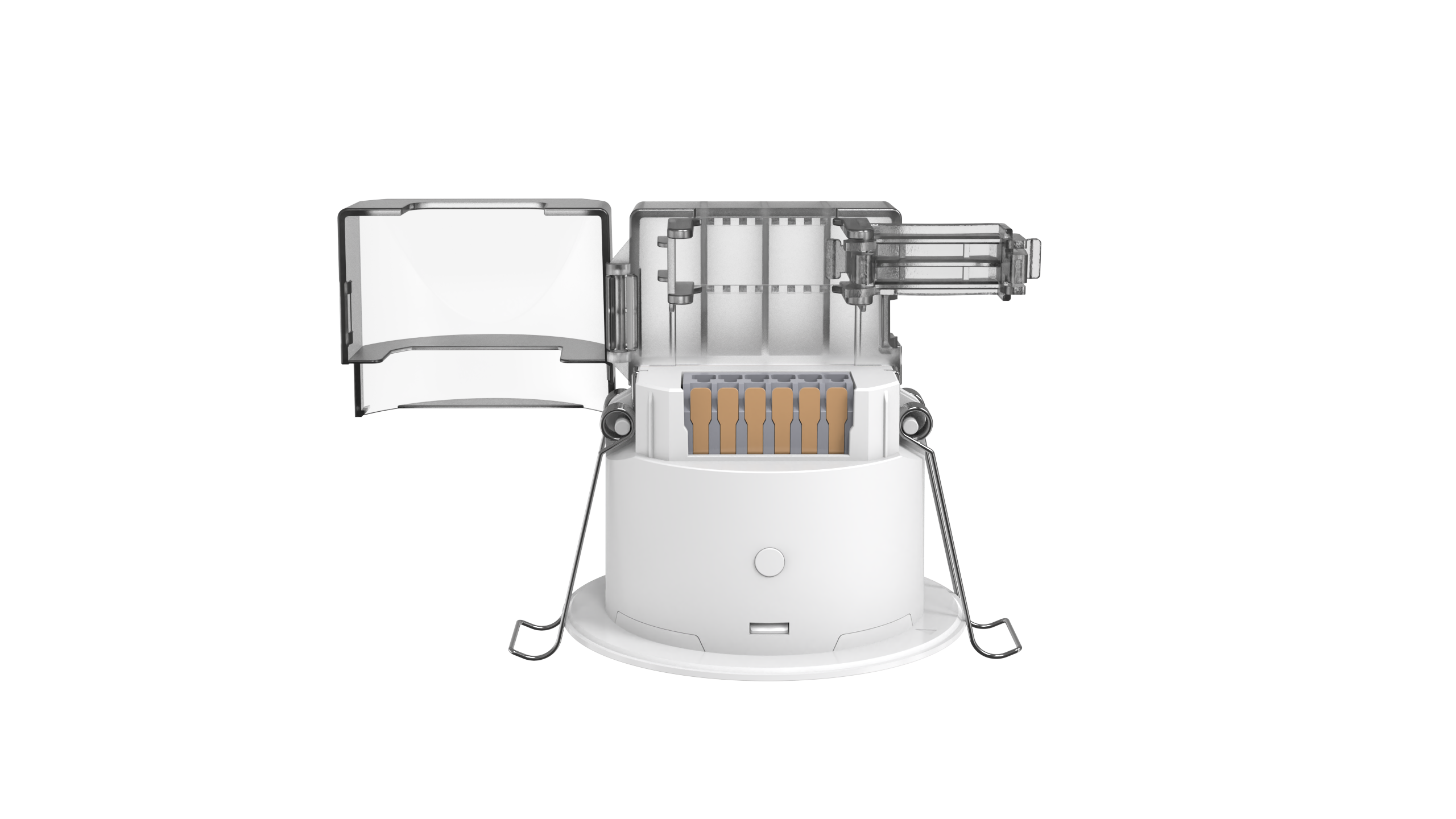

Casambi ready wireless PIR motion and daylight detector with patented lens

  • Casambi ready wireless PIR motion and daylight detector with patented lens
  • Casambi ready wireless PIR motion and daylight detector with patented lens
  • Casambi ready wireless PIR motion and daylight detector with patented lens
  • Casambi ready wireless PIR motion and daylight detector with patented lens
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MSA246S IR B1
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details White box+ White box tags+ Clapboard+ Carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 220-240Vac Working Current 20mA MAX.
Power Consumption ≤0.5W Function Casambi Ready Wireless PIR Motion & Daylight Sensor
Available ON/OFF + Casambi Bluetooth Mounting Height 2.5-4m
Installation Flush-mounted Cut Size Φ63mm
Highlight

Casambi ready wireless motion detector

,

wireless PIR daylight sensor

,

motion detector with patented lens
Leave a Message
Product Description
Casambi Ready Wireless PIR Motion and Daylight Detector with Patented Lens
Casambi ready wireless PIR motion and daylight detector with patented lens
Features
  • Utilizes PIR infrared pyroelectric sensing technology
  • Accurately detects human movement and outputs ON/OFF signals
  • Supports ambient light intensity detection
  • Supports integration with the Casambi Bluetooth system
  • Supports setting the sensing range and delay time via the Casambi APP
  • Maximum motion detection range: 10-14 meters in diameter
  • 16A relay output, with maximum load capacity up to 1200W (resistive load) and 600W (capacitive load)
  • Supports up to 2kV lightning surge protection
  • Recommended for motion detection in corridors and passageways
  • Supports concealed ceiling-mounted installation
Technical Parameters
Input/Output
Input voltage 220-240Vac, 50/60Hz
Rated Voltage 230Vac
Working Current 20mA Max.
Power Consumption ≤0.5W @230Vac
Output signal ON/OFF + Casambi bluetooth
Lightning surge 2KV (L/N, EN61000-4-5)
Max. Surge Capacity 30A (50% Ipeak, twidth=200us, 230Vac full load, cold start)
Load type 1200W (Resistive load); 600W (Inductive Load)
Sensor Parameter
Detection Method PIR + Daylight
Detection Sensitivity Casambi App setting: 100% 75% 50% 25%
Hold Time 2s(fixed)+Linger time set via Casambi
Daylight Sensor Set via the Casambi app under Close loop
Radius detection range (based on 100% sensitivity and 3m mounting) 5-6m (Tangent detecting range, @25℃)
Remote control Available (MH18/MH10)
Mounting height 2.5-4.0m typical value: 3m
Application Environment
Drill hole Φ65mm
Working Temperature -25℃...+50℃ (The lower the temperature, the longer the sensing distance may be; the higher the temperature, the shorter the sensing distance may be)
Storage Temperature 25℃~+50℃, Humidity≤60% (Non-condensing)
Certificate Standard
Certificate Compliant with CE
Environmental Requirement Compliant with RoHS
IP Rating IP20
Warranty 3 years (Limited to the product defective only)
Note: "N/A" means not available.
Dimensions
Casambi ready wireless PIR motion and daylight detector with patented lens 0 Casambi ready wireless PIR motion and daylight detector with patented lens 1
Wiring Diagram
Casambi ready wireless PIR motion and daylight detector with patented lens 2
Remark:
1. LN is the AC input terminal, and L'N is the AC output terminal. Please ensure the correct wiring sequence during connection.
2. The single load requirement for a single sensor output is: resistive load not exceeding 1200W, and inductive load not exceeding 600W. When connecting multiple loads, the surge value and total load must be considered comprehensively. If you only want to consider the power of the connected loads, we recommend connecting an AC contactor or AC solid-state relay to the sensor output to prevent damage to the sensor due to instantaneous overcurrent when one sensor drives multiple loads.
3. The effective range of Bluetooth communication is 40m in an open area. If there are walls blocking the signal, it may affect the quality of Bluetooth communication.
Detection Radiation Pattern
Casambi ready wireless PIR motion and daylight detector with patented lens 3
Detection Signal

The product detects human moving signals, and below is a description of the moving signals:

Moving signal: detect the human significant moving (walking) in the detection area.

Initialization

When powered on, the sensor indicator will turn off after flashing for 35 seconds and will not detect a moving signal during this time. After 35S, you can use the MH18/MH10 remote control or the Casambi App to adjust sensor parameters.

Factory Settings

Detection Sensitivity: 100%
Hold Time: 2s
LED indicator: ON

Installation & Usage Guidelines
  • The sensor should be installed by a professional electrician. Please disconnect the power before installation and wiring.
  • The optimal installation height for this sensor is 3m. It should not be installed outdoors to avoid false triggers due to ambient temperature changes. It should also not be installed in locations sensitive to temperature or airflow changes to prevent false triggers or sensor failure due to excessive temperature.
  • There should be no screens, furniture, large potted plants, or other obstructions within the detection range of this sensor.
  • There should be no reflective objects directly in front of this sensor, as reflected light can cause false triggers.
  • The sensor needs to be kept away from large electromagnetic radiation devices, such as Wi-Fi routers, cameras, and microwave ovens. A distance of at least 2 meters is recommended to prevent electromagnetic interference.
  • The sensing distance of this sensor may fluctuate depending on the installation height and ambient temperature, deviating from the typical value.
Disclaimer
Due to the complexity of product technology and differences in the application environment, it is difficult to guarantee a completely accurate or complete description, so this specification is only for user reference. We will reserve the right to make changes to the product specifications without notifying the user, and we do not make any commitments or guarantees in the legal sense. At the same time, our company encourages users to supplement or modify the contents of our specifications after using our products.

For more information, please get in touch with our sales rep. for more details.
