42W Max Sensor Dim Led Driver, Metal Strip Non-isolated Power Supply, CE & SAA Certified
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | Merrytek |
| Certification | CE, SAA |
| Model Number | MLC40C-NPS |
| Minimum Order Quantity | 100PCS |
| Price | Negotiable |
| Packaging Details | Bubble bag clapboard, carton（K=A） |
| Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Payment Terms | T/T |
| Supply Ability | 10000 pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Voltage | 198-264Vac 50Hz/60Hz | Stand-by Power | ≤0.3W |
|---|---|---|---|
| Surge Current | <22A (100us Half-current) @230Vac | Operating Temperature | -25℃~+50℃ |
| Certificate | CE \ SAA | Lifetime | Five Years Warranty (Ta=50℃@230Vac Full Load) |
| Highlight | 42W LED sensor driver,metal strip power supply,CE certified dimmable driver |
||
Product Description

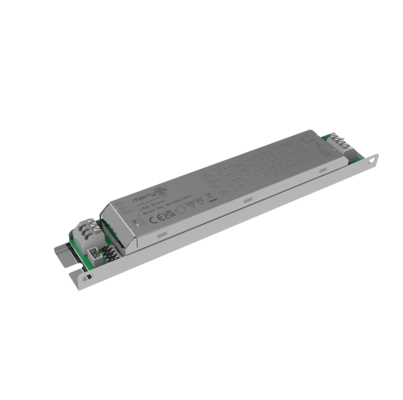

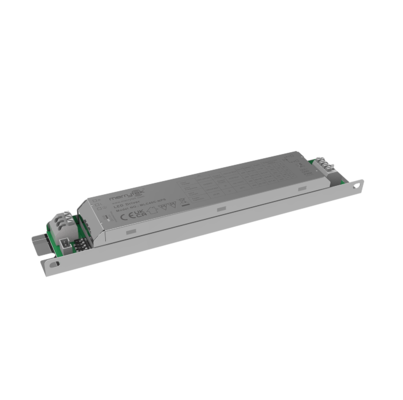

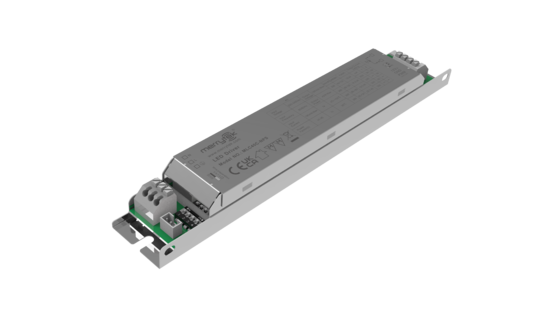

42W Max Sensor Dim Led Driver, Metal Strip Non-isolated Power Supply, CE & SAA Certified
Product Features
- Metal strip non-isolated power supply; flicker-free PWM dimming power supply; with 12V auxiliary power supply; matching different sensor and wireless smart module.
- Great performance, high efficiency, high PF value and low stand-by power; conforming to new ERP standard and complying to CE, SAA certification standards.
- Built-in power supply is suitable for strip lamps; changing parameters by DIP switches.
Parameters
| Product No. | MLC40C-NPS | |
|---|---|---|
| Input | Voltage Range | 198-264Vac 50Hz/60Hz |
| Input Current | 0.19A (@230Vac full load) | |
| Operating Voltage | 220-240Vac 50Hz/60Hz | |
| No-load Power | ≤0.3W | |
| Stand-by Power | ≤0.3W | |
| Power Factor | ≥0.95 (@230Vac full load) | |
| Working Efficiency | 90% (230V Max load) | |
| THD | ≤20%(@230V ac full load) | |
| Leak Current | <0.5mA/240V | |
| Surge Current | <22A (100us half-current) @230Vac | |
| Output | Working model | Constant Current |
| Type of load | LED | |
| Start Time | ≤1S (@230Vac full load) | |
| Ripple Current | ±5% (@230Vac full load, LED full load) | |
| Strobe Frequency Requirement | Flicker free (≤5%) | |
| No-load Output Voltage | 160Vdc Max | |
| Load Power | 42W Max | |
| Load Current | 200mA250mA300mA350mA (set by DIP switches) | |
| Load Output Voltage Range | 65-120Vdc | |
| Connecting Port | PWM | Yes (5V and 3.3V PWM signals are compatible) |
| Port Connecting Method | 3PIN PH2.0 row needles terminal | |
| Auxiliary Power Supply | Voltage | 12V±1V |
| Current | Max100mA | |
| Protection Requirements | Operating Temperature/Humidity | -25℃~+50℃ |
| Storage Temperature/Humidity | -40℃~+80℃ Humidity: 85% (Non-condensing) | |
| Atmospheric Pressure | 86~106KPa | |
| Certificate Standards | Safety Standards(LVD) | EN61347-1,EN61347-2-13 |
| EMC Standards | EN55015,EN61547,EN61000-3-2,EN61000-3-3 | |
| Lightning Surge | LN:1KV | |
| Withstand Voltage | 1500V AC 5mA 60S (input "L N" to output SEC+ SEC-) | |
| Environmental requirement | Compliant to RoHS | |
| Certificate | CE SAA | |
| Output Current Accuracy | ±5% | |
| Wiring | Press terminal, wire diameter: 0.5-1.0mm2 | |
| IP Rating | IP20 | |
| Protection Class | Class II | |
| Installation | Built-in | |
| Dimension | 195*30*21mm | |
| Net Weight | 135g±3g | |
| Warranty | Five years warranty (Ta=50℃@230Vac full load) | |
Product Characteristic Testing
Product Information
- Dimension (units: mm)
- Wiring
- Function
Installation
Dip Switch Setting
| I rated (CC) | 1 | 2 |
|---|---|---|
| 350mA | ON | ON |
| 300mA | ON | - |
| 250mA | - | ON |
| 200mA | - | - |
Initialization
After power-on, it is half bright, and after self-test, it enters the 0-10V / PWM port voltage setting brightness (suspended for full bright).
Application Notice
(1) Please use product according to specifications. Failure may occur if the product is used beyond the service conditions.
(2) Connect loads firstly before turning on the input power; otherwise, load may be damaged.
(3) After the LED drive input power is off, the output end still has residual voltage, which can be maintained for about 3 minutes.
(4) This product is a non-isolated power supply:
- To avoid electric shock, do not operate with power on before connecting load.
- To avoid damaging sensing head, power off is also required before connecting.
