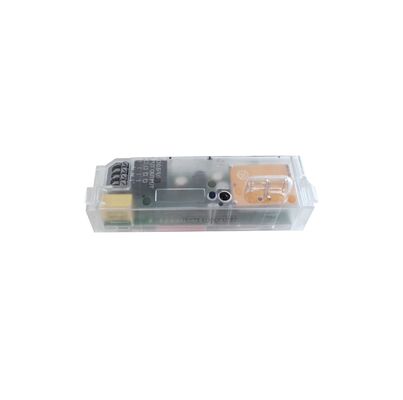

AC ON/OFF Sensor Widely Used For Parking Lot, With Top Side Dip Switch, Screw Installation, Remote Available

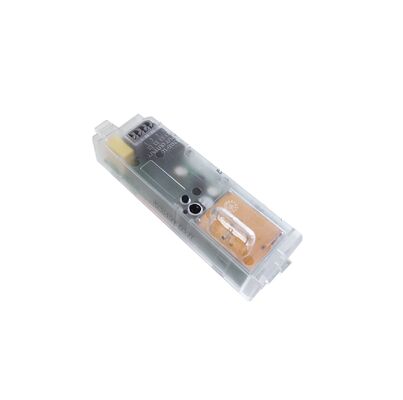

  • AC ON/OFF Sensor Widely Used For Parking Lot, With Top Side Dip Switch, Screw Installation, Remote Available
  • AC ON/OFF Sensor Widely Used For Parking Lot, With Top Side Dip Switch, Screw Installation, Remote Available
Place of Origin Shenzhen, China
Brand Name Merrytek
Certification CE, RED
Model Number MC098S 99 2
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Bubble bag+Clapboard + Carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 4-5 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 220-240Vac 50/60Hz Stand-by Power ≤0.5W
Output Signal ON/OFF Working Frequency 5.8GHz ±75MHz, ISM Band
Installation Height 3m (6m Max) Lifetime 5 Years Warranty@Ta
Leave a Message
Product Description

【Product Features】



  • Patented coupling dipole antenna design and Adaptive Algorithm, which effectively solves the problem of low installation height of columnar antenna sensors and false triggering caused by side-lobe radiation of the antenna when installed in a metal room.
  • Widely used in parking lots and other places, it solves the problem that traditional sensor cannot detect vehicles or the vehicle cannot be detected until it passes directly under the sensor
  • Sensor parameters can be set by remote control and DIP switches, easy to configured.



【Parameters】



Input
Rated Voltage 220-240Vac 50/60Hz
Stand-by Power ≤0.5W
Surge Test 1KV(L/N,EN61000-4-5)
Output
Output Signal ON/OFF
Type of Load Inductive or Resistive
Load Capacity 200W@230Vac(Inductive) ; 400W@230Vac(Resistive)
Max. Surge Capacity

7A relay

20A(50% Ipeak, twidth =200uS, 230Vac full load, cold start);
Sensor Parameters
Working Frequency 5.8 GHz ±75MHz, ISM wave band
Transmitting Power 1mW Max.
Detection Area(Radius)

Ceiling mounting height 3m: r≥4m@0.3m/s, r≥2.5m@1m/s;

Wall mounting height 3m: r≥5m@0.3m/s, r≥4m@1m/s

Test condition: Set 100% sensitivity, open 60㎡ indoor area.
Mounting Height 3m (6m Max)
Hold time

5s/30s/90s/5min/20min/30min (Dial code)

5s/30s/1min/3min/5min/10min/20min/30min (MH10 setup)
Detection Area 100%/75%/50%/25%
Daylight Sensor Normal Daylight

2Lux/10Lux/30Lux//50Lux/Disable

5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/Disable (MH10setup)
Operating Temperature -25℃…+60℃
Storage Temperature -40~80℃ Humidity: ≤85% non-condensing
Certificate Standards
Certified CE, RED
Environmental Requirements Comply with RoHS 2.0 Reach
IP Rating IP20
Other
Remote Model MH10; MH16; MH03
Wiring Press-in Type Terminals, wire diameter: 0.5-0.75mm2
Installation Built-in
Package Bubble bag+Clapboard + Carton(K=A)
Net Weight 40.3±3g
Lifetime 5 years warranty@Ta



【Function】



ON/OFF function Light control Disable or external brightness value is lower than the set value. When the microwave sensors detects the movement of an object, the sensor triggers and enters the light-on state. It maintains the light-on state after a delay and then enters the light-off state.
Two-step dimming function N/A
Three-step dimming function N/A
Daylight harvesting N/A
Daylight priority N/A



【Product Information】



  • Dimension(units: mm)



AC ON/OFF Sensor Widely Used For Parking Lot, With Top Side Dip Switch, Screw Installation, Remote Available 0



  • Function & Wiring

AC ON/OFF Sensor Widely Used For Parking Lot, With Top Side Dip Switch, Screw Installation, Remote Available 1

AC ON/OFF Sensor Widely Used For Parking Lot, With Top Side Dip Switch, Screw Installation, Remote Available 2



【DIP Switch Setting】



Function Daylight Sensor Hold Time Detection Area
Dial code 1 2



3

 Daylight Sensor Threshold 4 5 6 Hold time 7 8 Detection area
Ⅰ ON ON ON 2Lux ON ON ON 5S ON ON 100%
Ⅱ - ON ON 10Lux ON ON - 30S ON - 75%
Ⅲ - ON - 30Lux ON - ON 90S - ON 50%
Ⅳ - - ON 50Lux ON - - 5min - - 25%
Ⅴ - - - Disable - ON ON 20min N/A N/A N/A
Ⅵ N/A N/A N/A N/A - - - 30min N/A N/A N/A



  • Radiation Pattern



AC ON/OFF Sensor Widely Used For Parking Lot, With Top Side Dip Switch, Screw Installation, Remote Available 3



【MH10 Remote Control】



The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switch.

  • Sensitivity area is related to moving speed of objects, size of moving objects, mounting height, mounting angle, working environment, reflecting materials and etc.. Given detecting area is typical value that was measured by 165cm/65kg testers in an indoor open environment.
  • The detection area of the microwave sensor when installed on the wall will be greatly increased compared to when installed on the ceiling. If adopts wall ceiling, please reduce the sensitivity or contact our company to confirm the usage settings. The daylight thresholds are measured on a sunny day without shadow and in an ambient light diffuse reflection status. Different environment and climate cause different brightness values that daylight sensor measures.
  • Sensor parameters may need to be reconfigured in different installation environments, please refer to the following instructions or contact the manufacturer.
  • Sensor is for indoor use only. The waterproof effect for outdoor or half-outdoor use will be affected. Wind, rain, and moving objects may cause false triggering.
  • The installation height of the sensor product cannot exceed 6 meters, and the optimal height is 3 meters. The distance between the two sensors should be greater than 3m.
  • When the sensor is installed in a metal lamp, on a metal reflective surface, or in a small closed environment, the microwave will be reflected multiple times and cause false triggering. Please reduce the sensitivity of the sensor or contact the manufacturer for technical support.
  • Please make sure that there are no moving signals such as fans, DC motors, sewer pipes, air outlets, etc. around the sensor, otherwise the sensor may cause false triggering.
  • Microwaves cannot penetrate metal. Do not place product in a closed or a half-closed metal lamp. Neither metal nor glass is not allowed to cover above the product.
