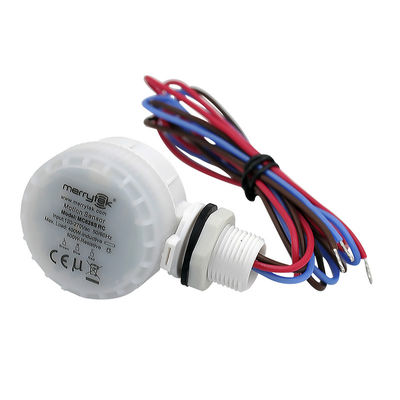

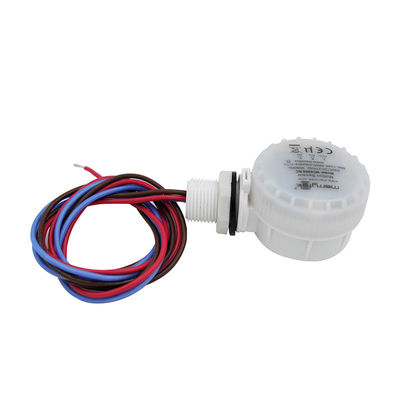

IP65 Waterproof Microwave Motion Sensor ON / OFF Function For LED Batten
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | Merrytek |
| Certification | CE |
| Model Number | MC628S RC |
| Minimum Order Quantity | 100pcs |
| Price | Negotiable |
| Packaging Details | White paper box+cartons |
| Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Payment Terms | T/T |
| Supply Ability | 10000 pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operating Voltage Rage | 108-305VAC 50/60Hz | Working Mode | ON/OFF |
|---|---|---|---|
| Transmitting Power | 0.5mW Max. | Mounting Height | 12m Max. |
| Operating Temperature | -35℃…+55℃ | IP Rating | IP65 |
| Net Weight | 80g | Lifetime | 5 Years Warranty |
| Highlight | LED batten Microwave Motion Sensor,ON / OFF Microwave Motion Sensor,IP65 Waterproof Microwave Motion Sensor |
||
Product Description
IP65 Waterproof Microwave Motion Sensor ON / OFF function for LED batten
For more details, pls refer to as follows:
MC628S RC spec (USA,Euro) 2022.03.22.pdf
【Product Feature】
1) Operating voltage 120~277V AC.
2) Mounting height is 12m Max. Supports high-sensitivity and low-sensitivity. modes (for metal ceilings, metal reflector mounting environments).
4) M20 side mount, fit for linear highbay and vapor.
5) Compact design, all parameters can be set by remote control MH10.
6) 5 years warranty.
【Parameter】
| Input | Operating Voltage Rage | 108-305VAC 50/60Hz |
| Rated Voltage | 120-277VAC 50/60Hz | |
| Stand-by Power | <1W | |
| Surge Test | L N: 1kV | |
| Output | Working Mode | On-off |
| Type of Load | Resistive & inductive | |
| Load Capacity | 400w – inductive or 800w - resistive | |
| Max. Surge Capacity | 30A(Measured at 50% Ipeak,twidth=500us @230Vac Cold start)or 60A(Measured at 50% Ipeak,twidth=200us @230Vac Cold start) | |
| Sensor Parameters | Operating Frequency | 5.8 GHz ±75 MHz,ISM band |
| Transmitting power | 0.5mW Max. | |
| Hold time | 5s/30s/1min/3min/5min/10min/20min/30min | |
| Detection Area) | 25%/50%/75%/100% | |
| Daylight Sensor | Daylight threshold:5lux/15lux/30lux/50lux/100lux/150lux/Disable(no shadow or direct light to sensor) | |
| Detecting Range | See detection pattern | |
| Mounting Height | 12m Max. | |
| Detection Angle | 150°(wall mount), 360°(ceiling mount) | |
| Operating Environment | Operating Temperature | -35℃…+55℃ |
| Storage Temperature | -40℃…+80℃ humidity:10%-95% (non-condensing) | |
| Certificate Standards | Safety standards |
IEC60669-2-1, IEC60669-1 |
| EMC standards |
EN55015, EN61000-3-2, EN61000-3-3, EN61547 |
|
| Environment Request | Compliant to RoHS | |
| Certificate | CE | |
| Others | Wiring | UL1015,2*18AWG,exposed line length 810mm |
| Wiring color | L(Black), N(White), L’(Red) | |
| IP Rating | IP65 | |
| Protection Class | Class II | |
| Installation | M20 side mount | |
| Dimension | See dimension | |
| Package | White paper box+cartons | |
| Net Weight | 80g | |
| Lifetime | 5 years warranty@Ta 230V full load | |
|
Note 1. “N/A”means not available. |
||
【Function】
On/OFF Function (stand-by period be set to “0”s)
【Dimension (mm)】
【Wiring】
*The sensor is designed to connect one load only. Connect more than one load may damage the sensor.
【Function Diagram】
【Radiation Pattern】
Ceiling mounting
|
Ceiling mounted height: 3m Sensitivity: 100%/75%/50%/25% |
Ceiling mounted height: 6m Sensitivity: 100%/75%/50%/25% |
Ceiling mounted height: 9m Sensitivity: 100%/75%/50%/25% |
Ceiling mounted height: 12m Sensitivity: 100%/75%/50% |
|
Normal moving (Speed:1m/s) |
Normal moving (Speed:1m/s) |
Normal moving (Speed:1m/s) |
Normal moving (Speed:1m/s) |
|
Slow moving (Speed: 0.3m/s) |
Slow moving (Speed: 0.3m/s) |
Slow moving (Speed: 0.3m/s) |
Slow moving (Speed: 0.3m/s)
|
*Only 100%/75%/50% detection sensitivity is workable when installed at 12m mounting height. 25% sensitivity is not able to detect motion signal.
【Remote Control】
【Initialization】
On/Off function: After power on, the sensor automatically turns on light at 100% brightness. After 10sec, it turns off the light. During the initialization, the sensor is not able to detect movement.
【Factory setting】
Detection area:75%, Hold time:5s , Daylight Sensor: Disable
【Application Notice】
(1) The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring and changing parameters.
(2) Microwaves cannot penetrate metal. Do not place the product in a closed metal lamp or a half-closed metal lamp and metal or glass are not allowed to cover above the product. If antenna needs to pass through the metal plate, please ensure that the top of the sensor is close to the metal plate.
(3) The distance between any inductive sensors should be greater than three meters. Keep sensor away from switches, routers and other wireless devices to avoid radio interference, more than three meters.
(4) Vibration signals will be regarded as moving signals to trigger the sensor. Avoid using objects that vibrate for a long time around the sensor, such as large metal equipment, pipes, air conditioning outlets, exhaust vents, smoke exhaust machine ports, shaking fans, etc. Pets in detecting area may trigger sensing.
(5) Sensor is for indoor use only. The waterproof effect for outdoor use will be affected. Wind, rain, and moving objects around will cause false triggering. When the sensor is installed in a metal lamp, metal reflective surface, or a narrow enclosed environment, the microwave will be reflected repeatedly and cause false triggering. Please reduce the sensitivity or contact the manufacturer for technical support.
(6) Due to continuous improvement, the contents of this instruction could be changed without prior notice.
(7) The daylight threshold is measured in a sunny environment without shadow and ambient light diffuse reflection. Ambient lux level could be different in different environment, weather, climate, time-of-day and season.
(8) Sensitivity distance is related to moving speed of objects, size of moving objects, mounting height, mounting angle, working environment, reflecting materials and etc.
(9) Given detecting area is typical value that was measured by 165cm high testers in an indoor open environment.
(10) When installing in new environment, please install and test at least 5pcs product firstly before mass installation.
