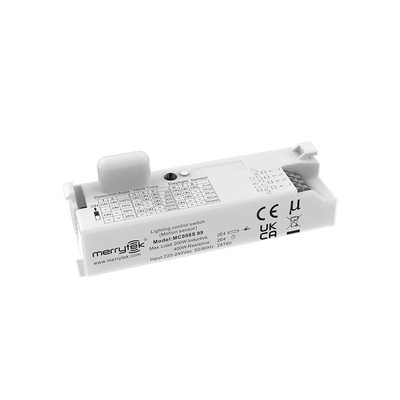

MC098S 99 On Off Function Sensor With Antithetical Dipoles Antenna / Adaptive Algorithm

  • MC098S 99 On Off Function Sensor With Antithetical Dipoles Antenna / Adaptive Algorithm
Place of Origin China
Brand Name Merrytek
Certification CE & RED & TUV
Model Number MC098S 99
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details Bubble bag+Clapboard + Carton（K=A）
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 20,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 220-240V AC, 50Hz/60Hz Operating Frequency 5.8 GHz ±75MHz, ISM Wave Band
Working Mode ON/OFF Function Mounting Height 3m (6m Max)
Wiring Press-in Type Terminals, Wire Diameter: 0.75-1.5mm2 Installation Built-in
Lifetime 5 Years Warranty @Ta 230V Full Load
Highlight

5.8 GHz On Off Function Sensor

,

ISM wave On Off Function Sensor

,

On Off Function motion Sensor
Leave a Message
Product Description

MC098S 99---ON/OFF Function Sensor With Patented Antithetical Dipoles Antenna Design And Adaptive Algorithm

MC098S 99 series 2023.11.01(1).pdf





1. Features

  • Patented antithetical dipoles antenna design and Adaptive Algorithm, which effectively solves the problem of low installation height of columnar antenna sensors and false triggering caused by side-lobe radiation of the antenna when installed in a metal room.
  • Widely used in parking lots and other places, it solves the problem that traditional sensor cannot detect vehicles or the vehicle cannot be detected until it passes directly under the sensor.
  • Sensor parameters can be set by remote control and DIP switches, easy to configured. Support 6m Max. Mounting height .








2. Dimension (mm)


MC098S 99 On Off Function Sensor With Antithetical Dipoles Antenna / Adaptive Algorithm 0



  3. Radiation Pattern

                                               MC098S 99 On Off Function Sensor With Antithetical Dipoles Antenna / Adaptive Algorithm 1

4. Wiring & Function

                                                                     MC098S 99 On Off Function Sensor With Antithetical Dipoles Antenna / Adaptive Algorithm 2



5. DIP Switch Setting





MC098S 99 On Off Function Sensor With Antithetical Dipoles Antenna / Adaptive Algorithm 3
