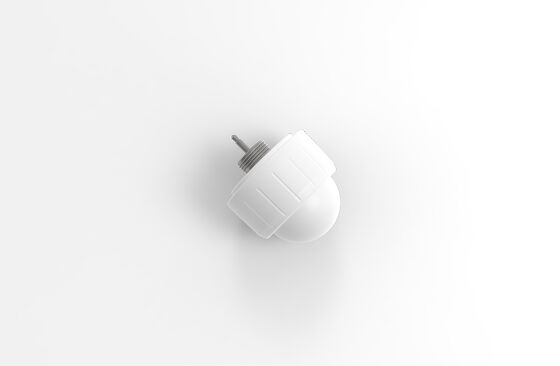

12m High Mounting PIR Dimmable Motion Sensor, IP65 Rating, Daylight Priority Function

  • 12m High Mounting PIR Dimmable Motion Sensor, IP65 Rating, Daylight Priority Function
  • 12m High Mounting PIR Dimmable Motion Sensor, IP65 Rating, Daylight Priority Function
  • 12m High Mounting PIR Dimmable Motion Sensor, IP65 Rating, Daylight Priority Function
Place of Origin Shenzhen, China
Brand Name Merrytek
Certification UL 8750(Pending)
Model Number MC079D RC IR
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Clapboard+carton (K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 4-5 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Voltage 12V DC Ripple Voltage <100mVp-p
Detection Mode PIR Detection Mounting Height Typical 10m (12m Max )
IP Rating IP65 Lifetime 3 Years Warranty@Ta
Highlight

12m PIR motion sensor with IP65

,

dimmable motion sensor daylight priority

,

high mounting PIR sensor IP65
Leave a Message
Product Description
12m High Mounting PIR Dimmable Motion Sensor
Product Overview

This high-performance PIR motion sensor features a 12-meter maximum mounting height, IP65 weatherproof rating, and daylight priority function for optimal energy efficiency in industrial and commercial applications.

Key Features
  • High mounting PIR sensor design
  • Maximum mounting height of 12 meters
  • IP65-rated enclosure for dust and water resistance
  • 3.5mm earphone connector receptacle
  • Optional side mount bracket with 1/2 inch hole
Technical Specifications
Input Parameters
Input Voltage12±1VDC
  • Operating Voltage: 12V DC
  • Ripple Voltage: <100mVp-p
    • 0-10VDC Dimming SignalYes
    Sensor Parameters
    Detection ModePIR detection
    Operating Functions
    • Detection Area: 100%/75%/50%/25%
      • Hold Time5S/30S/1min/3min/5min/10min/20min/30min
    • Stand-by Period: 0s/10S/1min/3min/5min/10min/30min/+∞
    • Daylight Sensor: 5/15/30/50/100/150lux/Disable
    • Stand-by DIM Level: 10%, 20%, 30%, 50%
    • Detection Radius: 2-4m (indoor, sensitivity 100%, no direct sunlight to sensor)
    • Mounting Height: Typical 10m (12m Max)
    Operating Environment
    Operating Temperature0~35℃
  • Storage Temperature: -20℃~+80℃ Humidity: 10%-95% (non-condensing)
    • Certifications & Standards
    CertificateUL 8750 (Pending)
  • Environmental Requirement: Compliant to RoHS
    • IP RatingIP65
    Additional Information
    Wiring MethodDC headphone stand (3.5mm)
  • Installation: Mount center or side of highbay
  • Package: Clapboard+carton (K=A)
  • Net Weight: 80g
  • Lifetime: 3 years warranty
    • Important Note: When ambient temperature exceeds 33℃, detection performance will be affected.
    Application Guidelines
    • Professional installation by qualified electrician required
    • PIR sensors cannot penetrate materials - ensure clear line of sight
    • Performance may be reduced in cold environments with thick clothing
    • Avoid positioning sensor towards heat sources like air conditioners
    • Designed for indoor use only - outdoor sunlight affects detection
    • Dimming performance varies with different 0-10V drivers
