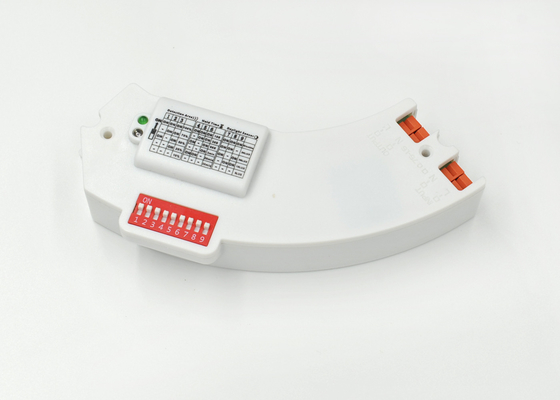

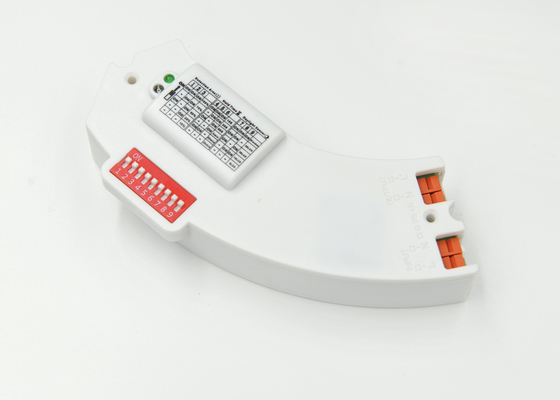

Balcony Light Microwave Motion Sensor 5.8GHz ±75MHz With ISM Wave Band
| Place of Origin | China |
|---|---|
| Brand Name | Merrytek |
| Certification | CE ,R&TTE |
| Model Number | MC005S |
| Minimum Order Quantity | 100pcs |
| Price | Negotiation |
| Packaging Details | Packed in bubble bags firstly, and then reinforced with carton for outer packing |
| Delivery Time | 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks |
| Payment Terms | T/T, Western Union |
| Supply Ability | 20,000pcs per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Microwave Motion Sensor | Rated Load | 400W (inductive), 1000W (resistive) |
|---|---|---|---|
| Operating Voltage | 220-240Vac,50HZ | Detection | Max(D×H):16m×8m |
| HF System | 5.8GHz ±75MHz, ISM Wave Band | Size (L×W×H) | 92x 52 X 25.5 Mm |
| Approval | CE ,R&TTE | Operation Temperature | -20℃~60℃ |
| Function | On-off Control | IP Rating | IP 20 |
| Highlight | microwave sensors for lighting,rf motion sensor,Balcony Light Microwave Motion Sensor |
||
Product Description
220-240Vac Input 5.8G ON-OFF Microwave Motion Sensor MC005S with CE and R&TTE approval
Description
1. Automatic switching based on motion and ambient light level.
2. Special housing design for LED ceiling light.
3. Zero-crossing point operation helps protect the sensor against in-rush current..
4. Automatic daylight learning.
5. 5.8GHz high frequency microwave(C-Band license-free operation)

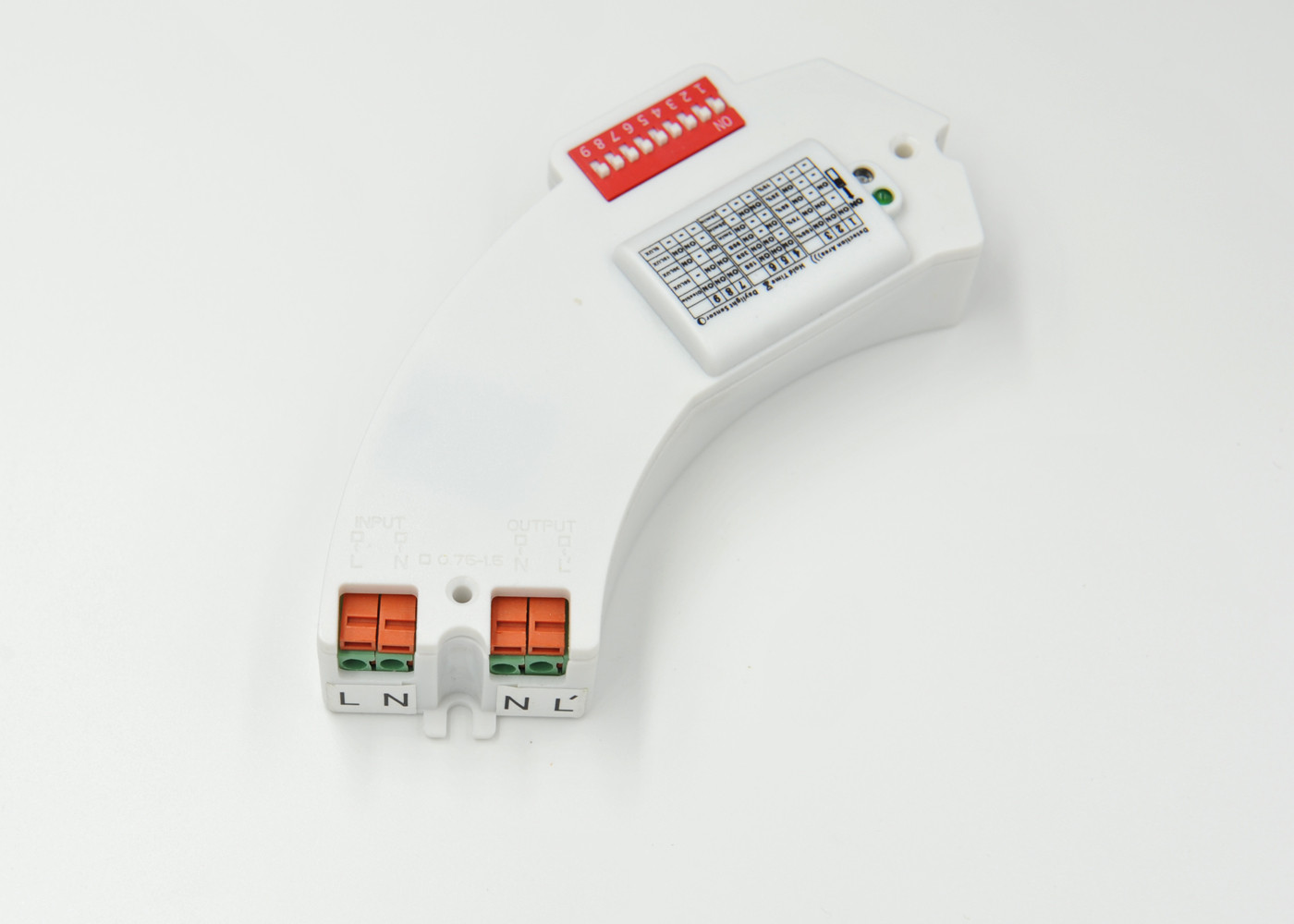

6. 4-pole press-in terminal (L, N, N,L′),easy assembly.
7. Detection area, time delay and daylight threshold can be precisely set via DIP switch.
8. MC005S is an innovative and active motion detector with HF system 5.8GHz. It automatically switches on/off light based on motion and ambient light level. The high quality relay is particularly suitable for commercial use with switching power up to 400W for LEDs and fluorescent lamps and up to 800W for incandescent lamps.
Function:
ON-OFF function
Detection Pattern:
Specifications:
|
Operating voltage |
220-240Vac, 50Hz |
|
Rated load |
Inductive :400W,Resistive : 800W |
|
HF system |
5.8GHz±75MHz, ISM wave band |
|
Power consumption |
≤0.5W(standby), <1W(operation) |
|
Transmitting power |
<0.5mW |
|
Detection zone Max.(D x H) |
12m x 6m |
|
Motion detection |
0.5~3m/s |
|
Detection angle |
150°(wall installation) 360°(ceiling installation) |
|
IP rating |
IP20 |
|
Operation temperature |
-20℃~60℃ |
|
Hold time |
10s / 30s / 90s / 3min / 20min / 30min |
|
Detection sensitivity |
10% / 25% / 50% / 75% / 100% |
|
Daylight sensor |
5lux / 10lux / 30lux / 50lux / Disable |
|
Life time |
50,000 hours |
|
Guaranty |
5 years |
Wiring:
Applications:
Stairwell, Corridor, Balcony, Pathway, etc
