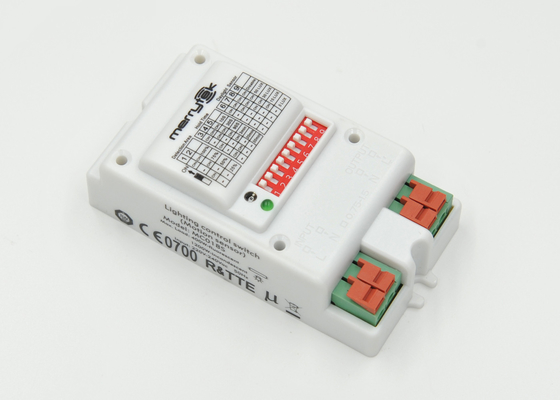

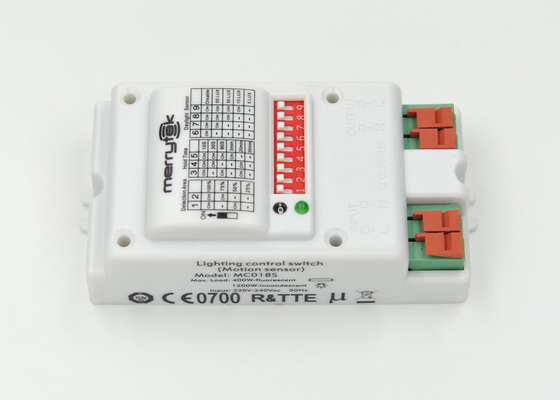

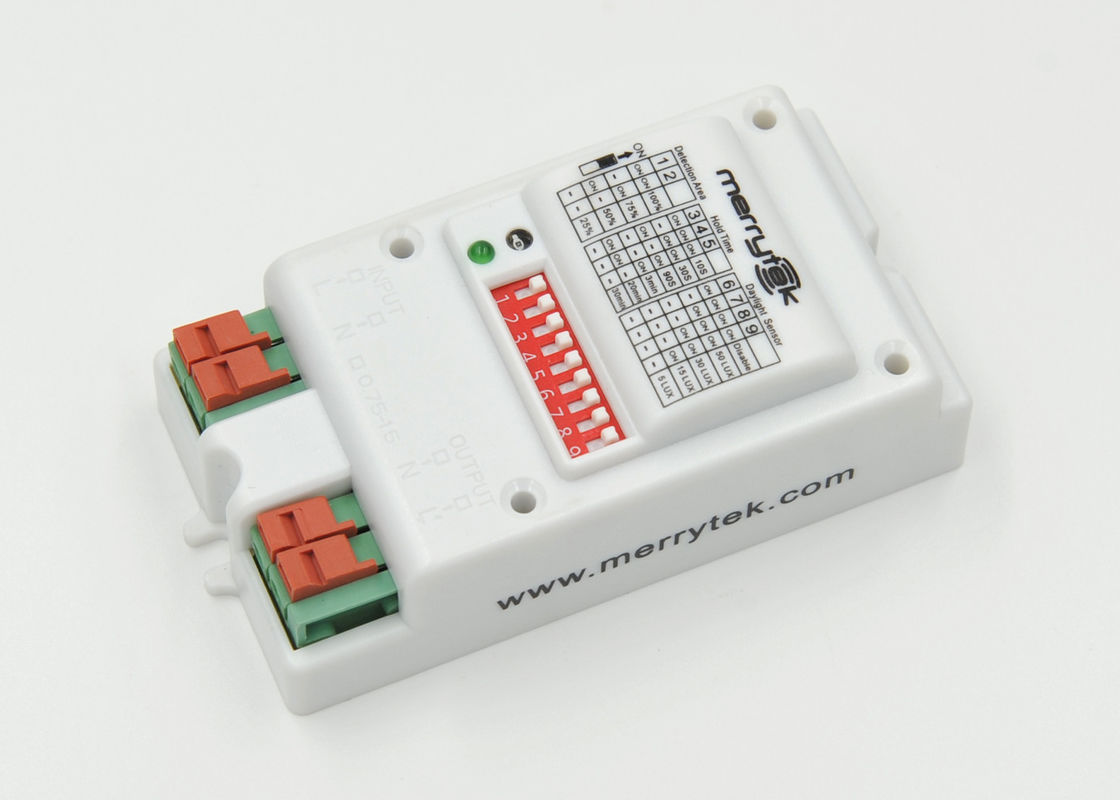

High Frequency ISM Wave Band 400W Microwave Indoor Motion Sensors for Lights

Basic Information
Place of Origin: China
Brand Name: Merrytek
Certification: TUV ,CE, R&TTE
Model Number: MC018S
Minimum Order Quantity: 100pcs
Price: Negotiation
Packaging Details: Packed in bubble bags firstly, and then reinforced with carton for outer packing
Delivery Time: 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms: T/T, Western Union
Supply Ability: 20,000pcs per Month
Detail Information
Operating Voltage: 220-240Vac,50HZ Product Name: Microwave Motion Sensor
Detection: Max(D×H):12m×9m HF System: 5.8GHz ±75MHz, ISM Wave Band
Rated Load: 200W(inductive) 400W (resistive) Size: 82x44x 22 Mm
Approval: TUV ,CE, R&TTE IP Rating: IP 20
Function: On-off Control Operation Temperature: -35℃~70℃
High Light:

rf motion sensor

,

floodlight motion sensor

,

High Frequency Microwave Indoor Motion Sensors


Product Description

400W Microwave Indoor Motion Sensor for Lights , ISM Wave Band





Description

1. Automatic switching based on motion and ambient light level.

2. Automatic daylight learning.

3. Zero-crossing point operation helps protect the sensor against in-rush current.

4. 5.8GHz high frequency microwave(C-Band license-free operation)

5. 4-pole press-in terminal (L, N, N,L′),easy assembly.

6. Detection area, time delay and daylight threshold can be precisely set via DIP switch.

7. Two types of installation, suitable for different luminaries.

8. MC018S is an innovative motion sensor, switch on the light on detection of movement, and switch off a hold time when there is no motion detected. As built-in daylight sensor can read brightness value, the sensor does not switch on the light if with sufficient in natural light.



Function:

ON-OFF function

High Frequency ISM Wave Band 400W Microwave Indoor Motion Sensors for Lights 0

Detection Pattern:

High Frequency ISM Wave Band 400W Microwave Indoor Motion Sensors for Lights 1



Specifications:



Operating voltage

220-240Vac, 50Hz

Rated load

400W(inductive), 1200W (resistive)

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

16m x 9m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation temperature

-35℃~70℃

Hold time

10s/30s/90s/3min/20min/30min

Detection sensitivity

25%/50%/75%/100%

Daylight sensor

5lux / 10lux / 30lux / 50lux / Disable

Life time

50,000 hours

Guaranty

5 years

Daylight sensor

5lux / 10lux / 30lux / 50lux / Disable



High Frequency ISM Wave Band 400W Microwave Indoor Motion Sensors for Lights 2



High Frequency ISM Wave Band 400W Microwave Indoor Motion Sensors for Lights 3



Wiring:



High Frequency ISM Wave Band 400W Microwave Indoor Motion Sensors for Lights 4

Applications:

Stairwell, Corridor, Balcony, Pathway, etc
