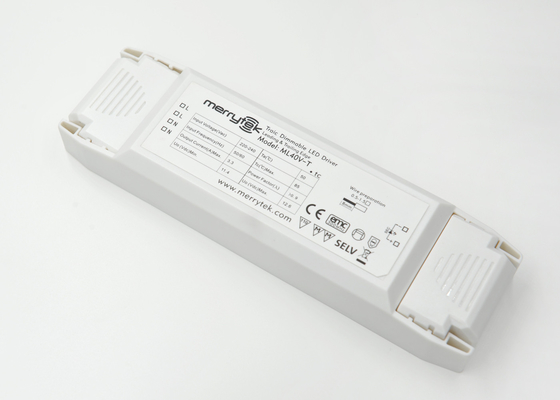

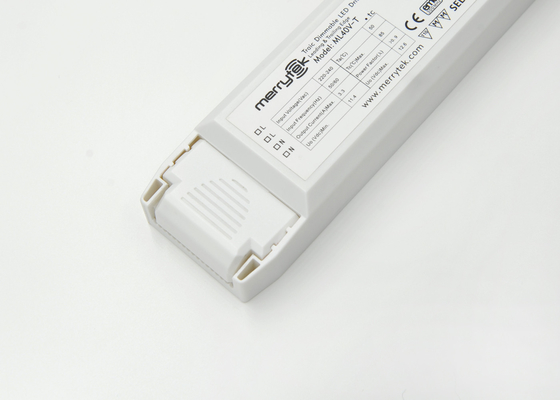

IP20 Warterproof Constant Voltage Dimmable LED Driver 12V 40 Watt

  • IP20 Warterproof Constant Voltage Dimmable LED Driver 12V 40 Watt
  • IP20 Warterproof Constant Voltage Dimmable LED Driver 12V 40 Watt
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number ML40V-T
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or western Union
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Traic Dimmable Led Driver Output Load 1x40W Max
Output Current 3.33A Max. Output Voltage 12Vdc
Input Voltage 220-240Vac Dimming Mode Traic
Working Temperature -25℃-50℃ Isolation Class Class II, SELV
Approvals CE Protection Class IP20
High Light

led dimmer driver

,

dimming motion sensor

,

Waterproof Constant Voltage Dimmable LED Driver
Leave a Message
Product Description

IP20 Warterproof 40 Watt LED Driver Dimmable Constant Voltage



Description:

1, This drvier is pecial for Trailing edge dimming

2, Protection: Short circuit / Over voltage / Over temperature.

3, Constant voltage 12Vdc

4, Dimming range: 10%-100%



Specifications

Input

Input voltage

220-240Vac, 50/60Hz

Power factor (PF)

≥0.9(@ 240Vac input, full load and without dimmer)

Efficiency

≥82%(@ 240Vac input, full load and without dimmer)

No-load power

≤1.5W

Output

Output Voltage

12V DC

Output Current

3.3A max.

Voltage accuracy

±5%

Rated power

40W Max.

Dimming

Dimming mode

Trailing edge and Leading edge dimming

Dimming range

10%-100%

Environment

Working temperature

-25℃~50℃

Storage temperature

-40℃~80℃

Safety and EMC

Insulation class

Class II, SELV

Withstand voltage

Input-Output: 3.7kVac/5mA/1min

EMC

Compliance to EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547

Safety

Compliance to EN61347-1, EN61347-2-13

Protection

Short circuit

Protection mode: Auto recovery

Over temperature

Protection mode: Auto recovery

Others

Dimension

202x58x29.85mm

Enclosure

Plastic, white

IP rating

IP20

Connection

Input: 4-hole press-in type terminal(L, L, N, N)

Output: Screw terminal block (LED +, LED -)

Life time

30,000h

Certification

CE



Mechanical Specification:

IP20 Warterproof Constant Voltage Dimmable LED Driver 12V 40 Watt 0



Wring Diagram:

IP20 Warterproof Constant Voltage Dimmable LED Driver 12V 40 Watt 1
