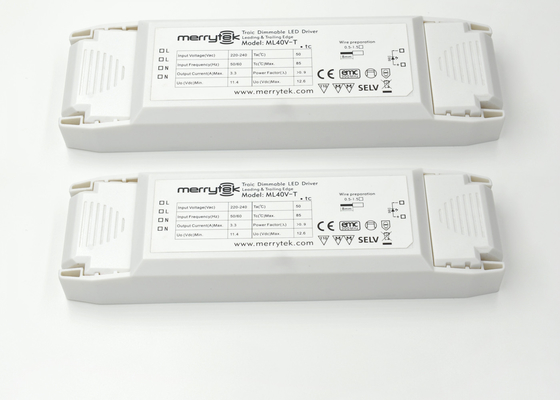

Dimmable Constant Voltage LED Driver With Trailing Edge Dimmer LED

  • Dimmable Constant Voltage LED Driver With Trailing Edge Dimmer LED
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number ML40V-T
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Dimmable Led Driver Input Voltage 220-240Vac
Dimming Mode Trailing Edge Dimming Output Load 1*40W Max
Working Temperature -25℃-50℃ Output Current 3.33A Max.
Isolation Class Class II, SELV Output Voltage 12Vdc
Approvals CE Protection Class IP20
Highlight

led dimming driver

,

led dimmer driver

,

Dimmable LED Driver With Trailing Edge
Leave a Message
Product Description

Constant Voltage Dimmable LED Driver / Trailing Edge Dimmer LED





Description:

1, Special for trailing-edge dimming, compatible with RL dimmer.

2. Support 40w output max

3. With Dimming range from 10% -100%

4, Protection: Short circuit / Over voltage / Over temperature.

5, Constant voltage 12Vdc



Specifications

Input

Input voltage

220-240Vac, 50/60Hz

Power factor (PF)

≥0.9(@ 240Vac input, full load and without dimmer)

Efficiency

≥82%(@ 240Vac input, full load and without dimmer)

No-load power

≤1.5W

Output

Output Voltage

12V DC

Output Current

3.3A max.

Voltage accuracy

±5%

Rated power

40W Max.

Dimming

Dimming mode

Trailing edge dimming

Dimming range

10%-100%

Environment

Working temperature

-25℃~50℃

Storage temperature

-40℃~80℃

Safety and EMC

Insulation class

Class II, SELV

Withstand voltage

Input-Output: 3.7kVac/5mA/1min

EMC

Compliance to EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547

Safety

Compliance to EN61347-1, EN61347-2-13

Protection

Short circuit

Protection mode: Auto recovery

Over temperature

Protection mode: Auto recovery

Others

Dimension

202x58x29.85mm

Enclosure

Plastic, white

IP rating

IP20

Connection

Input: 4-hole press-in type terminal(L, L, N, N)

Output: Screw terminal block (LED +, LED -)

Life time

30,000h

Certification

CE
