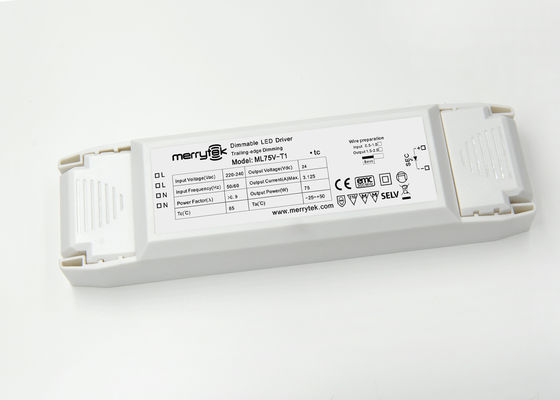

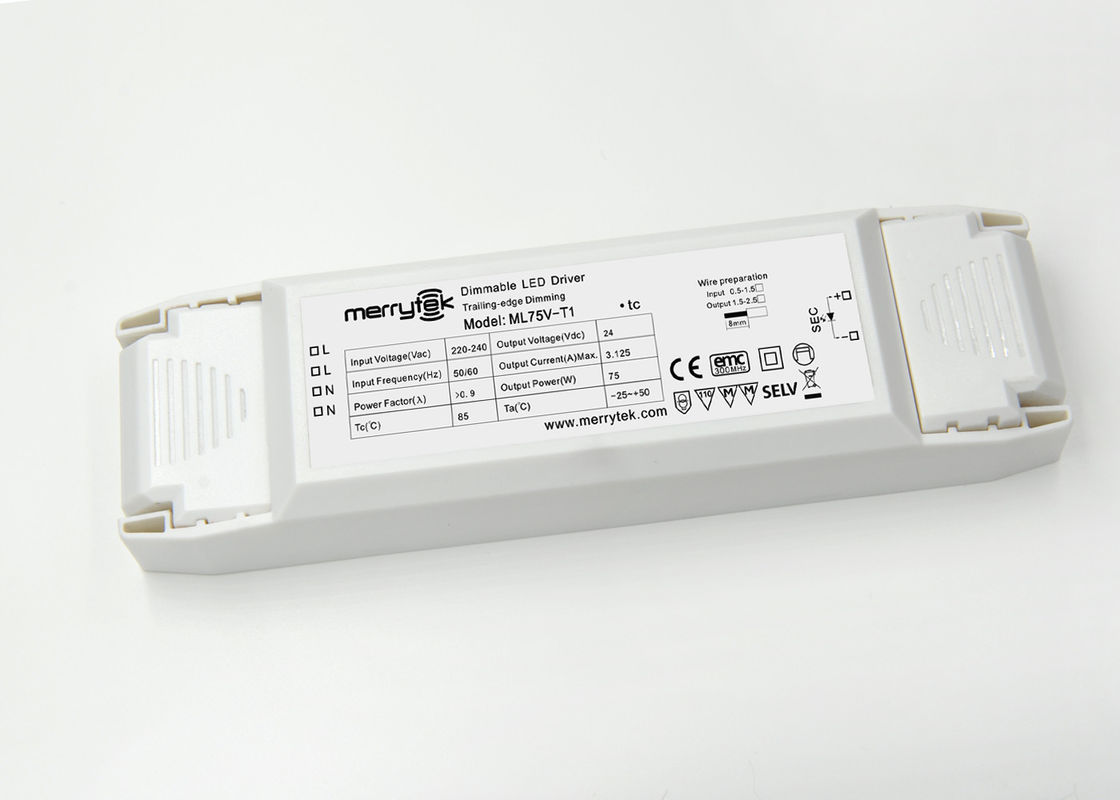

Non - flicker 24V Dimmable LED Driver / High Brightness LED Strip Light Driver

  • Non - flicker 24V Dimmable LED Driver / High Brightness LED Strip Light Driver
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number ML75V-T1
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 220-240Vac Product Name Dimmable LED Driver
Dimming Mode Trailing Edge Dimming Output Load 1*75W Max
Working Temperature -25℃-50℃ Output Current 3.125A Max.
Isolation Class Class II, SELV Output Voltage 24Vdc
Approvals CE Protection Class IP20
High Light

led dimming driver

,

led dimmer driver

,

Non Flicker Dimmable LED Driver
Leave a Message
Product Description



Non - flicker 24V Constant Voltage LED Driver LED Strip Light Driver





Description:

1. Ml75V-T1 with 75w Max output

2. Special for use of trailing edge dimmer

2. Compatible with dimmer: Scandinavia market- Schneider SBD615RC; Deutsch market- JUNG 225 T; DEBERKE 2874; BUSCH 6513 U-102; GIRA 0307 00

3. Serve for constant voltage 24Vdc luminaires.

4. Output voltage:12Vdc

5, Protection: Short circuit / Over voltage / Over temperature.

6, Dimming range: 10%-100%

7. Two L,Two N,easy for synchronization function



Specifications

Input

Input voltage

220-240Vac, 50/60Hz

Power factor (PF)

≥0.9(@ 240Vac input, full load and without dimmer)

Efficiency

≥82%(@ 240Vac input, full load and without dimmer)

No-load power

≤1.5W

Output

Output Voltage

24V DC

Output Current

3.125A max.

Voltage accuracy

±5%

Rated power

75W Max.

Dimming

Dimming mode

Trailing edge dimming

Dimming range

10%-100%

Environment

Working temperature

-25℃~50℃

Storage temperature

-40℃~80℃

Safety and EMC

Insulation class

Class II, SELV

Withstand voltage

Input-Output: 3.7kVac/5mA/1min

EMC

Compliance to EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547

Safety

Compliance to EN61347-1, EN61347-2-13

Protection

Short circuit

Protection mode: Auto recovery

Over temperature

Protection mode: Auto recovery

Others

Dimension

220x58x40mm

Enclosure

Plastic, white

IP rating

IP20

Connection

Input: 4-hole press-in type terminal(L, L, N, N)

Output: Screw terminal block (LED +, LED -)

Life time

30,000h

Certification

CE
