Waterproof Trailing Edge Dimmable LED Driver High Power For Ceiling Lamp
| Place of Origin | China |
|---|---|
| Brand Name | Merrytek |
| Certification | CE |
| Model Number | ML30C-T |
| Minimum Order Quantity | 100pcs |
| Price | Negotiation |
| Packaging Details | Packed in bubble bag firstly, and then reinforced with carton for outer packing |
| Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Supply Ability | 10,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Dimmable Led Driver | Output Load | 1*30W Max |
|---|---|---|---|
| Output Current | 350mA,500mA,550mA,700mA Selectable | Output Voltage | 30-38Vdc |
| Input Voltage | 220-240Vac | Dimming Mode | Trailing Edge Dimming |
| Working Temperature | -25℃-50℃ | Isolation Class | Class II, SELV |
| Approvals | CE | Protection Class | IP20 |
| High Light | led dimmer driver,dimming motion sensor,Waterproof Trailing Edge Dimmable LED Driver |
||
Product Description

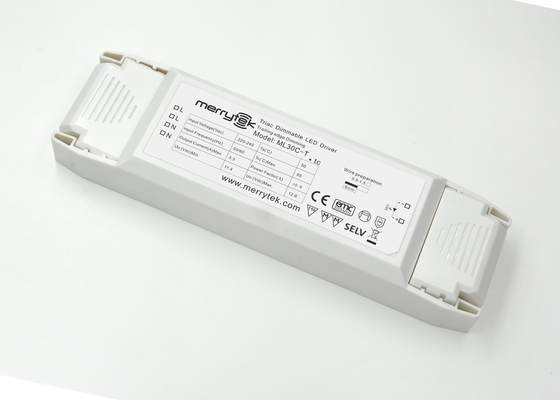

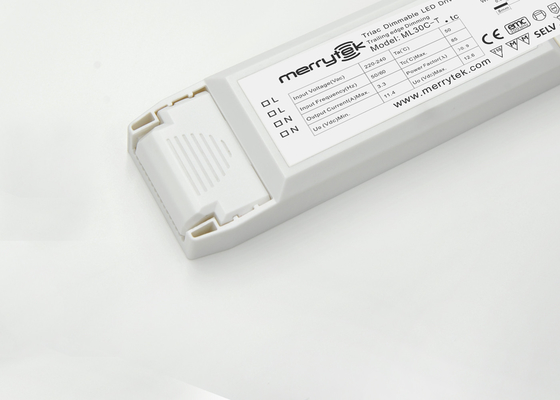

Trailing Edge Dimmable LED Driver High Power for Ceiling Lamp
Description:
1, ML30C-T is a Dimmable LED driver for Trailing edge dimming
2. WIth muti current optional selectable by dip switches
3. Dimming range from 10%-100%
4. Well match dimmers: Scandinavia market- Schneider SBD615RC; Deutsch market- JUNG 225 T; DEBERKE 2874; BUSCH 6513 U-102; GIRA 0307 00
5. Applied for ceiling lamp,down light,panel light
6. Flickering free @ full laod
7, Protection: Short circuit / Over voltage / Over temperature.
Specifications
|
Input |
Input voltage |
220-240Vac, 50/60Hz |
|
Power factor (PF) |
≥0.9(@ 240Vac input, full load and without dimmer) |
|
|
Efficiency |
≥85%(@ 240Vac input, full load and without dimmer) |
|
|
No-load power |
≤1W |
|
|
Output |
Output Voltage |
30-38V DC |
|
Output Current |
350mA,500mA,550mA,700mA selectable by two dip switches |
|
|
accuracy |
±5% |
|
|
Rated power |
30W Max. |
|
|
Dimming |
Dimming mode |
Trailing edge dimming |
|
Dimming range |
10%-100% |
|
|
Environment |
Working temperature |
-25℃~50℃ |
|
Storage temperature |
-40℃~80℃ |
|
|
Safety and EMC |
Insulation class |
Class II, SELV |
|
Withstand voltage |
Input-Output: 3.7kVac/5mA/1min |
|
|
EMC |
Compliance to EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547 |
|
|
Safety |
Compliance to EN61347-1, EN61347-2-13 |
|
|
Protection |
Short circuit |
Protection mode: Auto recovery |
|
Over temperature |
Protection mode: Auto recovery |
|
|
Others |
Dimension |
103x67x22mm |
|
Enclosure |
Plastic, white |
|
|
IP rating |
IP20 |
|
|
Connection |
Input: 2-hole press-in type terminal(L, N) Output: 2 press-in terminal(LED +, LED -) |
|
|
Life time |
30,000h |
|
|
Certification |
CE |
Mechanical Specification:
Wring Diagram
