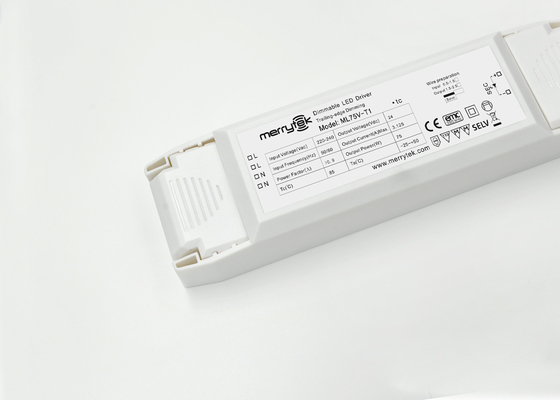

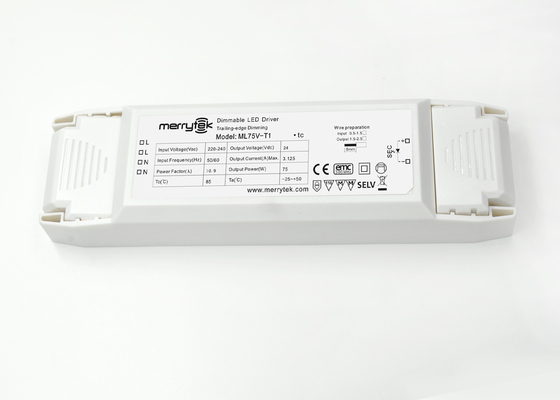

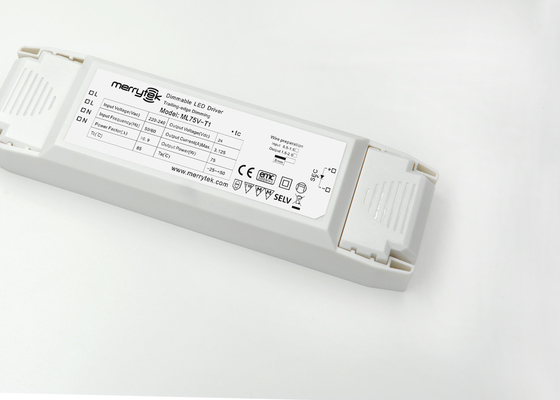

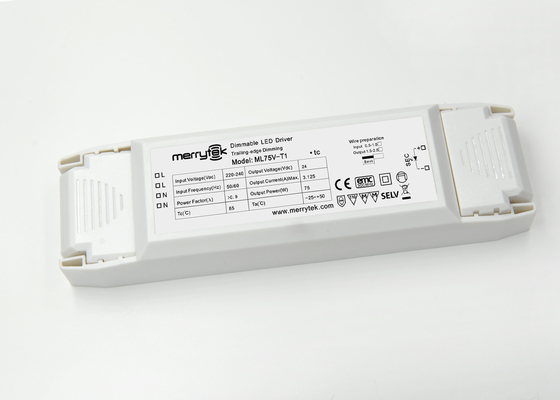

ML75V-T1 Dimmable LED Driver IP20

Place of Origin China
Brand Name Merrytek
Certification CE
Model Number ML75V-T1
Minimum Order Quantity 300pcs
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 75W 24Vdc Traic Dimmable Led Driver Leading & Trailing Edge Dimming Output Load 1*75W Max
Output Current 3.125A Max. Output Voltage 24Vdc
Input Voltage 220-240Vac Dimming Mode Traic
Working Temperature -25℃-50℃ Isolation Class Class II, SELV
Approvals CE Protection Class IP20
High Light

dimmable constant current led driver

,

high power led driver

,

Dimmable LED Driver IP20

Leave a Message
Product Description

ML75V-T1 Constant Voltage Triac Dimmable LED Driver 75w 24Vdc leading & trailing edge dimming 220x58x40mm





Description:

1, Leading & Trailing edge dimming, compatible with popular dimmer in Euro.

2, This Triac dimmable led driver mainly works for led strip,COB luminaires,PAR 16.

3, Output power: 75w max

4, Output voltage: 24Vdc

5, Output current: 3.125A max

6, Protection: Short circuit / Over voltage / Over temperature.

7, Dimming range: 10%-100%

8, Compatible with dimmer: Scandinavia market- Schneider SBD615RC; Deutsch market- JUNG 225 T; DEBERKE 2874; BUSCH 6513 U-102; GIRA 0307 00

9, A group of luminaires can be controlled by one Triac dimmer



Mechanical Specification



ML75V-T1 Dimmable LED Driver IP20 0



Specifications



Input

Input voltage

220-240Vac, 50/60Hz

Power factor (PF)

≥0.9(@ 240Vac input, full load and without dimmer)

Efficiency

≥82%(@ 240Vac input, full load and without dimmer)

No-load power

≤1.5W

Output

Output Voltage

24V DC

Output Current

3.125A max.

Voltage accuracy

±5%

Rated power

75W Max.

Dimming

Dimming mode

Leading & Trailing edge dimming

Dimming range

10%-100%

Environment

Working temperature

-25℃~50℃

Storage temperature

-40℃~80℃

Safety and EMC

Insulation class

Class II, SELV

Withstand voltage

Input-Output: 3.7kVac/5mA/1min

EMC

Compliance to EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547

Safety

Compliance to EN61347-1, EN61347-2-13

Protection

Short circuit

Protection mode: Auto recovery

Over temperature

Protection mode: Auto recovery

Others

Dimension

220x58x40mm

Enclosure

Plastic, white

IP rating

IP20

Connection

Input: 4-hole press-in type terminal(L, L, N, N)

Output: Screw terminal block (LED +, LED -)

Life time

30,000h

Certification

CE




Application



LED Strips,Panel light,COB lights



Wire diagram
