400W Microwave Motion Sensor MC018S For Lights Indoor Use , 5.8G ISM Wave Band
| Place of Origin | China |
|---|---|
| Brand Name | Merrytek |
| Certification | TUV ,CE, R&TTE |
| Model Number | MC018S |
| Minimum Order Quantity | 100pcs |
| Price | Negotiation |
| Packaging Details | Packed in bubble bags firstly, and then reinforced with carton for outer packing |
| Delivery Time | 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks |
| Payment Terms | T/T, Western Union |
| Supply Ability | 20,000pcs per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operating Voltage | 220-240Vac,50HZ | Product Name | Microwave Motion Sensor |
|---|---|---|---|
| Detection | Max(D×H):12m×10m | HF System | 5.8GHz ±75MHz, ISM Wave Band |
| Rated Load | 400W(inductive) 800W (resistive) | Size | 82x44x 22 Mm |
| Approval | TUV ,CE, R&TTE | IP Rating | IP 20 |
| Function | On-off Control | Operation Temperature | -35℃~70℃ |
| Highlight | microwave sensors for lighting,floodlight motion sensor,ISM Wave Band Microwave Motion Sensor |
||
Product Description

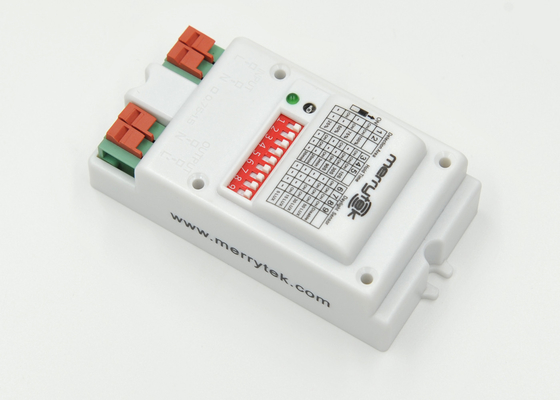

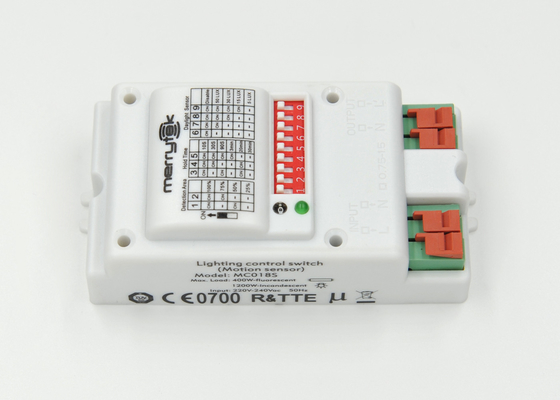

400W Microwave Motion Sensor MC018S for Lights Indoor Use , 5.8G ISM Wave Band
Description
MC018S is an innovative motion sensor, switch on the light on detection of movement, and switch off a hold time when there is no motion detected. As built-in daylight sensor can read brightness value, the sensor does not switch on the light if with sufficient in natural light.
Automati daylihgt learning :
Normally ,the sensor supplies daylihgt threshold settings 5lux/15lux/30lux / 50lux / Disable,if the exact setting range s above can not meet demand of users ,or the daylight threshold need to be reset after installtation ,rapidly switching off or switching on 3 cycles witin 3 sec can easily reset the daylihgt senosr .
1. Automatic switching based on motion and ambient light level.
2. Automatic daylight learning.
3. Zero-crossing point operation helps protect the sensor against in-rush current.
4. 5.8GHz high frequency microwave(C-Band license-free operation)
5. 4-pole press-in terminal (L, N, N,L′),easy assembly.
6. Detection area, time delay and daylight threshold can be precisely set via DIP switch.
7. Two types of installation, suitable for different luminaries.
8. MC018S is an innovative motion sensor, switch on the light on detection of movement, and switch off a hold time when there is no motion detected. As built-in daylight sensor can read brightness value, the sensor does not switch on the light if with sufficient in natural light.
Function:
ON-OFF function
Detection Pattern:
Specifications:
|
Operating voltage |
220-240Vac, 50Hz |
|
Rated load |
400W(inductive), 1200W (resistive) |
|
HF system |
5.8GHz±75MHz, ISM wave band |
|
Power consumption |
≤0.5W(standby), <1W(operation) |
|
Transmitting power |
<0.5mW |
|
Detection zone Max.(D x H) |
16m x 9m |
|
Motion detection |
0.5~3m/s |
|
Detection angle |
150°(wall installation) 360°(ceiling installation) |
|
IP rating |
IP20 |
|
Operation temperature |
-35℃~70℃ |
|
Hold time |
10s/30s/90s/3min/20min/30min |
|
Detection sensitivity |
25％/50％/75％/100％ |
|
Daylight sensor |
5lux / 15lux / 30lux / 50lux / Disable |
|
Life time |
50,000 hours |
|
Guaranty |
5 years |
|
Daylight sensor |
5lux / 10lux / 30lux / 50lux / Disable |
Wiring:
Applications:
Stairwell, Corridor, Balcony, Pathway, etc
