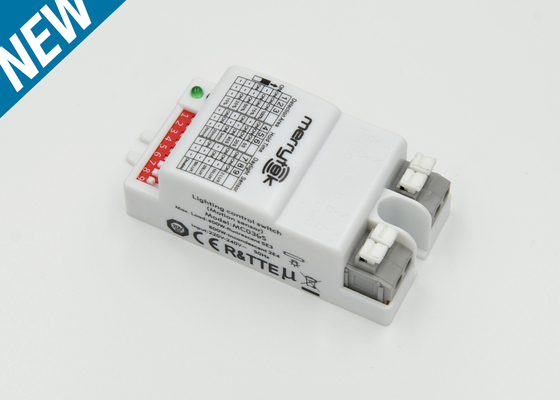

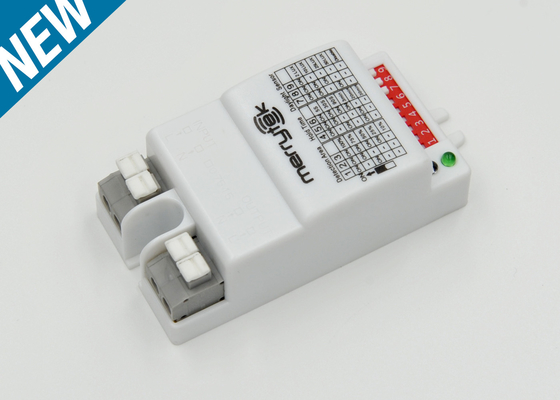

High Power Factor Microwave Motion Sensor MC036S ON-off Function 220-240v AC
| Place of Origin | China |
|---|---|
| Brand Name | Merrytek |
| Certification | CE & R&TTE |
| Model Number | MC036S |
| Minimum Order Quantity | 300pcs |
| Price | Negotiation |
| Packaging Details | Packed in bubble bags firstly, and then reinforced with carton for outer packing |
| Delivery Time | 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks |
| Payment Terms | T/T, Western Union |
| Supply Ability | 20,000pcs per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 75x36.5x 25.5 Mm | Product Name | Microwave Motion Sensor |
|---|---|---|---|
| Approval | CE , R&TTE | IP Rating | IP 20 |
| Rated Load | Inductive :400W Resistive : 800W | Function | On-off Control |
| Operating Voltage | 120-277Vac,50HZ | Operation Temperature | -20℃~60℃ |
| Detection | Max(D×H):16m×6m | HF System | 5.8GHz ±75MHz, ISM Wave Band |
| Highlight | microwave sensors for lighting,rf motion sensor,High Power Factor Microwave Motion Sensor |
||
Product Description
High Power Factor Microwave Motion Sensor MC036S ON-off function 120-277v AC
Description:
MC036S ,adopt the latest technic ,will not affect the power factor of the full circuit ,most energy saving .
it is an innovative and active motion detector with HF system 5.8GHz. It automatically switches on/off light based on motion and ambient light level. Can control all kinds of lamps, for example, halogen, fluorescent and LED lights. Compact size and small casing, suitable to fix within most luminaires . Motion can be detected through plastic, glass and thin non-metal materials.
Features:
1. Adopt power switch to make sure no affect power factor .
2. Unique design to save cost
3. Super compact size makes it suitable to fix within most luminaires.
4. 4-pole press-in terminal (L, N, N,L′),easy assembly.
5. Zero-crossing point operation helps protect the sensor against in-rush current..
6. 5.8GHz high frequency microwave(C-Band license-free operation)

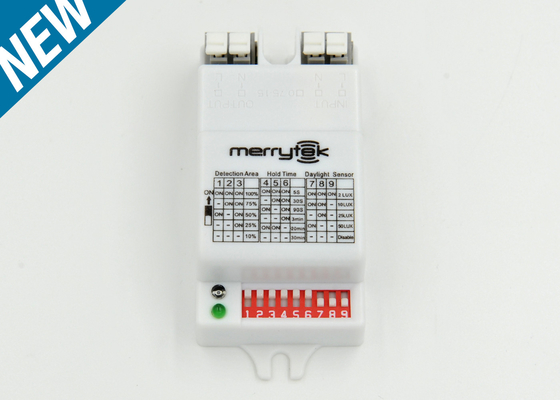

7. Detection area, time delay and daylight threshold can be precisely set via DIP switch.
8.Automatic switching based on motion and ambient light level.
Function:
ON-OFF function
Wiring :
Specifications:
|
Operating voltage |
120-277Vac, 50Hz |
|
Rated load |
Inductive :400W,Resistive : 800W |
|
HF system |
5.8GHz±75MHz, ISM wave band |
|
Power consumption |
≤0.5W(standby), <1W(operation) |
|
Transmitting power |
<0.5mW |
|
Detection zone Max.(D x H) |
12m x 6m |
|
Motion detection |
0.5~3m/s |
|
Detection angle |
150°(wall installation) 360°(ceiling installation) |
|
IP rating |
IP20 |
|
Operation temperature |
-20℃~60℃ |
|
Hold time |
5s / 30s / 90s / 3min / 20min / 30min |
|
Detection sensitivity |
10% / 25% / 50% / 75% / 100% |
|
Daylight sensor |
2lux / 10lux / 30lux / 50lux / Disable |
|
Life time |
50,000 hours |
|
Guaranty |
5 years |
Detection Pattern:
Applications:
Stairwell, corridor, balcony, pathway, etc
