| Place of Origin: | China |
|---|---|
| Brand Name: | Merrytek |
| Certification: | TUV |
| Model Number: | MC071S |
| Minimum Order Quantity: | Stop production, not available. |
| Price: | Negotiation |
| Packaging Details: | Packed in bubble bag firstly, and then reinforced with carton for outer packing |
| Delivery Time: | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 20,000pcs per month |
| Product Name: | Microwave Motion Sensor | Rated Load: | 400W (Inductive) ,800W（Resistive） |
|---|---|---|---|
| Operating Voltage: | 220-240VAC 50/60Hz | Stand-by Power: | ≤0.5W |
| HF System: | 5.8GHz ±75MHz, ISM Wave Band | Approval: | TUV |
| Operation Temperature: | -25℃~+55℃ | Function: | ON/OFF CONTROL |
| IP Rating: | IP20 | ||
| High Light: | IP20 Ceiling Occupancy Sensor,Panel Light Microwave Motion Sensor,Minor Detecting Microwave Motion Sensor |
||
Stop production, not available.

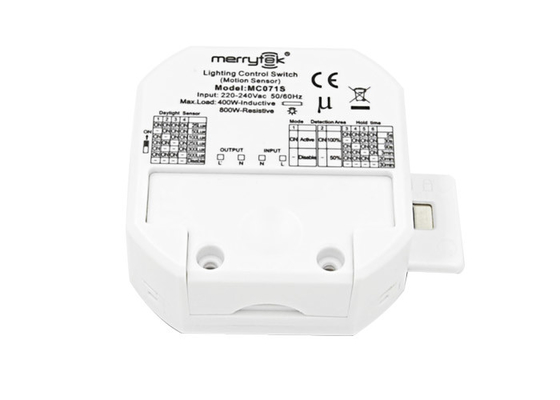

ON/OFF Control Microwave Motion Sensor MC071S
LED Panel Light/Offices Used Minor Motion Detecting
Features:
* On/off control function, suitable for LED panel light/offices;
* Minor motion and normal motion detecting;
* Automatic switching based on motion and light level;
* Black velvet design at the bottom can prevent dust;
* Detection area, hold time, daylight sensor and mode can be precisely set via DIP switches.
1. Parameters
| Input | Operating Voltage | 198-264V AC 50/60Hz |
| Voltage Range | 220-240V AC 50/60Hz | |
| Stand-by Power | ≤0.5W | |
| Output | Load Type | 400W (Inductive) ,800W(Resistive) |
| Sensor Parameters | Sensitivity | 100%/50%(Can be set via 1 DIP) |
| Mode | Sensor: Active/disable(Can be set via 1 DIP) | |
| Hold Time | 5S/3min/5min/10min/20min/30min(Can be set via 4 DIP) | |
| Daylight Sensor | 25LUX/50Lux/100Lux/250Lux/300Lux/500Lux/Disable (Can be set via 4 DIP) | |
| Mounting Height | Ceiling Mounting 3m | |
| Detection Area | Normal motion detecting area: 4m±1m | |
| Wireless Parameters | Operating Frequency | 5.8 GHz ±75 MHz |
| Dimming Control | 0N/0FF | |
Operating | Operating Temperature | -25℃~+55℃ |
| Others | Certificate Requirement | TUV |
| IP Rating | IP20 | |
| Protection Class | Class II | |
| Packaging Requirement | Clapboard +Outer Carton(K=A) | |
| Life | 50000h |
2. Dimension (Unit:mm)
3. Wiring Diagram
4. Function
5. Function Diagram
6. Sensor Settings
| 1 | |
| Active | ON |
| disable | - |
| 2 | |
| 100% | ON |
| 50% | - |
| 3 | 4 | 5 | 6 | |
| 5S | ON | ON | ON | ON |
| 30S | - | ON | ON | ON |
| 90S | ON | - | ON | ON |
| 3 min | ON | ON | - | ON |
| 20min | ON | ON | ON | - |
| 30min | - | - | - | - |
| 1 | 2 | 3 | 4 | |
| 25Lux | ON | ON | ON | ON |
| 50Lux | - | ON | ON | ON |
| 100Lux | ON | - | ON | ON |
| 250Lux | ON | ON | - | ON |
| 300Lux | ON | - | - | ON |
| 500Lux | ON | ON | ON | - |
| Disable | - | - | - | - |
