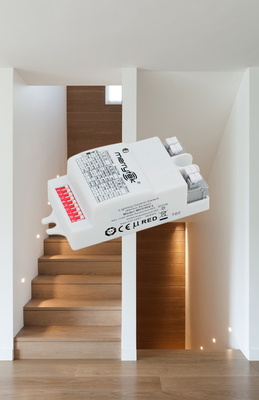

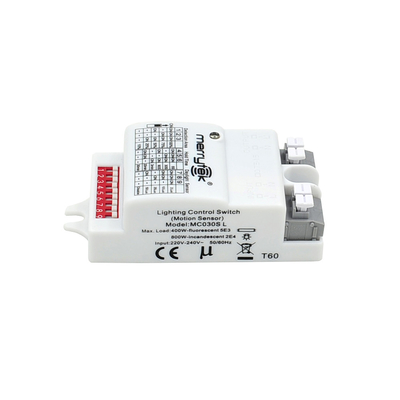

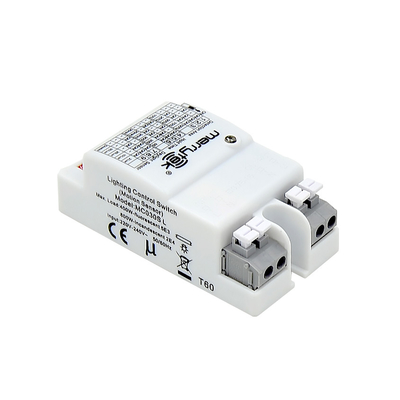

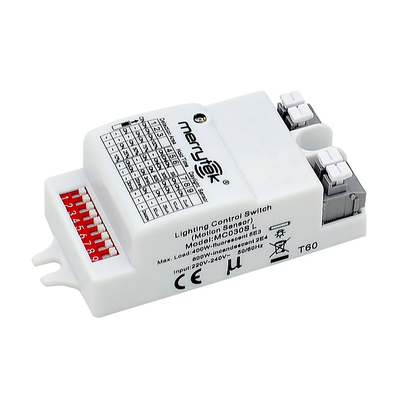

Mini Size Microwave Motion Sensor MC030S L 220-240VAC IP20 For On Off

Place of Origin China
Brand Name Merrytek
Certification TUV.CE , RED
Model Number MC030S L
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or western Union
Supply Ability 20,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Microwave Motion Sensor Rated Load 400w(Inductive) 800w(Resistive)
Operating Voltage 220~240Vac,50HZ Detection Max(D×H):16m×6m
HF System 5.8GHz ±75MHz, ISM Wave Band Approval TUV, CE & RED
Operation Temperature -20℃~60℃ Function ON-OFF Control
IP Rating IP20
High Light

IP20 Occupancy Motion Sensor

,

On Off Microwave Motion Sensor

,

Mini Size Microwave Motion Sensor

Leave a Message
Product Description

Mini Size Microwave Motion Sensor MC030S L with 220-240vAC Operated For On-off Function





Description



1. Super Compact size of 69mm*35.5mm*25.5mm

2. Unique design with loop in and loop out .

3. Daylight sensor with min 2 lux optional

4. Zero-crossing point operation helps protect the sensor against in-rush current.

5. 5.8GHz high frequency microwave(C-Band license-free operation)

6. 4-pole press-in terminal (L, N,N,L′),easy assembly.

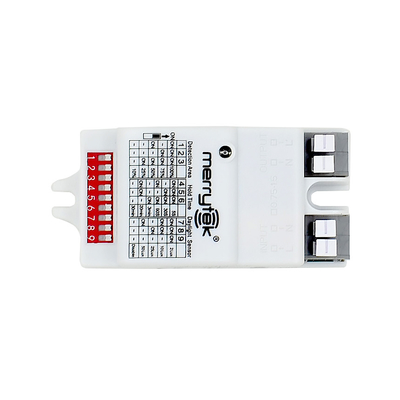

7. Detection area, time delay and daylight threshold can be precisely set via DIP switch.

8. MC030S is an innovative motion sensor, switch on the light on detection of movement, and switch

off a hold time when there is no motion detected. As built-in daylight sensor can read brightness

 value, the sensor does not switch on the light if with sufficient in natural light.





Function:



Mini Size Microwave Motion Sensor MC030S L 220-240VAC IP20 For On Off 0





Specifications:

Mini Size Microwave Motion Sensor MC030S L 220-240VAC IP20 For On Off 1Mini Size Microwave Motion Sensor MC030S L 220-240VAC IP20 For On Off 2



Operating voltage

220-240Vac, 50Hz

Rated load

400W(inductive), 800W (resistive)

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W

Transmitting power

<0.5mW

Detection zone Max.(D x H)

16m x 6m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation temperature

-20℃~60℃

Hold time

5s/30s/90s/3min/20min/30min

Detec Range

10%/25%/50%/75%/100%

Daylight sensor

2lux / 10lux / 25lux / 50lux / Disable

Life time

50,000 hours

Guaranty

5 years



Applications:



MC030S is special for application such as corridor ,pathway
