IP65 Outdoor Microwave Motion Sensor 240V MC032S Zero Crossing Point

Place of Origin China
Brand Name Merrytek
Certification CE & R&TTE
Model Number MC032S
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bags firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T, Western Union
Supply Ability 20,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Microwave Motion Sensor Operating Voltage 220-240Vac,50HZ
Detection Max(D×H):12m×6m Rated Load 400W (inductive), 800W (resistive)
HF System 5.8GHz ±75MHz, ISM Wave Band Approval CE
Operation Temperature -20℃~60℃ Function On-off Control
IP Rating IP 65 Cover Color Black Or White
Highlight

Zero Crossing Point Motion Sensor

,

240V Outdoor Microwave Motion Sensor

,

IP65 Outdoor Microwave Motion Sensor

Leave a Message
Product Description

Stop production, not available.

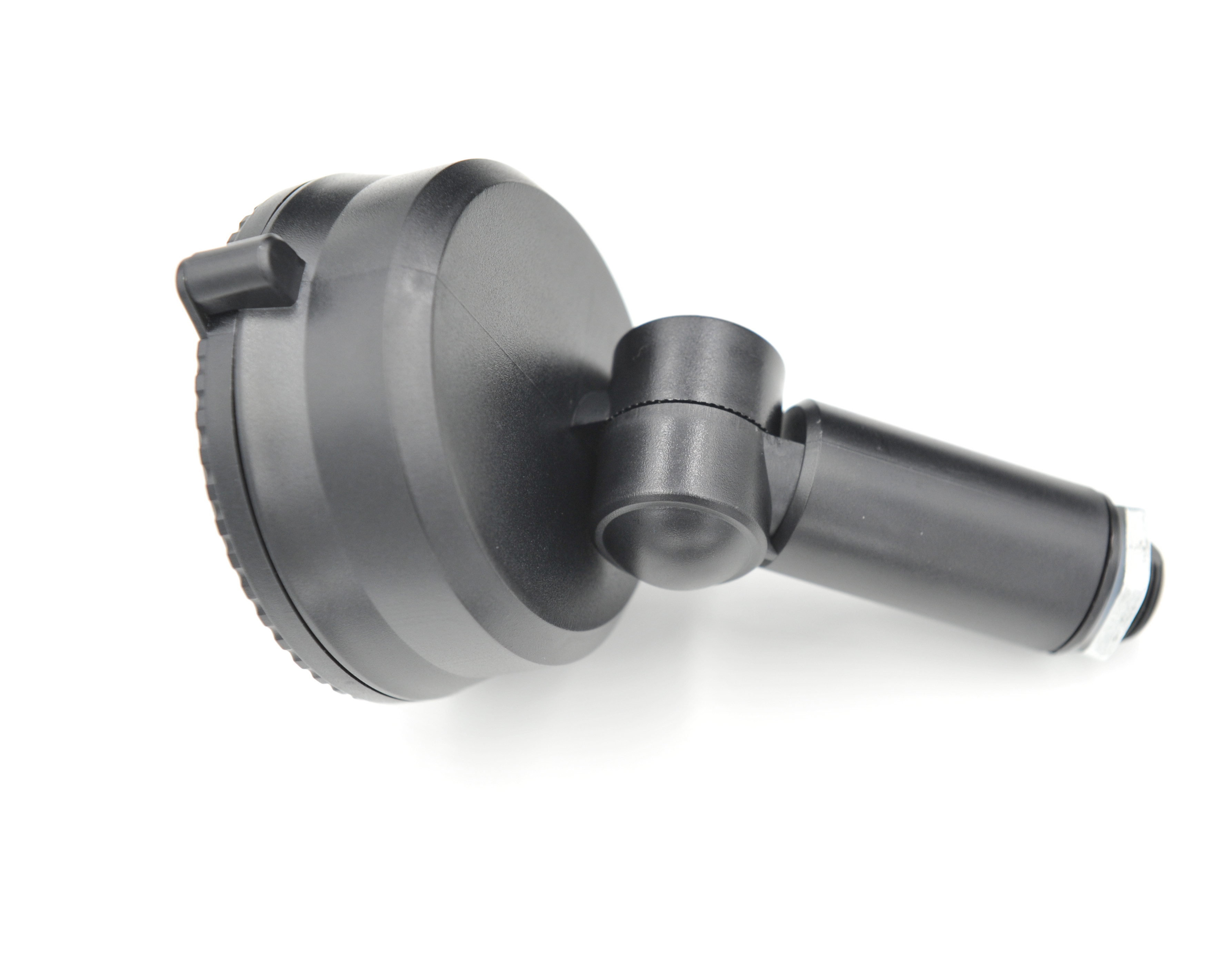

IP65 Outdoor Microwave Motion Sensor MC032S for Flood Light , 220V - 240V , Zero-crossing Point Operation







Description:

MC032S is an innovative and active motion detector with HF system 5.8GHz. It automatically switches on/off light based on motion and ambient light level. Can control all kinds of lamps, for example, halogen, fluorescent and LED lights. Compact size and small casing, suitable to fix within most luminaires . Motion can be detected through plastic, glass and thin non-metal materials.



Features:

1. Desing for flood light to replace PIR sensor

2. IP65,support stand-alone installation

3. Automatic switching based on motion and ambient light level.

4. Compact size makes it suitable to fix within most luminaires.

5. 4-pole press-in terminal (L, N, N,L′),easy assembly

6. Zero-crossing point operation helps protect the sensor against in-rush current..

7. 5.8GHz high frequency microwave(C-Band license-free operation)

8. Detection area, time delay and daylight threshold can be precisely set via DIP switch.

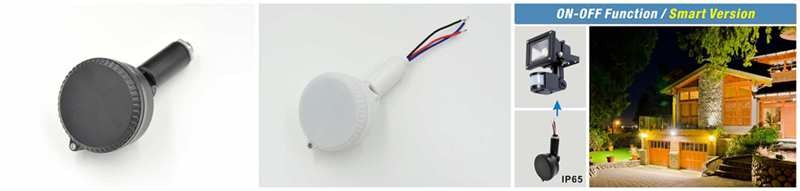

Function:

ON-OFF function

IP65 Outdoor Microwave Motion Sensor 240V MC032S Zero Crossing Point 0

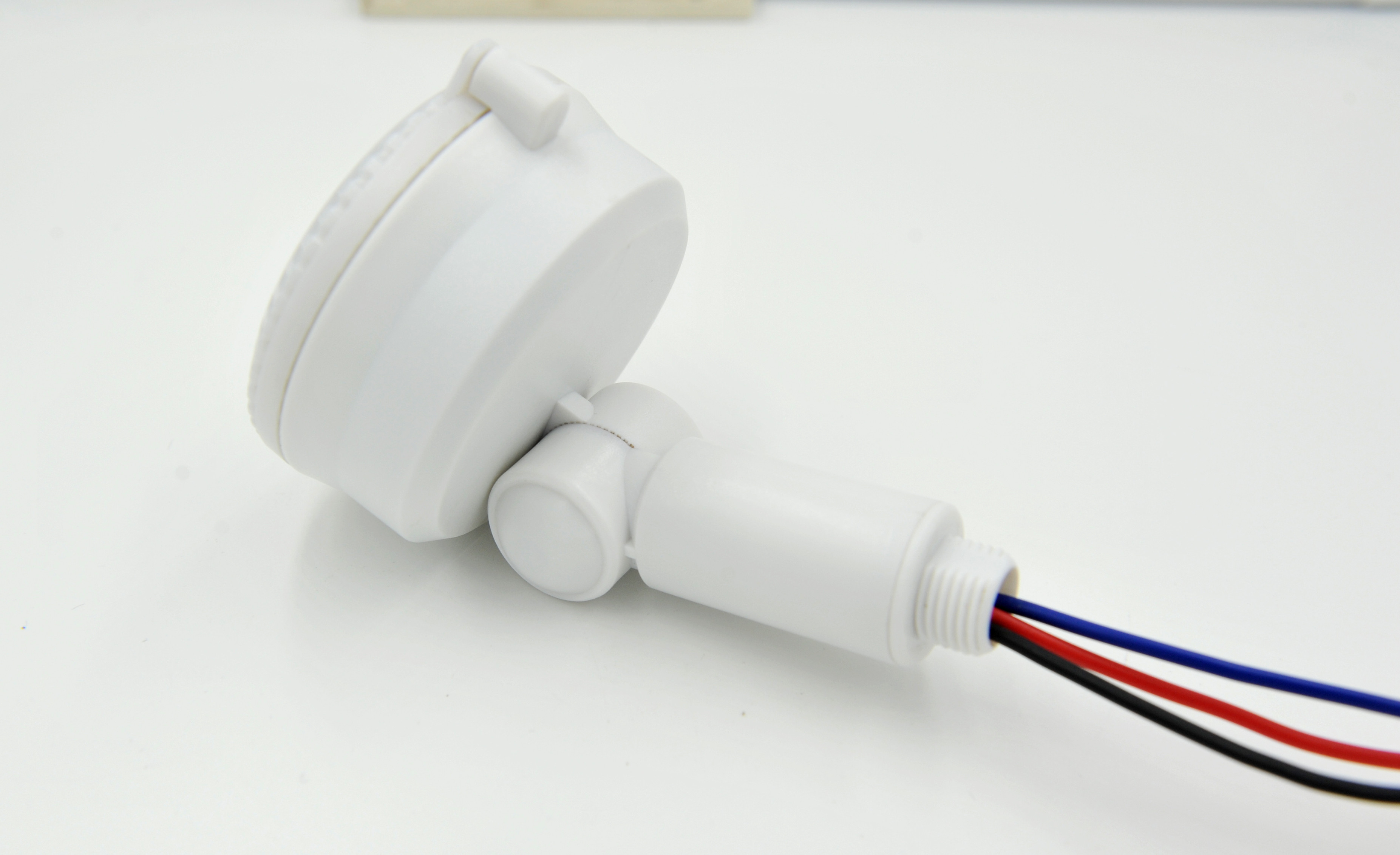

Wiring :

IP65 Outdoor Microwave Motion Sensor 240V MC032S Zero Crossing Point 1



Detection Patter:

IP65 Outdoor Microwave Motion Sensor 240V MC032S Zero Crossing Point 2



Specifications:

Operating voltage

220-240Vac, 50Hz

Rated load

Inductive :400W,Resistive : 800W

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

12m x 6m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation temperature

-20℃~60℃

Hold time

10s / 30s / 90s / 3min / 20min / 30min

Detection sensitivity

10% / 25% / 50% / 75% / 100%

Daylight sensor

5lux / 10lux / 30lux / 50lux / Disable

Life time

50,000 hours

Guaranty

5 years







IP65 Outdoor Microwave Motion Sensor 240V MC032S Zero Crossing Point 3

Applications:

Stairwell, Corridor,Balcony, Pathway, etc



IP65 Outdoor Microwave Motion Sensor 240V MC032S Zero Crossing Point 4
