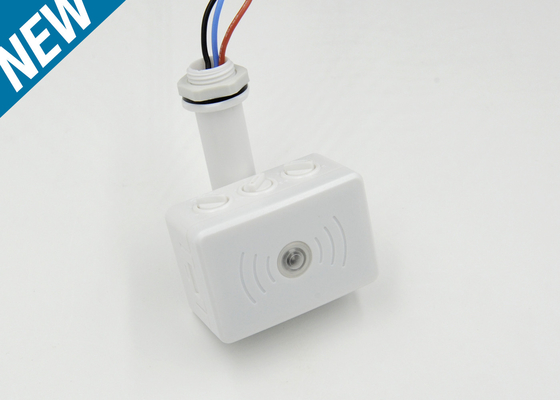

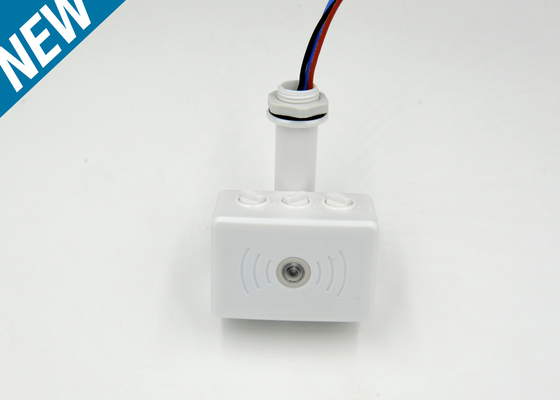

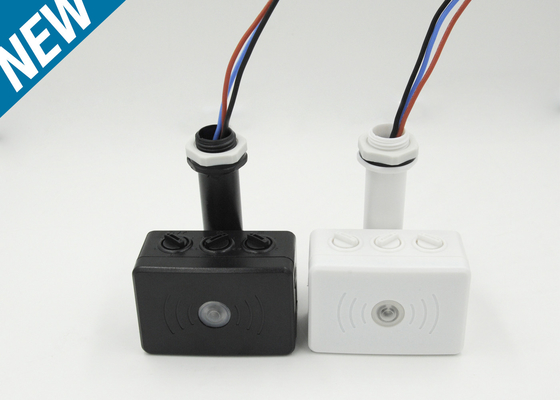

5.8GHz Outdoor Microwave Motion Sensor MC055S For Flood Lineal Light

Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MC055S
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details Packed in bubble bags firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T, Western Union
Supply Ability 20,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Outdoor Use Microwave Motion Sensor Operating Voltage 220-240Vac,50HZ
Detection Max(D×H):12m×6m Rated Load 400W (inductive), 800W (resistive)
HF System 5.8GHz ±75MHz, ISM Wave Band Approval CE
Operation Temperature -20℃~60℃ Function On-off Control
IP Rating IP 65 Adapter φ16
Motion Detector 0.5-3m/s
High Light

5.8GHz RC Motion Sensors

,

Anti Interference Microwave Motion Sensor

,

Flood Light Microwave Motion Sensor

Leave a Message
Product Description

IP65 Outdoor Use Microwave Motion Sensor MC055S , for Flood Light and Lineal Light ON/OFF Function





Description



1. Waterproof sensor with IP65 rating

2. Strong anti-interference capacity for raindrop and breeze, suitable for outdoor use.

3.  Automatic switching based on motion and ambient light level.

4. Input: L N :10-15cm brown and blue wire and Output: L N’ 10-15cm black and blue wire , easy to connect

5. Zero-crossing point operation helps protect the sensor against in-rush current..

6. 5.8GHz high frequency microwave(C-Band license-free operation)

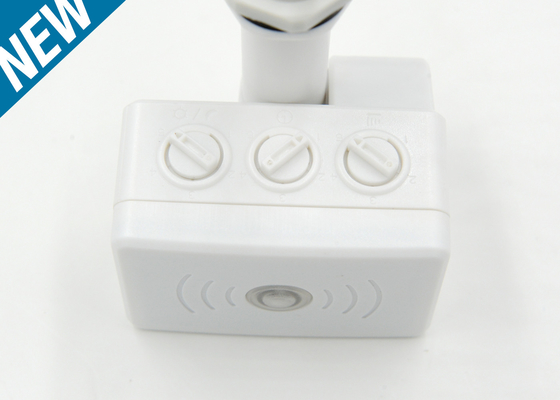

7. Detection area, time delay and daylight threshold can be precisely set via potentiometer

8. Adapter can be changed from φ16 to φ20, to suitable for  different led fittings.



Function:

ON-OFF function

5.8GHz Outdoor Microwave Motion Sensor MC055S For Flood Lineal Light 0



5.8GHz Outdoor Microwave Motion Sensor MC055S For Flood Lineal Light 1



Specifications:

Operating voltage

220-240Vac, 50Hz

Rated load

Inductive :400W,Resistive : 800W

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

12m x 6m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation temperature

-20℃~60℃

Hold time

10s / 30s / 90s / 3min / 20min / 30min

Detection sensitivity

25%,/50%,75%,100%

Daylight sensor

2Lux /10Lux /25Lux /50Lux /Disable

Life time

50,000 hours

Connection

Input : L N :10-15cm brown and blue wire

Output: N L': 10-15cm black and blue wire

Guaranty

5 years



Wiring:



5.8GHz Outdoor Microwave Motion Sensor MC055S For Flood Lineal Light 2



Size:



5.8GHz Outdoor Microwave Motion Sensor MC055S For Flood Lineal Light 3





Applications:

Stairwell, Corridor,Balcony, Pathway, etc





Download:

MC055S.pdf
