120/277Vac Microwave Motion Sensor On-off Control North Amercian Version for Linear & Batten MC612V D RC

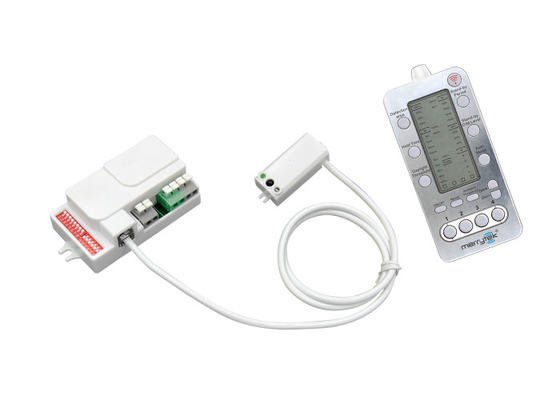

  • 120/277Vac Microwave Motion Sensor On-off Control North Amercian Version for Linear & Batten MC612V D RC

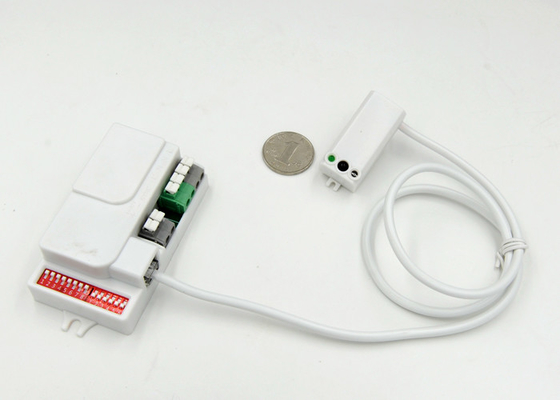

  • 120/277Vac Microwave Motion Sensor On-off Control North Amercian Version for Linear & Batten MC612V D RC

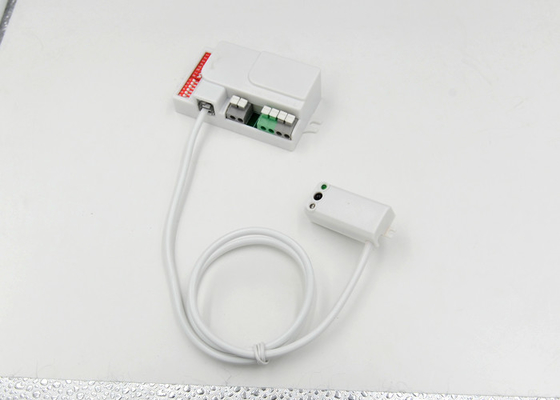

  • 120/277Vac Microwave Motion Sensor On-off Control North Amercian Version for Linear & Batten MC612V D RC
Place of Origin China
Brand Name Merrytek
Certification UL
Model Number MC612V D RC
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or Western Union or PayPal
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Input Voltage 120/277VAC Stand-by Power ≤0.5W
Operating Mode Operating Mode ON/OFF 0-10V HF Radiated Power 0.5mW Max.
Hold Time 5S/30S/1min/5min/10min/15min/30min （Remote Control：5S/30S/1min/5min/10min/15min/30min） Sensing Range （Diameter*Height） 12M*6M（Max.）
Operating Temperature -35℃~60℃ Certificate Requirement UL
IP Rating IP20
High Light

microwave motion sensor

,

light motion sensor

,

277V ac Microwave Motion Sensor
Leave a Message
Product Description

120/277Vac Microwave Motion Sensor On-off Control North Amercian Version for Linear & Batten MC612V D RC

  • 120/277Vac (50Hz/60Hz) Input voltage
  • Stand-by Power: ≤0.5W
  • 3-step dimming function
  • North Amercian version for linear & batten

  • Fuctions can be set via infrared remote control MH02 such as detection area, hold time, stand-by level, stand-by dim level etc

  • 5 Years Guarantee



Specifications:



Input Input Voltage Range 108-305VAC
Rated Input Voltage 120/277VAC
Stand-by Power < 0.5W
Wiring Method Press fit terminal
Output Operating Mode ON/OFF 0-10V
Load Power 3A (Inductive)@120VAC; 3A (Resistive)@277VAC
0-10V Dimming < 50mA
Wiring Method Press fit terminal
Sensor Parameters HF Operating frequency 5.8 GHz ±75 MHz,ISM Wave Band.
HF Radiated power 0.5mW Max.
Detection Area 100%/75%/50%/25%(Remote Control:100%/75%/50%/25%)
Hold time 5S/30S/1min/5min/10min/15min/30min (Remote Control:5S/30S/1min/5min/10min/15min/30min)
Stand-by Level 0s/1min/3min/5min/10min/30min/+∞(Remote Control:0s/1min/3min/5min/10min/30min/+∞)
Daylight Sensor 5lux/15Lux/30Lux/50Lux/100lux/150lux/Disable (Remote Control:5lux/15Lux/30Lux/50Lux/100lux/150lux/Disable)
Stand-by Dim Level 10%/20%/30%/50%(Remote Control:10%/20%/30%/50%)
Sensing Range
(Diameter*Height)		 12M*6M(Max.)
Detection Angel 150°(Wall mounting), 360°(Ceiling mounting)

Operating

Environment

 Operating temperature -35℃~60℃
Storage temperature -35℃~80℃

Safety

& EMC

 Isolation pressurization N/A
EMC N/A
Others Certificate requirement UL
IP rating IP20
Protection Class Class II
Installation requirement Built-in
Case Size inch: 3.74*1.772*1.024 (mm:95*45*26)
Packaging requirement Clapboard +Outer Carton (K=A)
Life 50000Hr


Dimension (Unit:mm):

120/277Vac Microwave Motion Sensor On-off Control North Amercian Version for Linear & Batten MC612V D RC 0


Wiring Diagram:

120/277Vac Microwave Motion Sensor On-off Control North Amercian Version for Linear & Batten MC612V D RC 1


Function:

120/277Vac Microwave Motion Sensor On-off Control North Amercian Version for Linear & Batten MC612V D RC 2
