120-347Vac input intelligent microwave motion sensor with UL approval

Place of Origin Shenzhen, China
Brand Name Merrytek
Certification UL, CUL
Model Number MC606V
Minimum Order Quantity 300pcs
Price Negotiable
Packaging Details Bubble bag+ Clapboard+ Carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 20,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Input Voltage 120/277/347Vac HF Operating Frequency 5.8 GHz ±75 MHz
Stand-by Power ≤1.0W Mounting Height 3-12m (Max.12m)
Detecting Angle 150°(wall Mounting) 360°(ceiling Mounting) Operating Temperature -35℃~70℃
IP Rating IP20 Life Time 5 Years Warranty
High Light

microwave motion sensor

,

light motion sensor

,

North American Microwave Motion Sensor

Leave a Message
Product Description

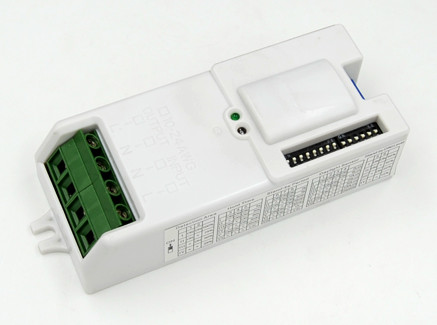

120-347Vac input intelligent microwave motion sensor with UL approval





1. Features

  • Built-in motion sensor & daylight sensor
  • On/Off, Step Dimming Function
  • Wide Input Voltage range 120/277/347Vac
  • 15m Max. Mounting Height
  • 1-10V & Synchronous Control Interface
  • Sensor parameter can be set via DIP switch.
  • 5 Year Guarantee



2. Parameters

Input Operating voltage 108-382V AC 50/60Hz
Rated voltage 120/277/347V AC 50/60Hz
Stand-by power ≤1.0W
Surge test N—L: 1kV
Output Working mode ON/OFF 1-10V dimming
Type of load Inductive or resistive
Load capacity

120V, 50/60Hz, 3.6A, ballast;

277V, 50/60Hz, 3.4A, ballast;

347V, 50/60Hz, 3.3A, ballast;

Max.surge capacity



30A (50% Ipeak, twidth =500uS, 230Vac full load, cold start); 60A (50% Ipeak, twidth =200uS, 230Vac, full load, cold start)
Dim interface 1-10V Dimming 1-10V 0.5mA @Max.
Sensor parameters Operating frequency 5.8 GHz ±75 MHz, ISM band
Transmitting power 0.5mW Max.
Hold time 5S/30S/90S/3min/20min/+∞
Stand-by dim Level 10%/20%/30%/50%
Stand-by Period 0S/5S/5min/10min/30min/1h/+∞
Detection Area 25%/50%/75%/100%
Daylight Sensor 2Lux/5Lux /10Lux 25Lux /50Lux /100Lux /Disable
Detection Radius Refer to detection pattern
Mounting height 3-12m (Max.12m)
Detecting Angle 150°(wall mounting) 360°(ceiling mounting)
Operating environment Operating Temperature -35℃...+70℃ Humidity: 85% (non-condensing)
Storage Temperature/humidity -40℃...+80℃ Humidity: 85% (non-condensing)
Certificate Standards Safety standards UL 60730-1
EMC standards FCC part 15
Environmental Requirement Compliant to RoHS
Certificate UL+CUL
Others Wiring Press-in terminals wire diameter: 10-24 AWG
IP Rating IP20
Protection Class Class II
Installation Built-in
Installation dimension Inch: 5.04 (mm: 128)
Package Bubble bag+ Clapboard+ Carton(K=A)
Net weight 119g
Life time 5 years warranty @Ta 277V/347V full load

Note

1. “N/A” means not available.

2. The detection range of the sensor is related to the moving speed and size of moving object, mounting height, installation height and angle, installation site, reflectors around the sensor etc. The data in the document is typical value and tested by a 165cm person in an open indoor area.

The detection range at wall mounting will be longer at ceiling mounting. Please reduce detection sensitivity at wall mounting or contact us to confirm the sensor data settings.



3.Function

1. On-off function (Stand-by Period“0s”)

120-347Vac input intelligent microwave motion sensor with UL approval 0

2. 2-step dimming function (Stand-by Period“+∞”)

120-347Vac input intelligent microwave motion sensor with UL approval 1

3. 3-step dimming function (Stand-by Period“5s/5min/10min/30min/1h”)

120-347Vac input intelligent microwave motion sensor with UL approval 2

4.Dimension (mm)

120-347Vac input intelligent microwave motion sensor with UL approval 3

Note: During installation, the microwave antenna should be exposed as shown in the figure to prevent metal from blocking and shielding the microwave signal.



5. Wiring

120-347Vac input intelligent microwave motion sensor with UL approval 4



*The sensor is designed for connect one load only. Connect more than one loads may damage the sensor.





6. Structure

120-347Vac input intelligent microwave motion sensor with UL approval 5



7. Detection pattern



1)Ceiling mounting

Height: 3m

Sensitivity: 100%/75%50%/25%

Height: 6m

Sensitivity: 100%/75%50%/25%

Height:9m

Sensitivity: 100%/75%50%/25%

Height: 12m(*)

Sensitivity: 100%/75%

120-347Vac input intelligent microwave motion sensor with UL approval 6

Fast moving (Speed: 1m/s)

120-347Vac input intelligent microwave motion sensor with UL approval 7

Fast moving (Speed: 1m/s)

120-347Vac input intelligent microwave motion sensor with UL approval 8

Fast moving (Speed: 1m/s)

120-347Vac input intelligent microwave motion sensor with UL approval 9

Fast moving (Speed: 1m/s)

120-347Vac input intelligent microwave motion sensor with UL approval 10

Slow moving (Speed: 0.3m/s)

120-347Vac input intelligent microwave motion sensor with UL approval 11

Slow moving (Speed: 0.3m/s)

120-347Vac input intelligent microwave motion sensor with UL approval 12

Slow moving (Speed: 0.3m/s)

120-347Vac input intelligent microwave motion sensor with UL approval 13

Slow moving (Speed: 0.3m/s)



*When installation height is 3 / 6 / 9 meters, movement signal can be detected at 25%/50%/75%/100% detection sensitivity. When at 12 meters, movement signal is only detected at 75% 100% sensitivity, no movement signal detected for 25%/50% sensitivity.



1)Wall mounting:

Wall mounted height: 2m

Sensitivity: 100%/75%/50%/25%

120-347Vac input intelligent microwave motion sensor with UL approval 14

Fast moving (Speed: 1m/s)

120-347Vac input intelligent microwave motion sensor with UL approval 15

Slow moving (Speed: 0.3m/s)





8. Dip switch settings



1. Detection Area

  1 2
ON ON 100%
ON - 75%
- ON 50%
- - 25%



2. Hold Time

  3 4 5
ON ON ON 5s
- ON ON 30s
ON - ON 90s
- - ON 3min
ON ON - 20min
VI - - - +∞



3. Stand-by Period

  6 7 8
ON ON ON 0s
- ON ON 5s
ON - ON 5min
- - ON 10min
ON ON - 30min
VI - ON - 1H
VII - - - +∞



4. Daylight Sensor

  1 2 3 4
ON ON ON ON 2Lux
- - - ON 5Lux
- ON ON - 10Lux
- - ON - 25lux
- ON - - 50lux
VI ON - - - 100lux
VII - - - - Disable



5. Dimming brightness preset function

  5 6
ON ON 50%
ON - 30%
- ON 20%
- - 10%



9. Initialization

1. On/Off function & 3-step dimming function: After power on, the sensor automatically turns on light at 100% brightness. After 10sec, it turns off the light. During the initialization, the sensor is not able to detect movement.

2. 2-step dimming function: After power on, the sensor automatically turns on light at 100% brightness. After 10sec, it dims the light to a low light level (set by stand-by dim level). During the initialization, the sensor is not able to detect movement.

10. Factory setting

Detection Area: 100%, Hold Time: 5S, Daylight Sensor: Disable, Stand-by Period: 0S,

Dimming brightness preset function: 10%

11. Application notice

1) The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switch.

2) The sensor which installed in the plastic and glass lampshade will reduce the sensitivity.For every 3mm increase in thickness, the sensitivity will be reduced by 20%.

3) The dimming performance could be different from different 0-10v drivers.

4) The light sensitivity threshold is in a sunny environment, no shadow and ambient light diffuse reflection. Ambient lux level could be different in different environment, weather, climate, time-of-day and season.

5) The parameters of the sensor may need to be reconfigured in different installation environments. Please refer to the following instructions or contact the manufacturer.

6) This sensor is for indoor use only. It will affect the waterproof effect for outdoor use. Wind, rain, and moving objects around will cause false triggering.

7) The distance between any inductive sensors should be greater than 3m.

8) When the sensor is installed in a metal lamp, metal reflective surface, or a narrow enclosed environment, the microwave will be reflected repeatedly and cause false triggering. Please reduce the sensitivity or contact the manufacturer for technical support.

9) Do not place the sensor close to high-density objects such as metal, glass,concrete walls, etc, false triggering could happen.

10) Please ensure that there are no moving signals around the sensor, such as fan,DC motor, sewer pipe, air outlet, etc., the sensor may generate false trigger.

11) For a new installation environment, it is recommended to install and test 5pcs of products before batch installation..
