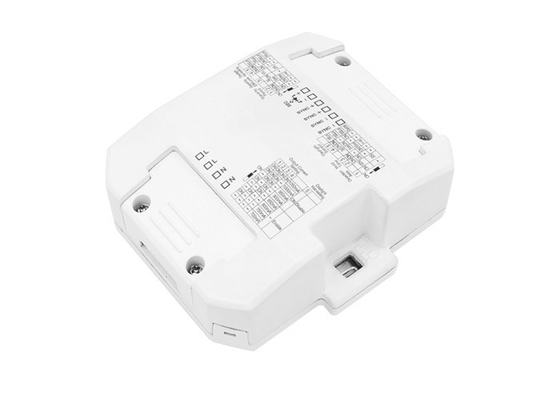

AC 220-240 Sensor Driver IP20 For Interlligent Office , 5 Year Warranty

Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MLC40C-M
Minimum Order Quantity 300pcs
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit
Payment Terms T/T, Western Union
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Input Voltage 220-240V AC 50Hz/60 HZ Input Current 255mA Max.
Efficiency 88% Max. (over Load@230VAC) Operating Temperature -25℃~+45℃
IP Rating IP20 Stand-by Power ≤1.0W
High Light

low voltage led driver


LED Panel Light Driver


Sensor Driver IP20

Leave a Message
Product Description


Flicker-free Sensor Dim LED Driver MLC40C-M Daylight Harvesting

One-stop Solution for Interlligent Office



1. Features


* Combined with microwave occupancy sensor, daylight harvesting sensor and flicker-free dimmable LED driver

* Provided one-stop solution for intelligent LED panel light producer

* Flexible current settings loop-in/loop-out press fit terminal for fast installation

* 5-year warranty



2. Parameters


Input Operating Voltage 198-264V AC 50HZ/60 HZ
Input Voltage 220-240V AC 50Hz/60 HZ
Input Current 255mA Max.
Power Factor ≥0.9
Efficiency 88% Max. (over load@230VAC)
Stand-by Power ≤1.0W
Wiring Method Shrapnel press terminal(L,L,N,N),
wire cross section:0.75-1.5mm2
Output Operating type Constant Current Mode
Load type LED
Load power 44W Max.
Ripple requirement
(Flickering or Flickering Free)
No-load output voltage <55VDC
Load output voltage 30-42VDC
Load output current 700/750/800/850/900/950/1000/1050mA
Constant current/voltage Precision Constant Current Precision ±5%
Wiring Method Shrapnel press terminal(LED+,LED-,SYNC+,SYNC+,SYNC-,SYNC-), wire cross section:0.75-1.5mm2
Interface Parameter Minor motion trigger
synchronous control interface
Daylight Harvesting Daylight Harvesting Function DH+,DH-
(co-operate with MS07 can achieve Daylight harvesting)
Daylight Harvesting 250Lux/350Lux/450Lux/550Lux
Sensor Parameter Detection Area 100% / 50%
Hold Time 5S/5min/15min/+∞
Daylight Sensor 50Lux/150Lux /300Lux /Disable
Stand-by Period 0S/10min/30min/+∞
Stand-by Dim Level 10%/25%
Detection Distance When the brightness is 100%, the minor motion detection radius is 0.5-2m,after the light is off, the normal motion detection radius is 0.5-3m.
Microwave Module Parameter HF Operating Frequency 5.8 GHz ±75 MHz,ISM Wave Band
Transmitting power 0.5mW Max.



Operating temperature -25℃~+45℃
Storage humidity 20-90%RH
Storage temperature -40℃~+80℃
Outer case max. temp(Tc) 85℃



Isolation pressurization Input(L,L,N, N)-Output (SEC+ SEC-) 3000V AC 5mA 60S
Safety requirement EN61347-1, EN61347-2-13
EMC EN55015,EN61000-3-2,EN61000-3-3,EN61547, EN61000-4-2,3,4,5,6,
Certification CE , RoHS
Others IP rating IP20
Protection Open circuit/short circuit/over load protection
Packaging requirement Indepent installation
Case dimension 110*92*40.5mm
Life 50000h
3. Dimension
AC 220-240 Sensor Driver IP20 For Interlligent Office , 5 Year Warranty 0
4. Wiring Diagram
AC 220-240 Sensor Driver IP20 For Interlligent Office , 5 Year Warranty 1

5. Function Diagram


AC 220-240 Sensor Driver IP20 For Interlligent Office , 5 Year Warranty 2


6. Sensor Setting



  • Current Setting (SW3)
Input current S1 S2 S3 S4 S5
1050mA ON ON ON ON

ON- when it is on constant light status

(The output current is fixed)

1000mA ON ON ON -
950mA - ON ON -
900mA ON - ON -
850mA - - ON -

OFF- when it is on constant light status

(Operate under sensing/daylight harvesting mode)

800mA - ON - -
750mA ON - - -
700mA - - - -


  • Detection Area Setting (SW1)
Detection Area S1
100% ON
50% -


  • Hold Time (SW1)
Hold Time S2 S3
5Min ON -
15Min - ON
+∞ - -


  • Daylight Sensor (SW1)
Daylight Sensor S4 S5
50Lux ON ON
150Lux ON -
300Lux - ON
Disable - -


  • Stand-by Period
Stand-by Period S1 S2
10Min ON -
30Min - ON
+∞ - -


  • Stand-by Dim Level
Stand-by Dim Level S3
10% ON
25% -



  • Daylight Harvesting
Daylight Harvesting S4 S5
250Lux ON ON
350Lux ON -
450Lux - ON
550Lux - -
