MLC18C-N Integrated Motion Sensor Driver Dimmable 18W LED Driver Non - Isolated

  • MLC18C-N Integrated Motion Sensor Driver Dimmable 18W LED Driver Non - Isolated
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MLC18C-N
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or Western Union or PayPal
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name MLC18C-N Output Current 300mA/350mA
Output Voltage 24-53V DC Isolation Class Class II
Output Load 19W Max. Stand-by Power ≤1W
Operating Type Dimming Control
High Light

low voltage led driver

,

LED Panel Light Driver

,

Dimmable Motion Sensor Driver
Leave a Message
Product Description

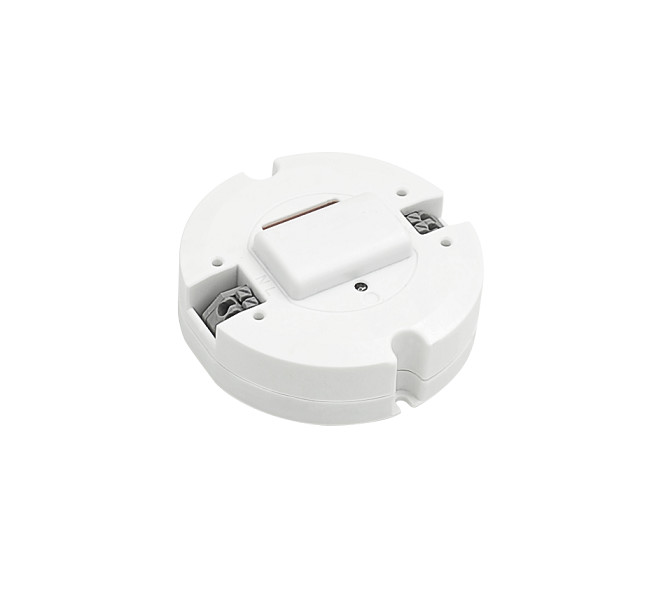

MLC18C-N Integrated Motion Sensor Dimmable 18W LED Driver Non-isolated



  • On-Off / 3-step dimming function for LED ceiling
  • Integration of microwave motion sensor and daylight sensor
  • Operating type:Dimming control, daylight priority
  • Stand-by power ≤1W
  • Detection area; hold time; stand-by period and daylight sensor can be set via DIP switch
  • 3 year warranty.



Parameters:



Input Operating Voltage 198-264V AC 50Hz/60HZ
Input Voltage 220-240V AC 50Hz/60HZ
Input Current ≤0.11A (230VAC, full load)
Power Factor 0.9 ( full load)
Efficiency ≥86% Max.230V full load
Stand-by Power ≤1W
Wiring Method Shrapnel terminal
Output Operating type Constant current
Load type LED
Ripple requirement (Flickering or Flickering Free) Flickering(But eyes cannot see the shake)
No-load output voltage 63V DC Max
Load output voltage range 24-53V DC
Full load output power 19W Max.
Load output current 300mA/350mA
Constant current/voltage Precision Constant Current Precision ±5%
Wiring Method Push terminal
Exception Protection Requirements Output over voltage Protection Yes
Output over load protection Yes
Output short circuit protection Yes
Sensor Parameter HF Operating Frequency 5.8 GHz ±75 MHz,ISM wave band
HF Radiated power 0.5mW Max.
Hold Time 5S/1min/5min/10min
Dimming Ratio 10% /25%
Stand-by Period 0S/1min/10min/+∞
Detection Area 50%/100%
Daylight Sensor 5lux / 25lux /50lux / Disable
HF Detection Area Radius 3-6m (Mounting height 3m)
Mounting Height: Suggested mounting Height:3-4m , 6m Max.
Detection Angle 150°(Wall Mounting), 360°(Ceiling Mounting)

Operating

Environment

 Operating temperature/ humidity -25℃~50℃ Humidity : 85% (Non-condensing)
Storage temperature/ humidity -40℃~80℃ Humidity : 85% (Non-condensing)
Outer case max. temp(Tc) 85℃

Safety

& EMC



 Isolation pressurization (L N)input-output,3000VAC/5mA/1min
Safety requirement EN61347-1
EMC EN55015
Certification CE
Others IP rating IP20
Protection level Class II
Installation size Φ68mm,H 26mm
Packaging requirement Bubble bag + clapboard + outer case(K=A
Life 30000h @ Ta 100% load




Dimension:



MLC18C-N Integrated Motion Sensor Driver Dimmable 18W LED Driver Non - Isolated 0



Wring Diagram:



MLC18C-N Integrated Motion Sensor Driver Dimmable 18W LED Driver Non - Isolated 1





Function:



MLC18C-N Integrated Motion Sensor Driver Dimmable 18W LED Driver Non - Isolated 2

MLC18C-N Integrated Motion Sensor Driver Dimmable 18W LED Driver Non - Isolated 3





Function Diagram:



MLC18C-N Integrated Motion Sensor Driver Dimmable 18W LED Driver Non - Isolated 4



Sensor Setting:

  • Detection Area
  1
100% ON
50% --
  • Hold time
  2 3
5s ON ON
1min ON
5min   ON
10min - -



  • Daylight Sensor (Disable//50Lux/25Lux/5Lux)
  4 5
5Lux ON ON
25Lux ON
50Lux - ON
Disable - -





  • Stand-by period
  7 8
0S ON ON
1min ON
10min   ON
+∞ - -
