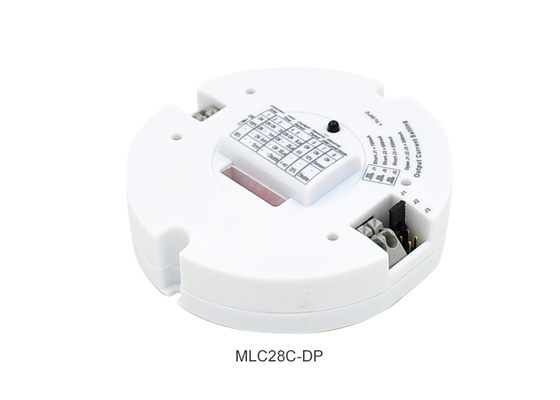

Sensor Dim Driver Daylight Priority Dimming Control Constant Current Compact Design Led Driver MLC28C-DP

  • Sensor Dim Driver Daylight Priority Dimming Control Constant Current Compact Design Led Driver MLC28C-DP
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MLC28C-DP
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or Western Union or PayPal
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name MLC28C-DP Output Current 350mA/550mA/600mA/700mA
Output Voltage 22-42V DC Isolation Class Class II
Output Load 30W Max. Stand-by Power ≤1W
Operating Type Dimming Control
High Light

low voltage led driver

,

LED Panel Light Driver

,

Dimming Control Sensor Driver
Leave a Message
Product Description



MLC28C-DP Integrated Motion Sensor Dimmable 28W LED Driver Non-isolated



1. Non-isolated power induction integrated power supply

2. Daylight priority function, automatically turn on/off according to natural light

3. Round ultra-thin size, multiple mounting methods, support for top and bottom, multiple fixing at the bottom

4. Output current can be set,8 DIP Switch to adjust parameters, easy to operate, easy to use

5. Input and output terminals for easy wiring





Parameters:



Input Operating Voltage 198-264V AC 50Hz/60HZ
Input Voltage 220-240V AC 50Hz/60HZ
Input Current ≤0.17A (230VAC, full load)
Power Factor 0.9 ( full load)
Efficiency ≥88% Max.230V full load
Stand-by Power ≤1W
Wiring Method Shrapnel terminal
Output Operating type Constant current
Load type LED
Ripple requirement (Flickering or Flickering Free) Flickering(But eyes cannot see the shake)
No-load output voltage 50V DC Max
Load output voltage range 22-42V DC
Full load output power 30W Max.
Load output current 350mA/550mA/600mA/700mA
Constant current/voltage Precision Constant Current Precision ±5%
Wiring Method Push terminal
Exception Protection Requirements Output over voltage Protection Yes
Output over load protection Yes
Output short circuit protection Yes
Sensor Parameter HF Operating Frequency 5.8 GHz ±75 MHz,ISM wave band
HF Radiated power 0.5mW Max.
Hold Time 0S/ +∞
Dimming Ratio 10% /25%
Stand-by Period 5S/ 1min/ 5min/ 10min
Detection Area 50%/100%
Daylight Sensor 5Lux(5Lux)/ 25Lux(75Lux)/ 50Lux(150Lux)/ Disable
HF Detection Area Radius 3-6m (Mounting height 3m)
Mounting Height: Suggested mounting Height:3-4m , 6m Max.
Detection Angle 150°(Wall Mounting), 360°(Ceiling Mounting)

Operating

Environment

 Operating temperature/ humidity -25℃~50℃ Humidity : 85% (Non-condensing)
Storage temperature/ humidity -40℃~80℃ Humidity : 85% (Non-condensing)
Outer case max. temp(Tc) 85℃

Safety

& EMC



 Isolation pressurization (L N)input-output,3000VAC/5mA/1min
Safety requirement EN61347-1
EMC EN55015
Certification CE
Others IP rating IP20
Protection level Class II
Installation size Φ82mm,H 26mm
Packaging requirement Bubble bag + clapboard + outer case(K=A
Life 30000h @ Ta 100% load




Dimension:



Sensor Dim Driver Daylight Priority Dimming Control Constant Current Compact Design Led Driver MLC28C-DP 0



Wring Diagram:



Sensor Dim Driver Daylight Priority Dimming Control Constant Current Compact Design Led Driver MLC28C-DP 1





Function:



Sensor Dim Driver Daylight Priority Dimming Control Constant Current Compact Design Led Driver MLC28C-DP 2

Sensor Dim Driver Daylight Priority Dimming Control Constant Current Compact Design Led Driver MLC28C-DP 3





Function Diagram:



Sensor Dim Driver Daylight Priority Dimming Control Constant Current Compact Design Led Driver MLC28C-DP 4



Sensor Setting:

  • Detection Area
  1
100% ON
50% --
  • Hold time
  6
0s ON
+∞



  • Daylight Sensor (Disable//50Lux/25Lux/5Lux)
ON OFF 4 5
5Lux 25Lux ON ON
25Lux 75Lux ON
50Lux 150Lux - ON
Disable Disable - -





  • Stand-by period
  2 3
7S ON ON
1min ON
5min   ON
10min





Stand-by DIM Level



  7
10% ON
25%





Mode



  8
Sensor ON
Disable
