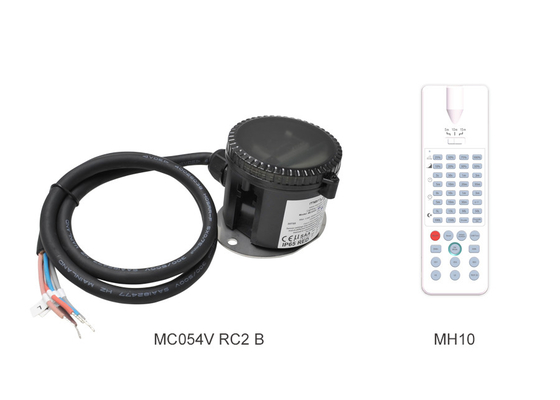

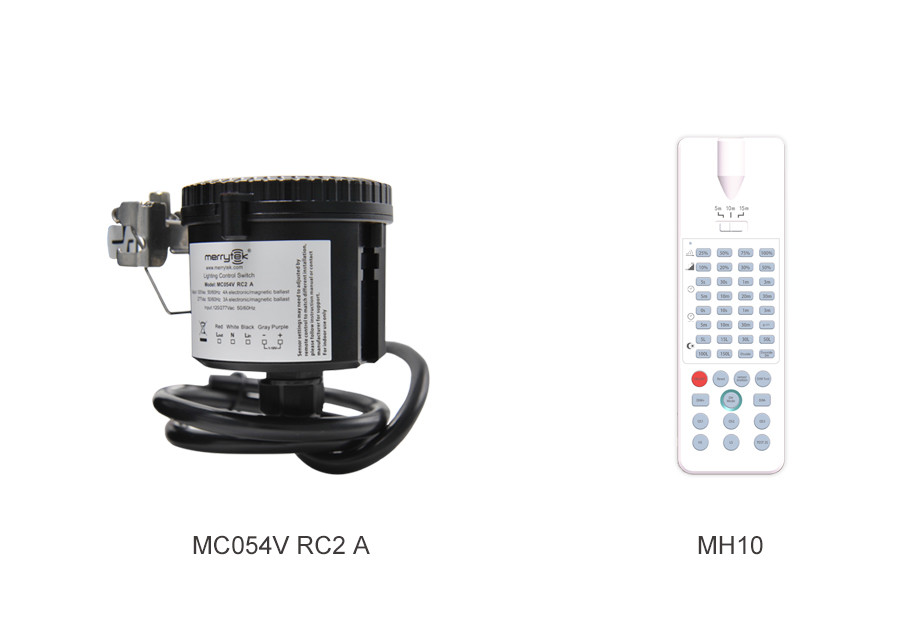

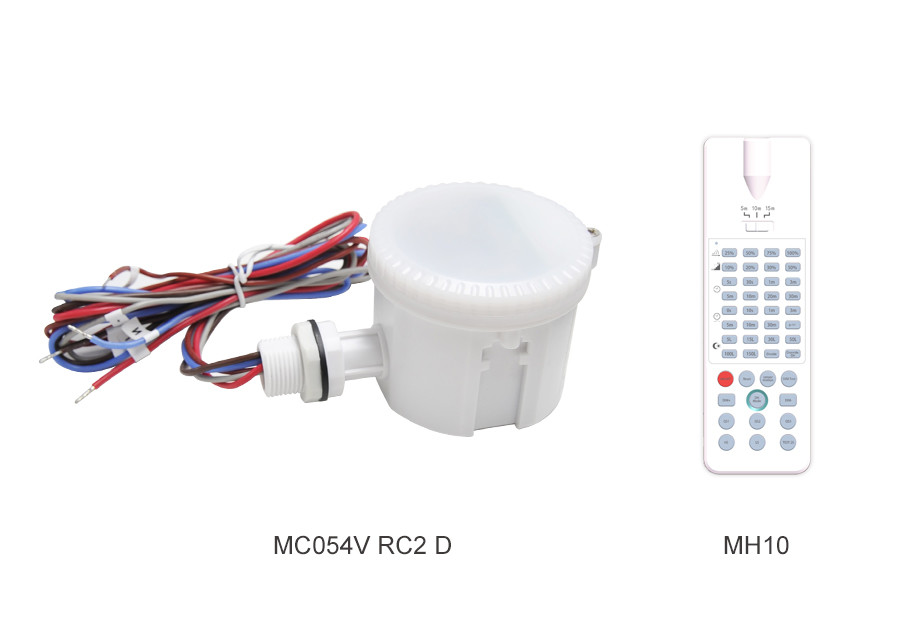

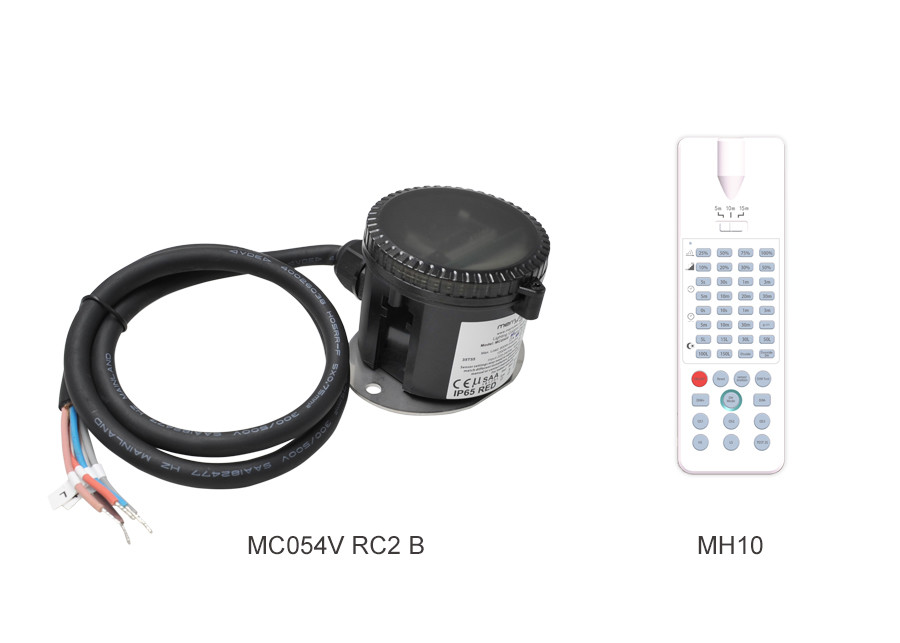

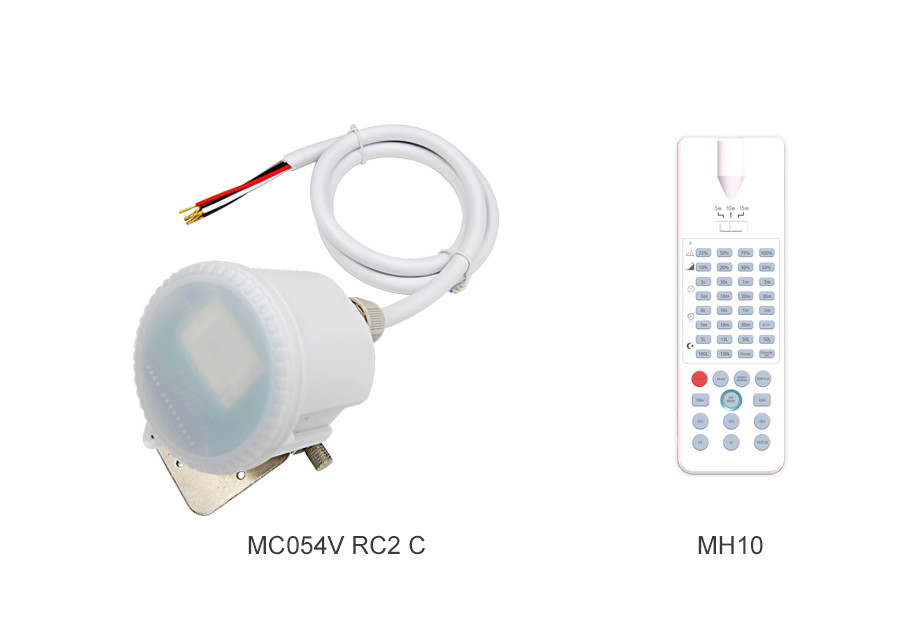

Stand Alone Dimmable Motion Sensor IP65 120 - 277Vac New Patented Remote Control

  • Stand Alone Dimmable Motion Sensor IP65 120 - 277Vac New Patented Remote Control
  • Stand Alone Dimmable Motion Sensor IP65 120 - 277Vac New Patented Remote Control
  • Stand Alone Dimmable Motion Sensor IP65 120 - 277Vac New Patented Remote Control
  • Stand Alone Dimmable Motion Sensor IP65 120 - 277Vac New Patented Remote Control
Place of Origin China
Brand Name Merrytek
Certification UL
Model Number MC054V RC 2 A/B/C/D
Minimum Order Quantity 500pcs
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or western Union
Supply Ability 20,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Voltage 108-305V AC, 50Hz/60Hz Rated Voltage 120/277Vac,60Hz
Stand-by Power <1W Working Mode ON/OFF Function, 1-10V Step Dimming
Operating Temperature -35℃~55℃ Certificate CULus, CE, SAA, FCC, RED
IP Rating IP65 Dimension (ΦxH)72*59mm
Lifetime 50,000h @ Ta Full Load
High Light

microwave motion sensor

,

high bay motion sensor
Leave a Message
Product Description

MC054V RC 2 Stand Alone Microwave Dimmable Motion Sensor IP65 120-277Vac For High Bay





1. Features



Stand Alone Dimmable Motion Sensor IP65 120 - 277Vac New Patented Remote Control 0



1. Operating voltage 120~277V AC, suitable to Euro & North American market.



2. Patented microwave antenna, mounting height is 15m Max, suitable to install in most of warehouses.



3. Supports high-sensitivity and low-sensitivity modes (for metal ceilings, metal reflector mounting environments)



4. Work with 1-10V dimmable LED driver, easy to achieve 2-step or 3-step dimming function.



5. New patented remote control to adjust the launch angle to avoid misuse.



6. Dim+/Dim- to set occupany light level





2. Parameter



Input Operating Voltage Rage 108-305V AC, 50Hz/60Hz
DC Input Voltage N/A
Rated Voltage 120-277Vac,60Hz
No-load Power N/A
Stand-by Power <1W
Surge Test L--N: 1kV
Output Working Mode ON/OFF function, 1-10V step dimming
Type of Load Inductive or resistive Load
Load Capacity 120VAC: 4A; 220-277VAC: 3A
Current of Load N/A
Max. Surge Capacity

50A (50% Ipeak, twidth =500uS, 230Vac full load, cold start);

80A (50% Ipeak, twidth =200uS, 230Vac, full load, cold start)
Dim Interface 1-10V Dimming

< 50mA (Non-constant source)

10%(1.4-1.6V), 20%(1.9-2.1V),

30%(2.9-3.1V), 50% (4.9-5.1V)
Synchronous Control N/A
High Low-level N/A
PWM Control N/A
Sensor Parameters Operating Frequency 5.8 GHz ±75 MHz, ISM Band.
Transmitting power 0.5mW Max.
Hold time 5s/30s/1min/3min/5min/10min/20min/30min
Stand-by DIM Level 10%/20%/30%/50%
Stand-by Period 0s/10s/1min/3min/5min/10min/30min/+∞
Detection Area 25%/50%/75%/100%
Daylight sensor 5lux/15lux/30lux/50lux/100lux/150lux/Disable (Ambient light diffusion)
Detecting Radius See detection pattern
Mounting Height 15m Max
Detecting Angle 150°(wall mounting), 360°(ceiling mounting)
Wireless Module Operating Frequency N/A
Transmitting power N/A
Transmitting distance N/A
Modulation mode N/A
Number of coding N/A

Operating

Environment

 Operating Temperature -35℃~55℃
Storage Temperature Temperature:-40℃~80℃;Humidity:10%-95% (non-condensing)
Certificate Standards Safety standards

IEC60669-2-1, IEC60669-1

AS/NZS 60669.1, AS/NZS 60669.2.1

UL60730-1
EMC standards

EN55015, EN61000-3-2, EN61000-3-3, EN61547

AS/NZS CISPR 15, AS/NZS 4268

FCC Part 15C, Part 15B

EN 60950-1, EN301489-1, EN 201489-3, EN300440
Environmental Requirement Compliant to RoHS
Certificate cULus, CE, SAA, FCC, RED
Others Wiring SJTW,5*18AWG (USA); H05RR-F,5*18AWG (Europe,Australia)； exposed line length: 810-830mm
Wiring color Sheath: Black Core: Red,White,Black,Gray,Purple (US); blue, brown, red, purple,Gray (Europe, Australia)
IP Rating IP65
Protection Class Class II
Installation Independent
Dimension (ΦxH)72*59mm
Package Instruction+ White box+ White box tags+ Clapboard+ Carton(K=A)
Net Weight

MC054V RC A: 225g, MC054V RC B:246g,

MC054V RC C:225g , MC054V RC D:165g
Lifetime 50,000h @ Ta Full load

Note

1. “N/A”means not available.

2. Detection area is effected on volume of motion object and motion speed. The detection area is tested by a 165cm height person and walking speed is 0.5m/s.


3. Function

1) ON/OFF function, (stand-by period be set to "0"S)

Stand Alone Dimmable Motion Sensor IP65 120 - 277Vac New Patented Remote Control 1



2) 2-step dimming function (stand-by period be set to “+∞”)

Stand Alone Dimmable Motion Sensor IP65 120 - 277Vac New Patented Remote Control 2

3) 3-step dimming function (stand-by period be set to “10s/1min/3min/5min/10min/30min”)

Stand Alone Dimmable Motion Sensor IP65 120 - 277Vac New Patented Remote Control 3





4. Dimension (mm)



1)MC054V RC 2 A,MC054V RC 2 B, MC054V RC 2 C

Stand Alone Dimmable Motion Sensor IP65 120 - 277Vac New Patented Remote Control 4



2) MC054V RC 2 D

Stand Alone Dimmable Motion Sensor IP65 120 - 277Vac New Patented Remote Control 5





5. Wiring



Stand Alone Dimmable Motion Sensor IP65 120 - 277Vac New Patented Remote Control 6



6. Function Diagram



Stand Alone Dimmable Motion Sensor IP65 120 - 277Vac New Patented Remote Control 7





7. Remote Control



Stand Alone Dimmable Motion Sensor IP65 120 - 277Vac New Patented Remote Control 8
