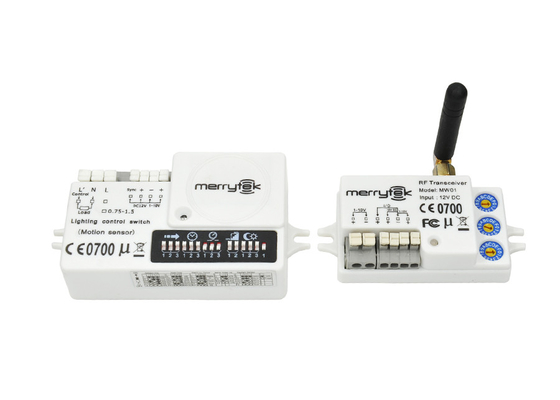

MC003V/CP+MW01 HF Wireless Motion Detector RF Wireless Transceiver Easy Installation
| Place of Origin | China |
|---|---|
| Brand Name | Merrytek |
| Certification | CE |
| Model Number | MC003V/CP+MW01 |
| Minimum Order Quantity | 300pcs |
| Price | Negotiation |
| Packaging Details | Clapboard +Outer Carton （K=A） |
| Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Payment Terms | T/T or western Union |
| Supply Ability | 20,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operating Voltage (MC003V/CP) | 220-240Vac, 50Hz/60Hz | Operating Voltage(MW01) | 12VDC |
|---|---|---|---|
| Mounting Height | 10m Max. | Module Groups | Up To 16 Different Groups |
| Detection Sensitivity | 100% / 75% / 50% / 25% / 10% | Daylight Sensor | 5lux / 10lux / 30lux / 50lux / Disable |
| Highlight | wireless motion detector,dimming motion sensor,HF Wireless Motion Detector |
||
Product Description

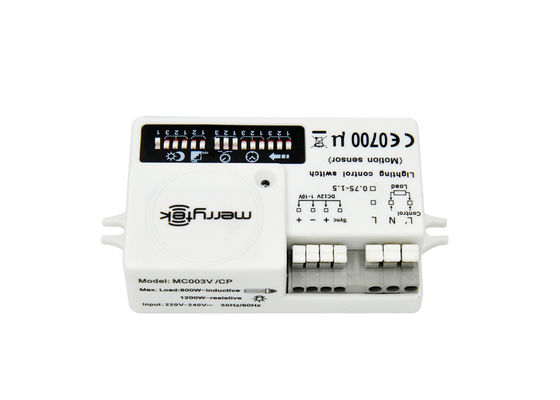

MC003V/CP+MW01, HF Motion Detector +RF Wireless Transceiver, Easy Installation and Free of Wire, for Wireless Networking of Luminaires,
1. Features
1.1 Used in wireless networking of luminaires, easy installation and free of wire.
1.2 With fixed code, very easy to set up any-to-any communication.
1.3 By digital receiving and transmitting method, high anti-interference capability and no interference to any RF sensitive device, for example, electronic keys of cars.
1.4 With advanced code detection technology, no code missing.
1.5 Merrytek takes the lead in using the rotary coding switch in RF transceiver, very easy to create groups.
2. Parameter
3. Function
1) RF Wireless Control
Motion detector MC003V/CP + RF wireless transceiver MW01 + 1-10V dimmable LED driver (Any brand)
Any-to-any communication
Once any motion is detected, the motion signal will be transmitted to other grouped sensors through RF transceiver.
See example below. When the person walks to one of floors, the lamps in adjacent floors will switch on at a preset
low light level synchronously.
Point-to-multipoint communication
In addition, MC003V/CP and MW01 can be used in cluster-control. See below picture, there are several exits / entrances to the corridor. Any sensor (Master) in the exits / entrances is triggered, all lamps in the corridor light up.
Wiring scheme: same as the wiring scheme of any-to-any communication.
2) RF grouping (up to 16 different groups possible)
Thanks to digital communication method and fixed address code, the module has high anti-interference capability and no interference to any RF sensitive device, for example, electronic keys of cars.
The RF transceiver can meet following communication modes.
1/ Any-to-any communication
2/ Directional communication
3/ Broadcast communication

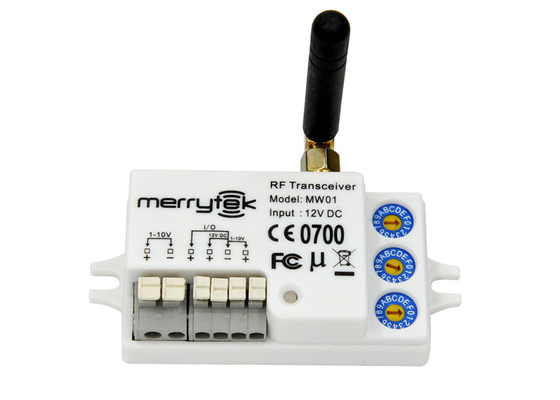

Each RF transceiver has 1 TXD and 2 RXD. TXD channel is used for transmitting RF signal and RXD channel is used for receiving the RF signal. Only need to set the same address code in TXD and RXD, the RF modules can automatically set up group. Address code can be easily set via rotary coding switch. See below examples.
Any-to-any communication
Point-to-multipoint communication
3) Detection Pattern
4. Dimension (mm)
MC003V/CP MW01
5. Wiring
MC003V/CP
MW01
