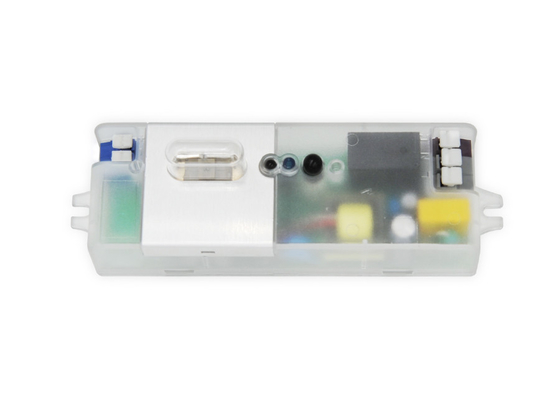

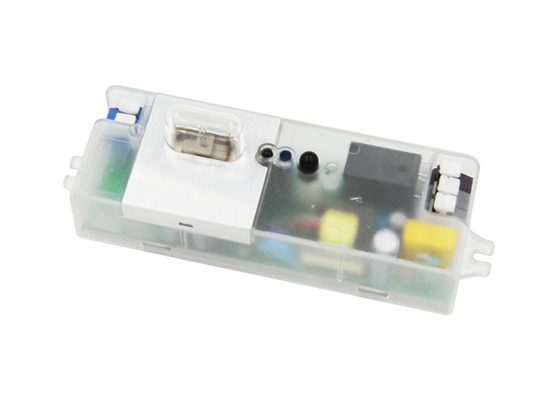

0-10V Dimming Linear Motion Sensor for North America Market MC087V RC with on/off function
Place of Origin | China |
---|---|
Brand Name | Merrytek |
Certification | UL |
Model Number | MC087V RC |
Minimum Order Quantity | 100pcs |
Price | Negotiable |
Packaging Details | Bubble bag + partition + outer box (K=A) |
Delivery Time | within 5 working days for sample and small order; within 3-4 weeks for bulk order |
Payment Terms | T/T, Western Union |
Supply Ability | 10,000pcs per Month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xInput Voltage | 108-305V AC 50/60Hz | Rated Voltage | 120/277V AC 50/60Hz |
---|---|---|---|
Stand-by Power | ≤1W | Load Capacity | 2A @120Vac ,3A@277Vac, 3A@220-240Vac |
Working Mode | ON/OFF Function, 1-10V Step Dimming | Operating Temperature | -25℃…+60℃ |
Mounting Height | 6m Max | Operating Frequency | 5.8GHz ±75 MHz, ISM Band. |
IP Rating | IP20 | Lifetime | 5 Years Warranty@Ta 230V Full Load |
Highlight | Dimming Linear Motion Sensor,MC087V RC Linear Motion Sensor,Remote Control Linear Motion Sensor |
Linear Microwave Motion Sensor with 0-10V Dimming for North America Market MC087V RC
For more details, pls refer to as follows:
MC087V RC spec A2 2022.09.23.pdf
1. Features
-
Newly designed patent needle, overcome the shortage of traditional needle antenna, no blind detection area
-
Stable performance when mount in metal roof warehouse
-
Slim cut-hole size, fit for tri-proof light, batten, troffer
-
All parameters can be set by remote control
-
Override function
-
5 years warranty
2. Parameters
3.Function
1) On/OFF Function (stand-by period be set to “0”s)
2) 2-step dimming function (stand-by period be set to “+∞”)
3) 3-step dimming function (stand-by period be set to “10S/1min/3min/5min/10min/30min”)
4) Daylight priority(Long press 3S MH10 “DH Mode”, daylight sensor be set to ”5lux/15lux/30lux/50lux/100lux/150lux”)
4.Dimension (mm)
5.Wiring
*The sensor is designed for connect one load only. Connect more than one loads may damage the sensor.
6. Structure and installation
7. Installation directive
1) Sensor antenna must be out of LED plate
8. Radiation pattern
9. Remote control
11. Factory Setting
Detection area: 100%, Hold Time: 5S, Stand-by Period: 0S, Stand-by dim level: 10%, Daylight Sensor: Disable
12. Application Notice
1) The sensor should be installed by professional electricians. Please turn off power before installing, wiring, and setting parameters.
2) Microwaves cannot penetrate metal. Do not place product in a closed or a half-closed metal lamp. Neither metal nor glass is not allowed to cover the product. If antenna needs to pass through the metal flat, please ensure that the top of sensor is close to the metal flat.
3) The distance among sensors should be greater than 3 meters. Keep sensor at least 1.5 meters away from switches, routers and other wireless devices to avoid interference. The antenna surface of microwave sensor should be away from input AC and output DC to avoid low or high frequency signals affecting the normal operation of microwave sensor’s antenna.
4) Vibration signals will be regarded as moving signals to trigger sensor. Installing sensor should be away from the object that vibrates for a long time, such as large metal equipment, pipes, air conditioning outlets, exhaust vents, smoke exhaust machine ports, shaking fans, etc. Pets in detecting area may trigger sensing.
5) Sensor is for indoor use only. When installed outdoor or half-outdoor, the waterproof effect will be affected. Wind, rain, and moving objects may cause false triggering. When the sensor is installed in a metal lamp, on a metal reflective surface, or in a narrow enclosed device, microwave will be reflected repeatedly and cause false triggering. Please reduce the sensitivity of sensor or contact manufacturer for technical support.
6) This product is suitable for ceiling mounting. If wall mounting, the detecting area will enlarge which makes microwave penetrate wall or light not turn off. Please change sensitivity to 25%. If 25% is useless, please avoid wall mounting or contact the manufacturer for technical support.
7) Due to continuous improvement, the contents of this instruction will be changed without prior notice.
8) The effect of low brightness will be different when connecting to different 1-10V drivers. The daylight thresholds are measured on a sunny day without shadow and in an ambient light diffuse reflection status. Different environment and climate cause different brightness values that daylight sensor measures.
9) Sensitivity area is related to moving speed of objects, size of moving objects, mounting height, mounting angle, installation environment, reflecting materials and others.
10) Given detecting area is typical value that is measured by 165cm high testers in an indoor open environment.
11) When installing in new environment, please install and test at least 5pcs product firstly before mass installation.
12)This product is only suitable for surface mounting
