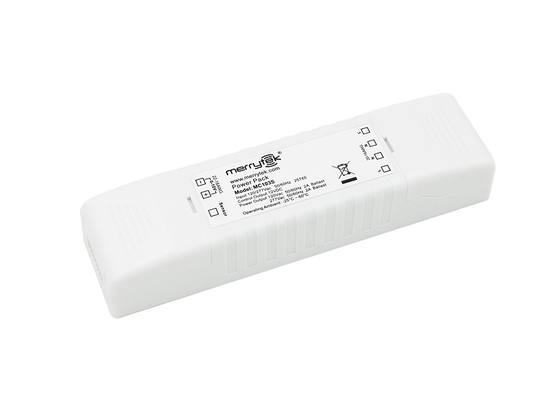

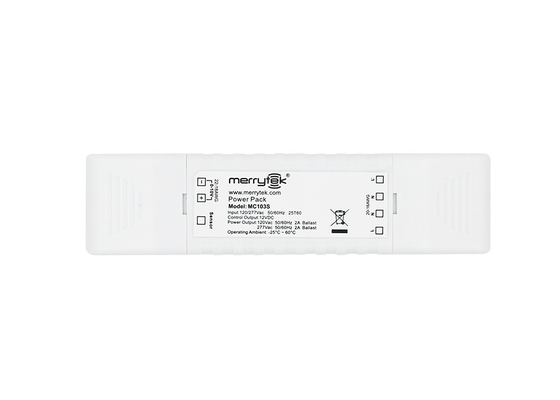

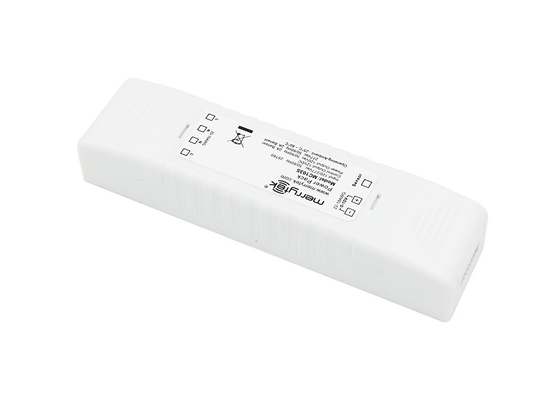

US Market MC103S DC Sensor 1-10v Interface for Corridor Function
| Place of Origin | China |
|---|---|
| Brand Name | Merrytek |
| Certification | UL |
| Model Number | MC103S |
| Minimum Order Quantity | 100pcs |
| Price | Negotiation |
| Packaging Details | Cartons |
| Delivery Time | 1, Sample and small order: within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Payment Terms | T/T, Western Union Or Paypal |
| Supply Ability | 10,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Input | 120-277Vac | Output | 120-277Vac |
|---|---|---|---|
| Auxiliary Output | 12Vdc | Working Mode | ON/OFF, 1-10V Dimming |
| Stand-by Power | ≤1W | ||
| Highlight | Corridor Function DC Sensor,US Market MC103S DC Sensor,10v Interface DC Sensor |
||
Product Description
Power Supply for DC Sensor with 1-10v Interface for Corridor Function Suitable for US Market MC103S
1. Features
■ Input 120-277Vac
■ Output 120-277Vac
■ Auxiliary output 12Vdc
■ Built-in relay,switch on/off power by relay
■ 1-10V interface for corridor function with sensor
■ 5 years warranty
2. Parameter
| Input | Input Voltage | 108-305VAC |
| Rated Voltage | 120-277VAC | |
| Stand-by Power | ≤1W | |
| Surge | L-N 1KV | |
| Wiring | Press-in terminals 0.75-1.5mm2 | |
| Output | Ouput voltage | 12Vdc |
| Sensor Parameters | Working mode | ON/OFF,0-10V dimming |
| Transmitting power | 0.5mW Max. | |
| Load Capacity |
120V,50/60Hz,2A ballast |
|
| 0-10V dimming |
<50mA |
|
| Wiring | Press-in terminals 0.75-1.5mm2 | |
|
Operating Environment |
Operating Temperature | -25℃…+60℃ |
| Storage Temperature |
Temperature: -40℃…+80℃; |
|
| EMC standards | EN55015, EN61000-3-2, EN61000-3-3, EN61547 | |
| Safety standard | EN61347-1,EN61347-2-13 | |
| Environmental Requirement | Compliant to RoHS | |
| Certificate | CE pending | |
| IP Rating | IP20 | |
| Protection Class | Class II | |
| Installation | Built-in/stand-alone | |
| Dimension | 120x30x22mm | |
| Package | cartons | |
| Net Weight | 58g | |
| Lifetime | 5 years warranty @Ta 230V full load |
3. Function (Below function is available only work with Merrytek DC sensor)
1) On/OFF Function (stand-by period be set to “0”s)
2) 2-step dimming function (stand-by period be set to “+∞”)
3) 3-step dimming function (stand-by period be set to “10S/1min/3min/5min/10min/30min”)
4. Dimension (mm)
5. Wiring
6. Wiring example when combined with Merrytek DC sensor
7. Application Notice
1) The sensor should be installed by a professional electrician. Please turn off the power before installing or wiring.
2) MC103S can only work with Merrytek DC sensor,please contact with Merrytek sales for right DC sensor model No.accroding to your application.
