| Place of Origin: | China |
|---|---|
| Brand Name: | Merrytek |
| Certification: | CE |
| Model Number: | MSA042D Z1 |
| Minimum Order Quantity: | 100pcs |
| Price: | Negotiation |
| Packaging Details: | Color box + flat card + outer box (K=A) |
| Delivery Time: | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Payment Terms: | T/T or Western Union or PayPal |
| Supply Ability: | 10,000pcs per month |
| Detecting Technology: | Movement / Minor Motion / Breathing / Daylight Harvesting | Working Mode: | Tuya Zigbee |
|---|---|---|---|
| Rated Voltage: | DC 12-24V | Transmitting Power: | 0.5mW Max. |
| Working Current: | 15mA Max (@30V DC) | ||
| High Light: | Breathing Detecting Lifebeing Occupancy Motion Sensor,MSA042D Z1 CE Wireless Motion Sensor,2.4G ZigBee Protocol Wireless Motion Sensor |
||

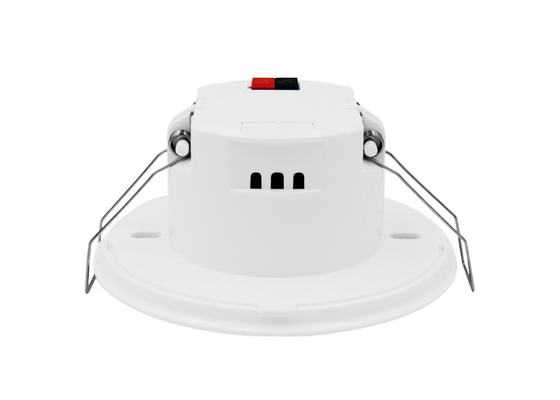

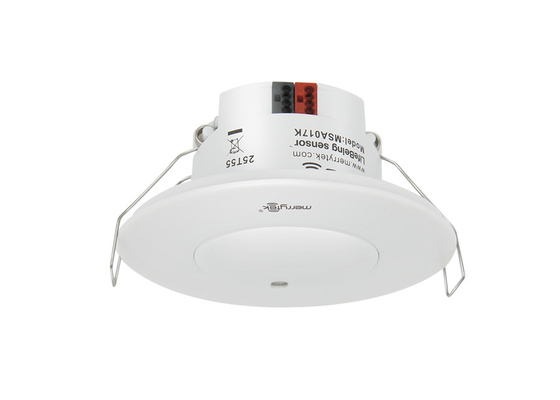

Lifebeing Occupancy Motion Sensor for breathing detecting With Tuya Zigbee wireless Communication MSA042D Z1
Features :
1) Built-in LifeBeing motion sensor and daylight sensor.
2) It can accurately detect and distinguish big motion, minor motion, breathing signals and illumination changes to interact with different lights, air conditioners, background music, etc.
3) Based on 2.4G ZigBee protocol, can connect with variousTuya smart devices, and controlled by Tuya App.
4) 12-24V DC input.
5) Effectively resist 5G, Wi-Fi, Bluetooth and other wireless signal interference due to the patented low-impedance antenna design.
6) Independently flush-mounted.
| Rated Voltage | 12-24v DC |
| Working Current | 32±2mA(12V DC) |
| Detecting Technology | Movement / minor motion / breathing |
| Communication Method | Tuya Zigbee communication protocol |
| Operating Frequency | 5.8 GHz ±75 MHz, ISM band |
| Transmitting Power | 0.5mW Max. |
| Operating Temperature | -25~50℃ |
| IP Rating | IP20 |
| Cut Size | φ55-65mm |
| Installation Mode | Embedded installation |
