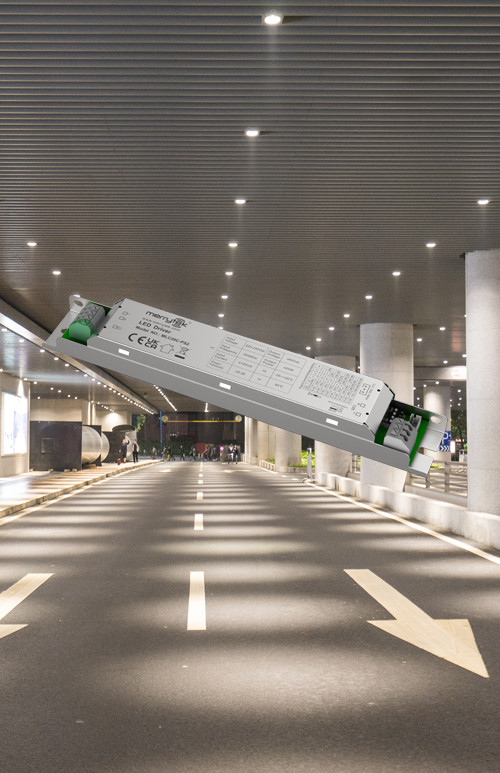

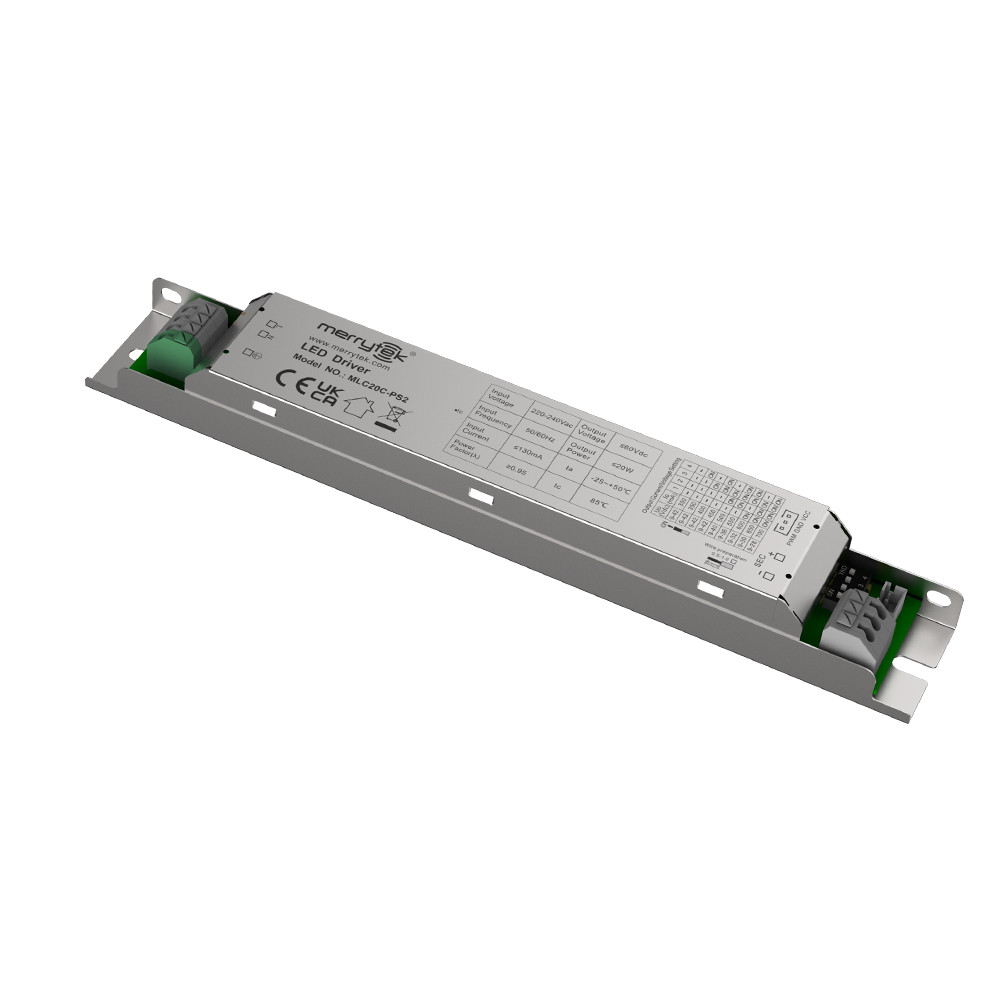

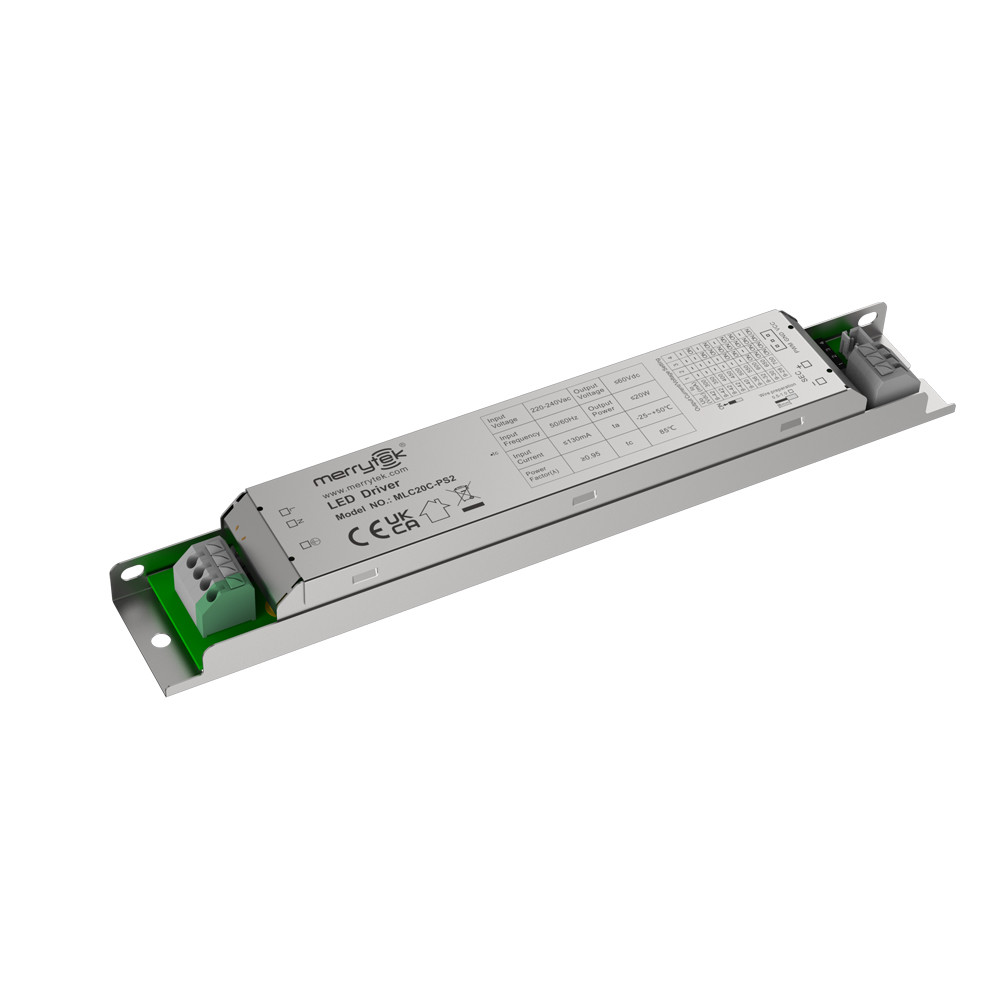

20W Motion Sensor Driver With PWM Dimming Function For Parking Area

Input

Input current

≤0.13A @230VAC full load

Rated voltage

220-240V AC 50Hz/60Hz

Stand-by power

≤0.5W

Power factor

≥0.95(@230V Max load)

Working efficiency

≥83% (@230V Max load)

THD

≤20%(@230V Max load)

Leak current

<0.5mA/240V

Inrush current

<15A(100us half-current)@230V AC

Output

Working model

Type of load

Flick

≤2%

Constant current accuracy

Constant current accuracy ±5%

No-load output voltage

60VDC Max

Full load power

20W Max

Load current

300mA/350mA :9-42V

400mA/450mA/450mA:9-42V

500mA:9-40V

550mA:9-36V

600mA:9-32V

650mA:9-30V

700mA:9-28V

Load output voltage range

9-42V DC

Interface

PWM control interface

PWM (3.3V 5V)

Connection mode of interface end

3pin terminal

Auxiliary driver parameters

Voltage

8.5±1V

Current

25mA max

Abnormality Protection Requirements

Input overvoltage protection

Yes, self-recovery

Input no-load protection

Input short-circuit protection

Environmental requirements

Operating temperature

-25…+50℃

Maximum shell temperature(Tc)

85℃

Storage temperature/humidity

-40℃…+80℃ Humidity: ≤85% (non-condensation)

Certificate Standards

Safety standards(LVD)

EN61347-1, EN61347-2-13

EMC standards

EN55015, EN61547, EN61000-3-2, EN61000-3-3

Surge

L N:1KV (different mode) L N to ground 2KV (common mode)

Withstand voltage

Primary to secondary: 3000VAC;

Primary to ground :1500VAC

Environmental requirement

RoHS

Certificate

CE SAA

Wiring method

Press terminal, wire diameter:0.5-1.0mm²

IP Rating

IP20

Protection class

Class I

Installation

Built-in

Package

PE bag clapboard, carton(K=A)

Installation size

195mm*30mm*20.5mm

Net weight

113.5±3g

Lifetime

5 years warranty@Ta 230V full load

I rated (CC)

Load voltage

S1

S2

S3

S4

300mA

9-42V

-

-

-

-

350mA

9-42V

-

-

-

400mA

9-42V

-

-

-

450mA

9-42V

-

-

500mA

9-40V

-

550mA

9-36V

-

ON

600mA

9-32V

ON

650mA

9-30V

ON

700mA

9-28V

ON
