40W Step Dim Motion Sensor With Dimmable Driver Function For Parking Area

  • 40W Step Dim Motion Sensor With Dimmable Driver Function For Parking Area
  • 40W Step Dim Motion Sensor With Dimmable Driver Function For Parking Area
  • 40W Step Dim Motion Sensor With Dimmable Driver Function For Parking Area
Place of Origin Shenzhen, China
Brand Name Merrytek
Certification CE, SAA
Model Number MLC40C-PS
Minimum Order Quantity 100PCS
Price Negotiation
Packaging Details PE bag clapboard, carton
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Current ≤0.23A @230VAC Full Load Rated Voltage 220-240V AC 50Hz/60Hz
Stand-by Power ≤0.5W Power Factor ≥0.95(@230V Max Load)
IP Rating IP 20 Installation Built-in
High Light

40W Step Dim Motion Sensor

,

dimmable driver Dim motion sensor

,

parking area Dim motion sensor
Leave a Message
Product Description

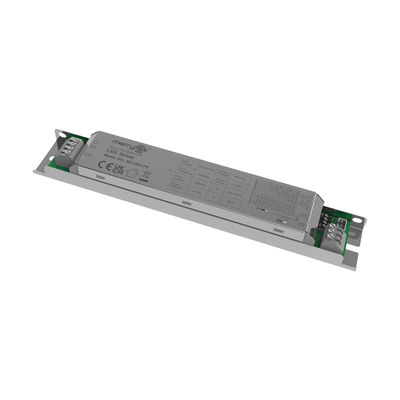

MLC040C-PS Sensor DIM LED Driver

For more details, pls refer to as follows:

MLC20C-PS2 MLC40C-PS MLC60C-PS Spec.doc



【Product Feature】

1. Linear metal housing isolated dimmable LED drive, flicker-free, PWM dimming.

2. Multi current optional via DIPs, with PWM control interface.

3. Match different microwave sensors or wireless intelligent modules.

4. Meet CE/TUV/CCC/SAA certificates and ERP requirements.



【Parameter】

Input Input current ≤0.23A @230VAC full load
Rated voltage 220-240V AC 50Hz/60Hz
Stand-by power ≤0.5W
Power factor ≥0.95(@230V Max load)
Working efficiency ≥85% (@230V Max load)
THD ≤20%(@230V Max load)
Leak current <0.5mA/240V
Inrush current <20A(100us half-current)@230V AC
Output Working model CC
Type of load LED
Flick ≤2%
Constant current accuracy Constant current accuracy ±5%
No-load output voltage 60VDC Max
Full load power 40W Max
Load current

450mA/500mA/550mA

600mA/650mA/700mA

750mA/800mA/850mA

900mA
Load output voltage range 9-45V DC
Interface PWM control interface PWM (3.3V 5V)
Connection mode of interface end 3pin terminal
Auxiliary driver parameters Voltage 8.5±1V
Current 25mA max
Abnormality Protection Requirements Input overvoltage protection Yes, self-recovery
Input no-load protection Yes, self-recovery
Input short-circuit protection Yes, self-recovery
Environmental requirements Operating temperature -25…+50℃
Maximum shell temperature(Tc) 85℃
Storage temperature/humidity -40℃…+80℃ Humidity: ≤85% (non-condensation)
Certificate Standards Safety standards(LVD) EN61347-1, EN61347-2-13
EMC standards EN55015, EN61547, EN61000-3-2, EN61000-3-3
Surge L N:1KV (different mode) L N to ground 2KV (common mode)
Withstand voltage

Primary to secondary: 3000VAC;

Primary to ground :1500VAC
Environmental requirement RoHS
Certificate CE SAA
Wiring method Press terminal, wire diameter:0.5-1.0mm2
IP Rating IP20
Protection class Class I
Installation Built-in
Package PE bag clapboard, carton(K=A)
Installation size 195mm*30mm*20.5mm
Net weight 140±3g
Lifetime 5 years warranty@Ta 230V full load



【Product characteristic Test】



40W Step Dim Motion Sensor With Dimmable Driver Function For Parking Area 040W Step Dim Motion Sensor With Dimmable Driver Function For Parking Area 1



【Lifetime Curve】



40W Step Dim Motion Sensor With Dimmable Driver Function For Parking Area 2



【Dimension (mm)】

40W Step Dim Motion Sensor With Dimmable Driver Function For Parking Area 3



【 Wiring 】



40W Step Dim Motion Sensor With Dimmable Driver Function For Parking Area 4



【 Structure 】



40W Step Dim Motion Sensor With Dimmable Driver Function For Parking Area 5

【DIP Switch Setting 】

MLC040C-PS current gear settings

I rated (CC) Load voltage S1 S2 S3 S4
450mA 9-45V - - - -
500mA 9-45V - - - ON
550mA 9-45V - - ON -
600mA 9-45V - - ON ON
6500mA 9-45V - ON - ON
700mA 9-45V - ON ON -
750mA 9-45V - ON ON ON
800mA 9-45V ON ON - ON
850mA 9-45V ON ON ON -
900mA 9-45V ON ON ON ON



【 Factory Setting 】

Adjust the corresponding current gear according to the order or customer demand.



【 Application 】

1. Please use this product in accordance with the specifications. Failure may occur if the product is used beyond the use conditions.

2. The product should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switches.

3. After the LED drive input is powered off, there will be residual voltage at the output end, which can be maintained for about 3 minutes.
