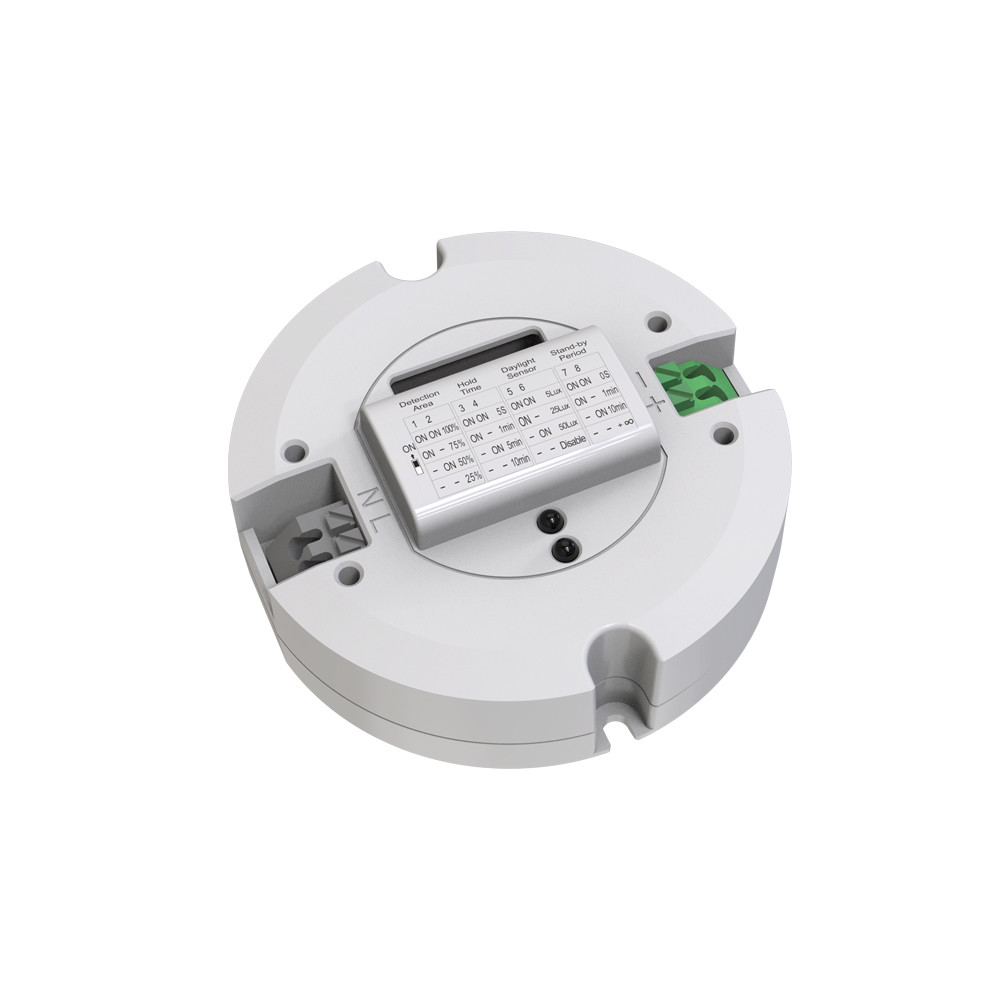

MLC18C-NDP2 Sensor DIM LED Driver



Product Feature



1. Conform to ERP standard, micro-power consumption

2. 5.8GHz ISM brand, can be batch RED,FCC certification

3. Non-isolated, Flicker-free, Driver+sensor 2 in 1

4. With corridor function , light priority function, suitable for all kinds of use scenes

5. Compact size, easy to install inside the lamps and lanterns

6. All parameters can be adjusted via DIP switch



Parameter

Input Voltage rage 198-264VAC 50Hz /60Hz
Rated voltage 220-240VAC 50Hz/60Hz≤0.12A(@230VAC full load)
Input current ≤0.11A @ 230VAC
Inrush current <15A (100us half-current)@230VAC
Power factor ≥0.90 (230V Max load)
Stand-by power <0.1W@230VAC
Working efficiency 86%,230VAC / Max Load

Lightning surge

LN: 1KV

Output Working model CC
Type of load LED
Full load power 19W Max
Flicker ripple ≤5%
No-load output voltage 60VDC Max
Load current

Single current :
300mA /350mA

Load output voltage range

24-53VDC 300mA / 350mA

Constant current accuracy ±5% @230VAC
Parameters Operating frequency 5.8GHz ±75MHz,ISM band
Transmitting power 1mW
Detection Area 25%/50%/75%/100%
Hold Time 5S/1min/5min/10min
Stand-by Period 0s/1min/10min/+∞
Daylight control

Daylight threshold

Daylight control

Daylight priority open/close

Stand-by DIM Level 20%

Detecting radius

(sensitivity: 100%)

Ceiling mounting 3m:0.3m/s ≥4m,1m/s ≥2.5m

Wall mounting 2m:0.3m/s ≥10m,1m/s ≥5m

Mounting Height 3m Typical Value (6m Max )
3db field angle 90°@Xz flat
95°@Yz flat
Abnormality Protection Requirements Input over voltage protection Yes, self-recovery
Input no-load protection Yes, self-recovery
Short-circuit protection Yes, self-recovery
Withstand voltage 3750VAC 5mA 60s (input “L N” to output SEC+ SEC-)
Operating temperature -25~+45℃
Maximum temperature(Tc) 85℃
Storage temperature/humidity -40℃~+80℃ Humidity:85%
Certificate Standards Safety standards(LVD) EN61347-1,EN61347-2-13
EMC standards EN55015,EN61547,EN61000-3-2,EN61000-3-3
Environmental requirement Compliant to RoHS
Certificate CE RED FCC
Protection class Class II
IP Rating IP20
Others Wiring method Press terminal, wire diameter:0.5-0.75mm2
Installation Built-in
Installation size Φ66mm,H26mm
Package PE bag clapboard, carton(K=A)
Lifetime 3 years warranty@Ta 230V full load
Note:The given values of detecting parameter is typical measured by 165cm high testers in an indoor open environment.



【Function】



1) On/OFF function (Setting “stand-by period” to “0s”), Setting other parameters according to practical applications.

18W non-isolated Led Drivers with Microwave sensors with multiple output current 0

2) 3-step dimming function (Setting stand-by period to “1min/10min”), Setting other parameters according to practical applications.

18W non-isolated Led Drivers with Microwave sensors with multiple output current 1

3) Daylight priority function (Setting stand-by period to “+∞”), Setting other parameters according to practical applications.

18W non-isolated Led Drivers with Microwave sensors with multiple output current 2

【 Wiring



18W non-isolated Led Drivers with Microwave sensors with multiple output current 3
MLC18C-NDP2 MLC28C-NDP2

Note: The product can be connected to only one load. Connecting more than one load will damage product.



【Dimension (mm)】



18W non-isolated Led Drivers with Microwave sensors with multiple output current 4
MLC18C-NDP2 MLC28C-NDP2



【 Function



18W non-isolated Led Drivers with Microwave sensors with multiple output current 5
MLC18C-NDP2 MLC28C-NDP2



Radiation Pattern 】



Ceiling mounted height: 3m

Sensitivity: 100%/75%/50%/25%

Ceiling mounted height: 5m

Sensitivity: 100%/75%

Wall mounted height: 2m

Sensitivity: 100%/75%/50%/25%

18W non-isolated Led Drivers with Microwave sensors with multiple output current 6

Normal moving (Speed:1m/s)

18W non-isolated Led Drivers with Microwave sensors with multiple output current 7

Normal moving (Speed:1m/s)

18W non-isolated Led Drivers with Microwave sensors with multiple output current 8

Normal moving (Speed:1m/s)

18W non-isolated Led Drivers with Microwave sensors with multiple output current 9

Slow moving (Speed 0.3m/s)

18W non-isolated Led Drivers with Microwave sensors with multiple output current 10

Slow moving (Speed 0.3m/s)

Note: There is no detection data at 50%/25% sensitivity

18W non-isolated Led Drivers with Microwave sensors with multiple output current 11

Slow moving

(Speed 0.3m/s)



DIP Switch Setting 】



1) Detection Area



  1 2
ON ON 100%
ON - 75%
- ON 50%
- - 25%



2) Hold Time



  3 4
ON ON 5S
ON - 1min
- ON 5min
- - 10min



3) Daylight Sensor



  5 6 Daylight threshold Open/Close
ON ON 5Lux 5Lux/50Lux
ON - 25Lux 25Lux/100Lux
- ON 50Lux 50Lux/150Lux
- - Disable Disable



4) Stand-by period



  7 8
ON ON 0S
ON - 1min
- ON 10min
- - +∞



Initialization 】

When power on, the product automatically turns on light at 100% brightness. After 10sec, it turns off the light. During the initialization, the product is not able to detect moving signals.



【 Factory Setting 】

Sensitivity: 100%; Hold Time: 5s; Stand-by period: 0s; Daylight Sensor: Disable.



【 Application 】

1. The product should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switches.

2. The microwave sensor has good penetration ability to plastic and wooden objects, but the front and near the microwave antenna can not be equipped with metal accessories, metal shell and glass shell, otherwise it will affect the transmission and reception of the microwave antenna.

3. It is recommended that microwave sensors be installed at a distance of more than 2m, and that they be installed at a distance of more than 2m away from switches, routers and other wireless devices to avoid radio interference, for 5G WIFI is greater than 2 m.The antenna surface of the microwave sensor is far away from the input AC and output DC to avoid low/high frequency signals interfering with the normal operation of the microwave antenna.

4. Should avoid long-term vibration equipment or moving objects around the microwave sensor, the vibration signal generated will be regarded as mobile signal trigger induction, so the installation position should be far away from large metal equipment, ventilation pipes, air conditioning outlets, exhaust vents, smoke exhaust machine and other scenes; If a pet passes through the detection area, the sensor may be triggered.

5. This product is suitable for indoor installation, when semi-outdoor or outdoor installation, wind, rain may be regarded as moving signal trigger induction; When the sensor is installed in metal lamps, metal reflective surface or narrow closed environment, the microwave will be reflected many times and trigger by mistake. Please reduce the sensitivity of the sensor or contact the manufacturer for technical support.

6. If wall mounting, the detection distance of microwave sensor will be greatly increased, please reduce the sensitivity or contact the manufacturer for technical support.

7. Due to continuous improvement, the contents of this instruction could be changed without prior notice.

8. Sensitivity area is related to moving speed of objects, size of moving objects, mounting height, mounting angle, working environment, reflecting materials and etc.

9. The value of daylight sensor is in a sunny environment with no shadows and ambient light diffuse reflection conditions. The illuminance values detected by the product may different in different environment, at different times, in different seasons, and in different climates.
