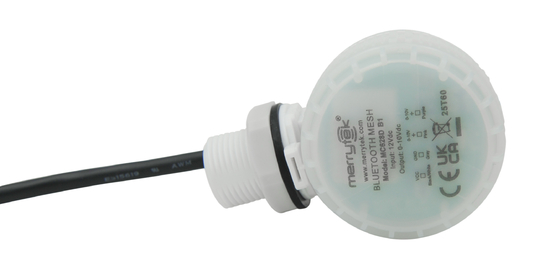

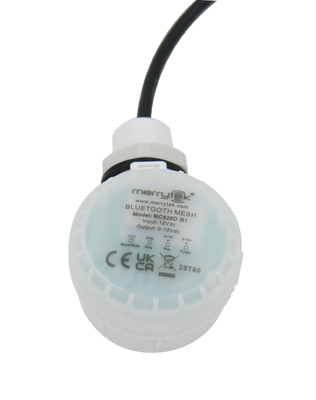

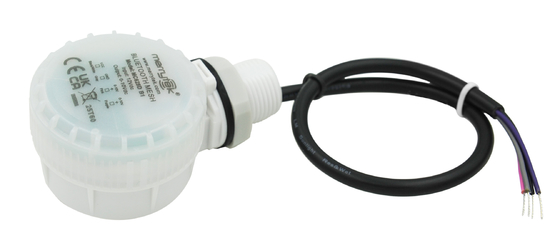

IP65 Tuya Wireless Networking Sensor With Dual-channel Output For Warehouse
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | Merrytek |
| Certification | CE |
| Model Number | MC628D B1 |
| Minimum Order Quantity | 100pcs |
| Price | Negotiable |
| Packaging Details | White paper box |
| Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Payment Terms | T/T |
| Supply Ability | 10000 pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| DC Input Voltage | 12Vdc ±1V | Stand-by Power | <0.3W |
|---|---|---|---|
| Working Mode | 0-10V DC | Operating Frequency | 5.8 GHz ±75 MHz, ISM Band. |
| Mounting Height | 15m Max | Operating Temperature | -35℃…+70℃ |
| IP Rating | IP65 | Lifetime | 5 Years Warranty |
| High Light | IP65 Wireless Networking Sensor,warehouse Wireless Networking Sensor,dual-channel output Wireless Networking Sensor |
||
Product Description
IP65 Tuya Wireless Networking Sensor with dual-channel output for warehouse
【Product Feature】
*Free of gateway for local control
*Set manual on, manual off, dimming level, color temperature easily on Tuya APP
*Schedule control with local timer, light to sleep, light to wake for more energy saving
*Customized dimming level and color temperature can memorized and saved when turn on power again
【Parameters】
| Input | DC Input Voltage | 12Vdc ±1V |
| Voltage Ripple | <300mVp-p | |
| Stand-by Power | <0.3W | |
| Wiring | Cables, 22AWG | |
| Output | Working Mode | 0-10V DC |
| Wiring | Cables, 22AWG | |
| Dim Interface | 0-10V Dimming | < 50mA (Non-constant source) |
| Sensor Parameters | Operating Frequency | 5.8 GHz ±75 MHz, ISM Band. |
| Transmitting power | 1mW Max. | |
| Hold time | 5S/30S/1min/3min/5min/10min/20min/30min | |
| Stand-by DIM Level | 10%(1.4-1.6V), 20%(1.9-2.1V), 30%(2.9-3.1V), 50% (4.9-5.1V) | |
| Stand-by Period | 0s/10S/1min/3min/5min/10min/30min/+∞ | |
| Detection Area | 25%/50%/75%/100% | |
| Daylight Sensor |
Daylight threshold: 5lux/15Lux/30Lux/50Lux/100lux/150lux/Disable Daylight priority: ON/OFF value (5lux/15Lux/30Lux/50Lux)/150Lux 100Lux/200Lux 150Lux/300Lux |
|
| Detecting Radius | See detection pattern | |
| Mounting Height | 15m Max | |
| Detecting Angle | 150°(wall mounting) 360°(ceiling mounting) | |
|
Operating Environment |
Operating Temperature | -35℃…+70℃ |
| Storage Temperature | Temperature: -40℃…+80℃; Humidity: 10%-95% (non-condensing) | |
| Others | Safety standards | EN60669-2-1, EN60669-1 |
| EMC standards | EN55015, EN61000-3-2, EN61000-3-3, EN61547 | |
| Environmental Requirement | Compliant to RoHS | |
| IP Rating | IP65 | |
| Protection Class | Class II | |
| Installation | M20 side mount | |
| Cables | 3*22AWG,exposed line length 300mm | |
| Dimension | See dimension | |
| Package | White paper box | |
| Net Weight | 70g | |
| Lifetime | 5 years warranty@Ta 230V full load | |
|
Note 1. “N/A”means not available. 2. Detection area is effected on volume of motion object and motion speed. The detection area is tested by a 165cm height person and walking speed is 0.3m/s. |
||
【Dimension (mm)】
【Wiring】
