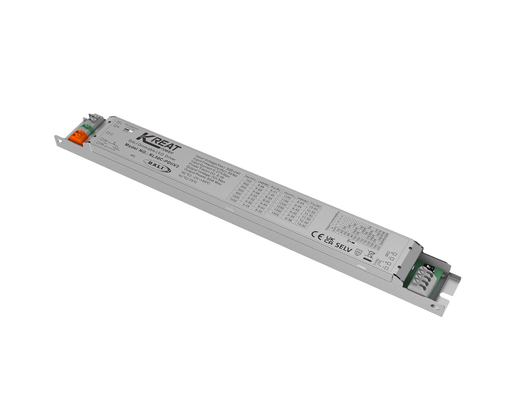

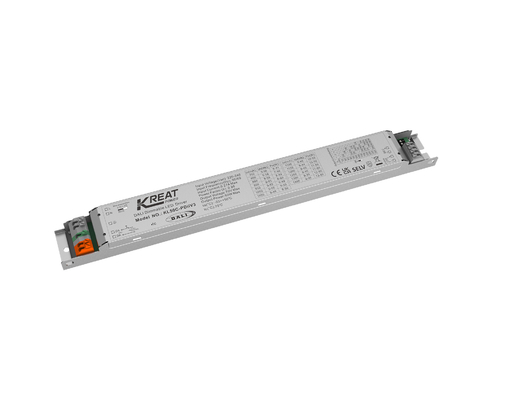

50W DALI driver,9-58V available from 700mA to 1400mA for LED panel light

.

【Product Feature】

  • Flicker-free for whole dimming range
  • Stand-by power below 0.5W
  • Primary dimming with push button
  • Secondary dimming with 1-10V dimmer and potentiometer
  • Built-in DALI interface DT6
  • Supports 10V PWM dimming (3KHz-8KHz)
  • Protection: short circuit / over temperature/ over voltage
  • Derating current for over high ambient temperature
  • Push dim with memory function
  • 5 year warranty



【Parameter】

Input

 Operating Voltage 198-264Vac 50Hz /60Hz
Rated Input Voltage 220-240Vac 50Hz /60Hz
DC Input Voltage range 200-240Vdc
Input Current 0.23A Max.
Input Inrush Current <15A (Half current pulse width100μs) @230Vac
Power factor ≥ 0.95 (@230Vac,100% load)

Total harmonic distortion

Typical:(@230Vac, 100% load)

 50C-3
13%
Stand-by power ≤0.5W (@230Vac when PUSH or DALI turn off)

Efficiency

Max(@230Vac,100% load)



87%
Wiring Method Push terminal, wire cross section:0.5-1.5mm2

Output

 Operating mode Constant Current
Load type LED

Ripple requirement (Flickering or

lickering-Free)

Flicker value: less than 2% for whole dimming range
Start up time <1s (@230Vac,)
No-load output voltage:DC Max. 70V
Load output voltage range 9-58
Full load output power 50W
Load output current Query dial setting table

Constant current/voltage

Precision



Constant Current Precision ±5%
Wiring method Push terminal, wire cross section:0.5-1.5mm2





Control Method

 Primary PUSH Dimming Primary PUSH dimming (Max.lead length:20M)
1-10V(0-10V)Dimming

1-10V dimming(Port current＜1MA) no turn off function

(Max.lead length:20M)



Dimming Range

Primary PUSH & DALI dimming: 0%-100%

1-10V dimming: 2%-100%
Primary PWM Dimming 1-10V port PWM dimming (3KHZ-8KHZ)
Potentiometer Yes, 100kΩ
DALI Dimming DALI dimming (Max.lead length:300M)

Exception

Protection Requirements

Output over temperature

protection

 Yes, without self recovery function(Can be inquired)
Output short circuit protection Yes, without self recovery function(Can be inquired)

Operating Environment

 Operating temperature/ humidity -25℃~50℃ Humidity:85% (Non-condensing)
Storage temperature/ humidity -40℃~80℃, Humidity:10%–95%
Max. case temp(Tc) 85℃



Safety & EMC

 EMC standard EN55015 EN61547 EN61000-3-2 EN61000-3-3
DALI protocol standard IEC62386-102, IEC62386-207 DT6
Safety standard EN61347-1 EN61347-2-13
Certification CE RoHS
Withstand voltage 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”)

Others

 Degrees of protection IP20
Type of protection Class I
Installation type Independent installation
Installation dimension 284*30*20.5mm
Blackout memory function Yes, PUSH blackout memory
PUSH dimming synchronization 20 units Max.
Packaging requirement Instruction+clapboard+outer carton(K=A)
Weight 225g
Life 50000h @Ta full load



Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified.



【Dimension (Unit:mm)】



50W DALI Driver 9-58V Available From 700mA To 1400mA For LED Panel Light 0



【Wiring Diagram】

Fig. A DALI Dimming

50W DALI Driver 9-58V Available From 700mA To 1400mA For LED Panel Light 1



Fig. B Push Dimming

50W DALI Driver 9-58V Available From 700mA To 1400mA For LED Panel Light 2

Fig.C 1-10V Dimming

50W DALI Driver 9-58V Available From 700mA To 1400mA For LED Panel Light 3



【Derating】

50W DALI Driver 9-58V Available From 700mA To 1400mA For LED Panel Light 4



【Dimming curve】

50W DALI Driver 9-58V Available From 700mA To 1400mA For LED Panel Light 5



【Current gear setting】

KL50C-PDiiV3

Current gear setting

 1 2 3 4
700mA(9-58V) - - - -
800mA(9-58V) ON - - -
850mA(9-58V) - ON - -
900mA(9-55V) - - ON -
950mA(9-52V) ON ON - -
1000mA(9-50V) ON - ON -
1050mA(9-48V) - ON ON -
1100mA(9-45V) - ON - ON
1150mA(9-44V) ON ON ON -
1200mA(9-42V) ON ON - ON
1250mA(9-40V) ON - ON ON
1300mA(9-39V) - ON ON ON
1400mA(9-36V) ON ON ON ON





【ON/OFF & Description of Dimming Operation】

A. Short press the PUSH switch (short press time 0.1S-1S), the LED driver will turn on or off.

B. Dimming: Press and hold the PUSH switch (1S-8S), the LED driver can achieve dimming, brightening or dimming, the dimming range is 2-100%.

C. Memory: PUSH dimming has dimming memory function.

D. Dimming synchronization: The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15S

E. DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.



【Attention】

1) The LED string must be connected to the load before turning on the input power, otherwise the LED string may be damaged.

2) After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
