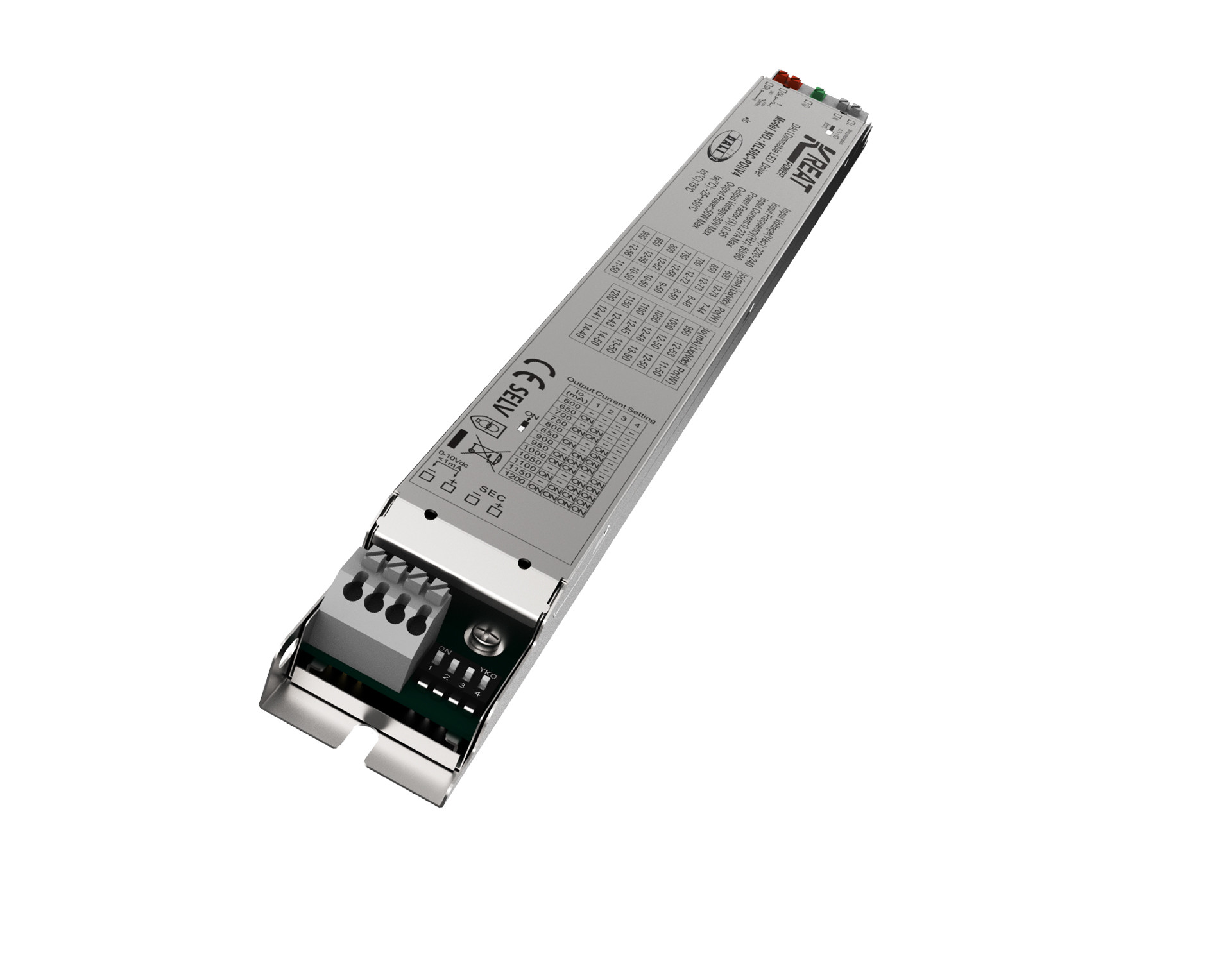

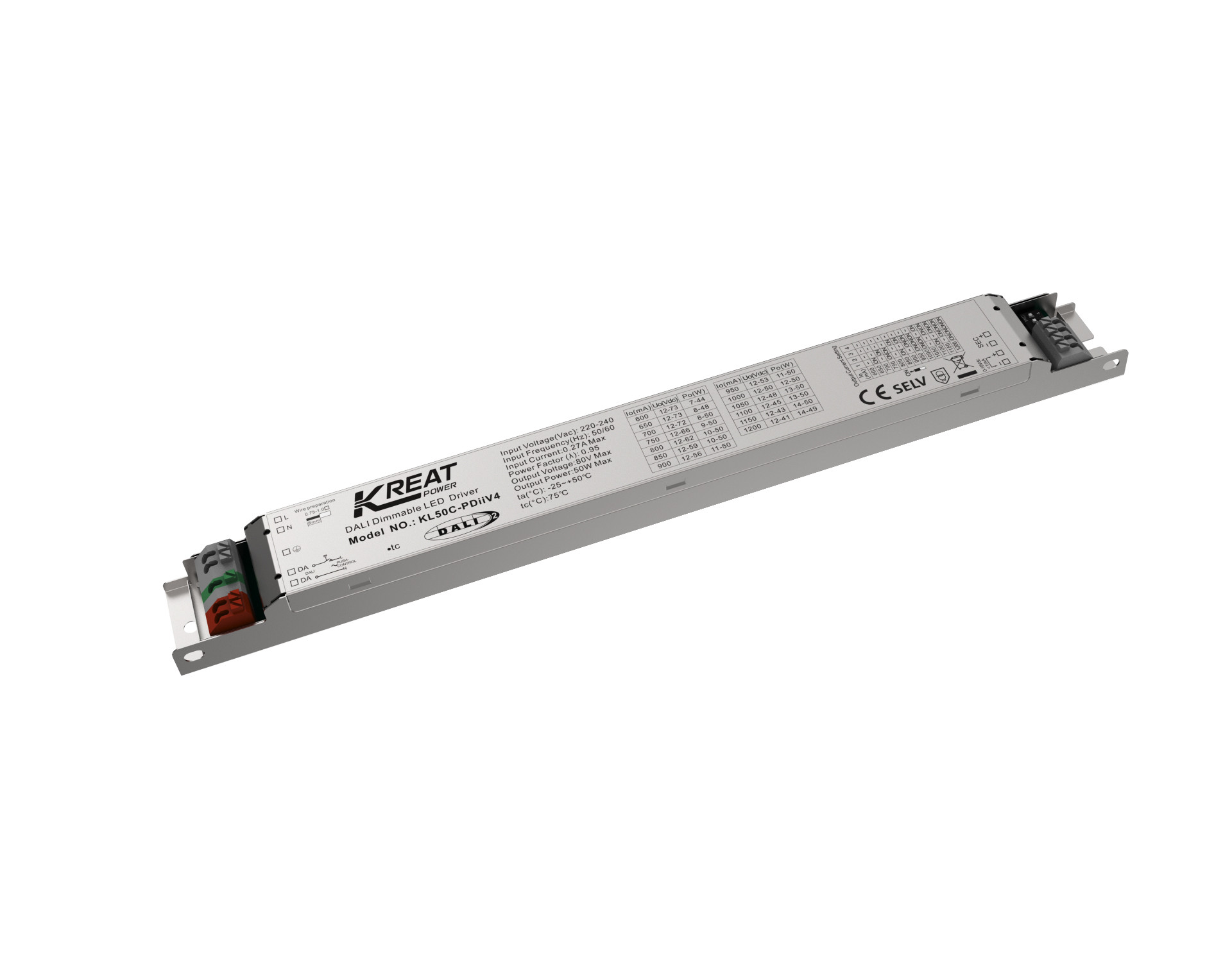

50W Dimmable Indoor Driver With PUSH DALI2 1-10V Dimming

Place of Origin Shenzhen, China
Certification CE, RoHS
Model Number KL50C-PDiiV4
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Instruction+clapboard+outer carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 4-5 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 20,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Working Voltage 198-264Vac 50Hz /60Hz Power Factor ≥ 0.95(@230Vac,100% Load)
Stand-by Power ≤0.5W(@230Vac When PUSH Or DALI Turn Off) Working Mode Constant Current
IP Degree IP20 Installation Size 284*30*20.5mm
Installation Type Independent Installation Life Cycle 50000h @Ta Full Load
High Light

50W dimmable indoor driver


PUSH DALI2 dimmable indoor driver


1-10V Dimming LED Driver

Leave a Message
Product Description

50W dimmable indoor driver with PUSH DALI2 1-10V dimming


【Product Feature】

  • Flicker-free for whole dimming range
  • Stand-by power below 0.5W
  • Primary dimming with push button
  • Secondary dimming with 1-10V dimmer and potentiometer
  • Built-in DALI interface DT6
  • Supports 10V PWM dimming (3KHz-8KHz)
  • Protection: short circuit / over temperature/ over voltage
  • Derating current for over high ambient temperature
  • Push dim with memory function
  • 5 year warranty




Operating Voltage 198-264Vac 50Hz /60Hz
Rated Input Voltage 220-240Vac 50Hz /60Hz
DC Input Voltage range 200-240Vdc
Input Current 0.23A Max.
Input Inrush Current <15A (Half current pulse width100μs) @230Vac
Power factor ≥ 0.95 (@230Vac,100% load)

Total harmonic distortion

Typical:(@230Vac, 100% load)

Stand-by power ≤0.5W (@230Vac when PUSH or DALI turn off)


Max(@230Vac,100% load)



Wiring Method Push terminal, wire cross section:0.5-1.5mm2


Operating mode Constant Current
Load type LED

Ripple requirement (Flickering or


Flicker value: less than 2% for whole dimming range

Start up time <1s (@230Vac,)
No-load output voltage:DC Max. 80V
Load output voltage range 12-73
Full load output power 50W
Load output current Query dial setting table

Constant current/voltage


Constant Current Precision ±5%

Wiring method Push terminal, wire cross section:0.5-1.5mm2



Control Method

Primary PUSH Dimming Primary PUSH dimming (Max.lead length:20M)

1-10V dimming(Port current<1MA) no turn off function

(Max.lead length:20M)

Dimming Range

Primary PUSH & DALI dimming: 0%-100%

1-10V dimming: 2%-100%

Primary PWM Dimming 1-10V port PWM dimming (3KHZ-8KHZ)
Potentiometer Yes, 100kΩ
DALI Dimming DALI dimming (Max.lead length:300M)


Protection Requirements

Output over temperature


Yes, without self recovery function(Can be inquired)
Output short circuit protection Yes, without self recovery function(Can be inquired)

Operating Environment

Operating temperature/ humidity -25℃~50℃ Humidity:85% (Non-condensing)
Storage temperature/ humidity -40℃~80℃, Humidity:10%–95%
Max. case temp(Tc) 85℃


Safety & EMC

EMC standard EN55015 EN61547 EN61000-3-2 EN61000-3-3
DALI protocol standard IEC62386-102, IEC62386-207 DT6
Safety standard EN61347-1 EN61347-2-13
Certification CE RoHS
Withstand voltage 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”)


Degrees of protection IP20
Type of protection Class I
Installation type Independent installation
Installation dimension 284*30*20.5mm
Blackout memory function Yes, PUSH blackout memory
PUSH dimming synchronization 20 units Max.
Packaging requirement Instruction+clapboard+outer carton(K=A)
Weight 225g
Life 50000h @Ta full load

Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified.


Dimension (Unit:mm)

50W Dimmable Indoor Driver With PUSH DALI2 1-10V Dimming 0


Wiring Diagram

Fig. A DALI Dimming

50W Dimmable Indoor Driver With PUSH DALI2 1-10V Dimming 1


Fig. B Push Dimming

50W Dimmable Indoor Driver With PUSH DALI2 1-10V Dimming 2

Fig.C 1-10V Dimming

50W Dimmable Indoor Driver With PUSH DALI2 1-10V Dimming 3



50W Dimmable Indoor Driver With PUSH DALI2 1-10V Dimming 4


【Dimming curve

50W Dimmable Indoor Driver With PUSH DALI2 1-10V Dimming 5


Current gear setting】


Current gear setting

1 2 3 4
600(12-73V) - - - -
650(12-73V) ON - - -
700(12-72V) - ON - -
750(12-66V) ON ON - -
800(12-62V) - - ON -
850(12-59V) ON - ON -
900(12-56V) - ON ON -
950(12-53V) ON ON ON -
1000(12-50V) ON ON - ON
1050(12-48V) - - ON ON
1100(12-45V) ON - ON ON
1150(12-43V) - ON ON ON
1200(12-41V) ON ON ON ON


ON/OFF & Description of Dimming Operation

A. Short press the PUSH switch (short press time 0.1S-1S), the LED driver will turn on or off.

B. Dimming: Press and hold the PUSH switch (1S-8S), the LED driver can achieve dimming, brightening or dimming, the dimming range is 2-100%.

C. Memory: PUSH dimming has dimming memory function.

D. Dimming synchronization: The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15S

E. DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.



1) The LED string must be connected to the load before turning on the input power, otherwise the LED string may be damaged.

2) After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
