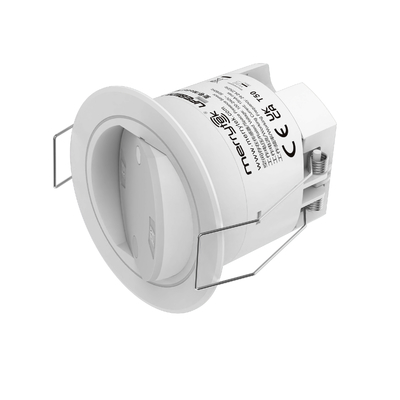

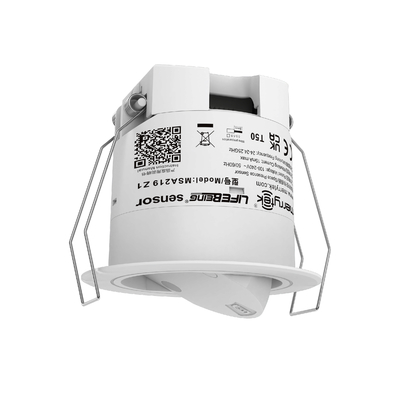

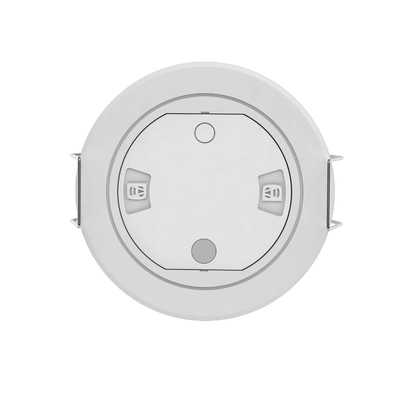

Tuya Zigbee 24GHz Wireless Presence Sensor With Detecting Angle Adjustable For Hotel Room

  • Tuya Zigbee 24GHz Wireless Presence Sensor With Detecting Angle Adjustable For Hotel Room
  • Tuya Zigbee 24GHz Wireless Presence Sensor With Detecting Angle Adjustable For Hotel Room
  • Tuya Zigbee 24GHz Wireless Presence Sensor With Detecting Angle Adjustable For Hotel Room
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MSA219 Z
Minimum Order Quantity 100PCS
Price Negotiation
Packaging Details White box+Clapboard+ Carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Voltage 100-240Vac 50Hz /60Hz Communication Mode ZigBee
MW Sensor Frequency 24GHz-24.25GHz ISM Band Application Hotel Room/ Bedroom
Detection Sensitivity Level 1 -level 12 Hold Time 30s /1min / 2min/3min /5min /10min /20min/30min
Daylight Detection Monitoring Ambient Lux Level And Report If Ambient Lux Level Change Over Preset Change Value; Immediately Report If Lux Abruptly Change. Lux Change Value (10lux-100lux) Can Be Set In App. Daylight Detection Range 0-1200Lux (sensor Mount 3m In Height, And Monitor The Reflection Daylight Value
Mounting Height 2.5-4.0m (typical) Installation Recessed. Cut Hole Φ70mm
High Light

hotel room Wireless Presence sensor

,

zigbee Tuya Wireless Presence sensor

,

24GHz Tuya Wireless Presence sensor
Leave a Message
Product Description

Tuya Zigbee 24GHz Wireless Presence sensor with detecting angle adjustable for the hotel room



1. Feature



1) Exclusive Merrytek Lifebeing Presence Detection
2) Accurate Presence/Absence Output regardless of deep-sleep
3) Tuya Zigbee communication available
4) Detection antenna flippable from -30°to 30°
5) 24Ghz ISM Band Millimeter Wave Radar technology
6) Sensor parameter adjustable and group assignment by Tuya app



2. Parameters





Input/Output Input voltage 100-240Vac 50Hz/60Hz
Rated voltage 220V AC
Working Current 50mA max
Consumption ≤1W 220V AC
Wireless module RF frequency 2.4GHz-2.484GHz ZigBee Transmitting Frequency: 10dB Receiving Sensitivity: -101±2dBm
Sensor Parameter Radar frequency 24GHz-24.25GHz ISM band
Transmitting Power 5mW Max.
Detection Area APP setting:1 level-12 level
Hold Time APP setting:30s /1min / 2min/3min /5min /10min /20min/30min
Daylight measure range 0-1200Lux
Radius detection range(based on 100% sensitivity and 3m mounting)

Movement(3m height):short side 0.5-1m,long side1.5-2m

Minor motion(3m height):short side 0.5-1m,long side1.5-2m

Presence(3m height):short side 0.5-1m,long side1.5-2m
Remote control Available
Mounting height 2.5-4.0m
3dB beam angle 30°(horizontal)
50°(vertical)
Application Environment Drill hole Φ70mm
Working Temperature 0℃...+50℃
Storage Temperature -25℃~+80℃
Certificate Standard Certificate FCC/RED
Environmental Requirement Compliant to RoHS
IP Rating IP20
Note: "N/A" means not available.





3. Dimension ( mm)



Tuya Zigbee 24GHz Wireless Presence Sensor With Detecting Angle Adjustable For Hotel Room 0

Tuya Zigbee 24GHz Wireless Presence Sensor With Detecting Angle Adjustable For Hotel Room 1



4. Wiring



Tuya Zigbee 24GHz Wireless Presence Sensor With Detecting Angle Adjustable For Hotel Room 2

5. Detection area

Tuya Zigbee 24GHz Wireless Presence Sensor With Detecting Angle Adjustable For Hotel Room 3

6. Angle adjustable example



Tuya Zigbee 24GHz Wireless Presence Sensor With Detecting Angle Adjustable For Hotel Room 4Tuya Zigbee 24GHz Wireless Presence Sensor With Detecting Angle Adjustable For Hotel Room 5



7. Detection signal



The product detects human movement, minor movement, and presence signals, and realizes the detection of human-existing/no-human in the sleep state. The following is a description of the moving, minor moving, and presence signals:

l Moving signal: detect the human significant moving (walking) in the detection area.

l Minor moving signal: detect the human slight moving in the detection area, such as leaning forward, leaning forward and back, swinging limbs, shaking head, typing, playing with mobile phones, and so on.

l Presence signal: detect human abdominal and thoracic expansion behaviors caused by breathing, but not detect moving signal and minor moving signal.
