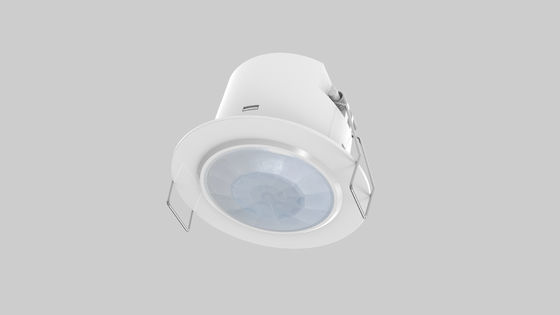

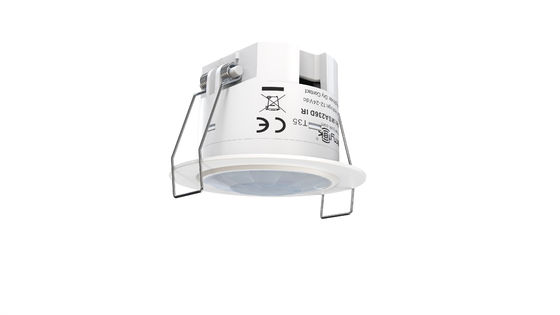

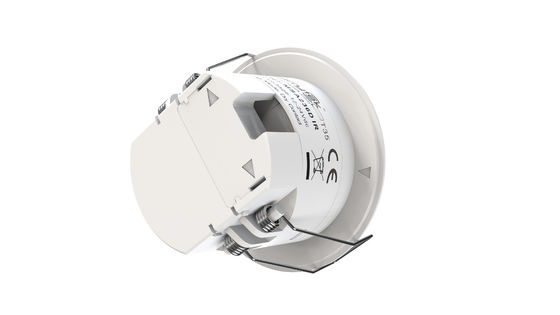

RS-485 protocol high-performance commercial occupancy sensors with max. 4m mounting height


1. Features
1) PIR motion detection
2) Exquisite appearance with planar Fresnel lens
3) Accurate RS-485 protocol output
4) Daylight sensor detection available
5) Detection area, hold time, and ID edit, etc, can be set by remote
6) Max detection range: 8-10m in diameter
7) Hallway and Toilet motion detection is highly recommended
8) Flush mounting and surface mounting available
9) Compact mini size for perfect ceiling mounting


2. Parameters

Input/Output Input voltage 12-24V DC
Rated voltage 12/24V DC
Working current 20mA max
Power consumption ≤0.5W @12/24V DC
Output signal RS485
Sensor parameter Function PIR motion detection, daylight sensor
Detection Area RS485 protocol/remote setting: 100%/75%/50%/25%
Hold Time RS485 protocol/remote setting:10S/30S/1min/5min/10min/20min/30min
Daylight Sensor report range 0-1200lux
Radius detection range(based on 100% sensitivity) Tangential moving based on 3m high installation: 4-5m @25℃(radial moving detection range will shorten)
Remote control Available
Mounting height 2.5-4m typical value 3m
Application environment Drill hole Φ45mm
Working temperature -25℃...+50℃(detection range might differ based on different temperature )
Storage temperature -40℃~+80℃
Warranty 3 years(available due to product quality problem under indoor application)
Certificate Standard Certificate Compliant with CE
Environmental requirements Compliant to RoHS
IP rating IP20
“N/A” means not available

3. Dimension

RS-485 Protocol High Performance Commercial Occupancy Sensors With Max. 4m Mounting Height 0

RS-485 Protocol High Performance Commercial Occupancy Sensors With Max. 4m Mounting Height 1



4. Wiring Diagram

RS-485 Protocol High Performance Commercial Occupancy Sensors With Max. 4m Mounting Height 2

Wiring layout suggestion:

1. Hand-in-hand wiring is highly recommended, yet star-topology or tree-topology is strongly deprecated

2. RS-485 layout wire length shall not be longer than 300m, and 12pcs sensors are the maximum quantity layout in one circuit

3. A 4-pin shield wire or class 6 network wire is highly recommended for layout

4. Our sensor doesn’t have terminal resistance. if there’s an impedance matching problem inthe  RS-485 bus, we recommend connecting 2 pieces of 120Ω resistance in the terminal


5. Detection of radiation

RS-485 Protocol High Performance Commercial Occupancy Sensors With Max. 4m Mounting Height 3





6.  Detection Signal



The product detects human moving signals, and below is a description of the moving signals:

Moving signal: detect the human significant moving (walking) in the detection area.



7. Remote Control MH18

RS-485 Protocol High Performance Commercial Occupancy Sensors With Max. 4m Mounting Height 4




For more information, please get in touch with our sales rep. for more details.
