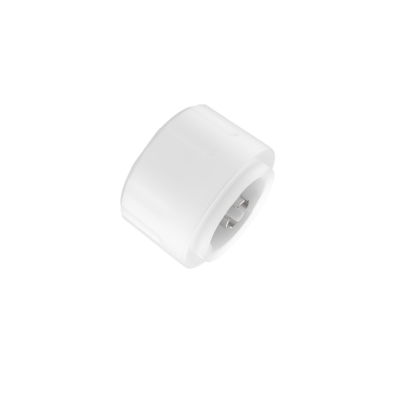

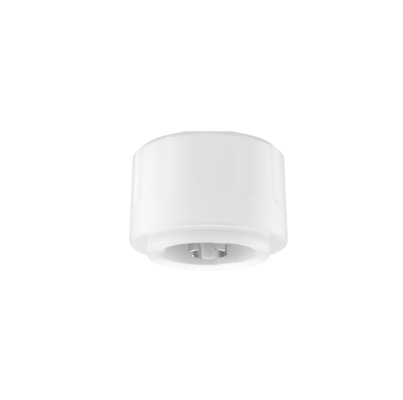

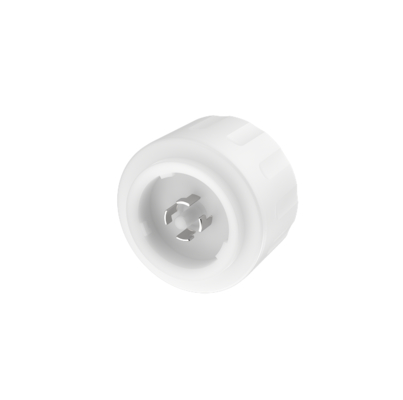

Wireless 2.4G Network UFO Sensor, With Daylight Priority Function, 0-10V Dimming Output

• 12Vdc Input, suitable for DC systems or LED driver with 12V DC auxiliary power output
• 0-10V dimming terminal, 3-step or 2-step is optional, detection area adjustable
• Mini size microwave detection sensor
• Indoor maximum mounting height is 12m
• All sensor parameters can be set by remote control
• Support wireless 2.4G networking

The light will be turned on 100% brightness by the initial energizing sensor, and will be turned off after 10 seconds. During initialization, no external motion sensing signal will be detected.

Sensitivity: 100%, Hold time: 10s, Daylight sensor: Disable, Stand-by period: 0s, Stand-by dim level: 10%

• Sensor should be installed by a professional electrician. Please turn off power before installing, wiring.
• Sensitivity area is related to moving speed of objects, size of moving objects, mounting height, mounting angle, working environment, reflecting materials and etc. Given detecting area is typical value that was measured by 165cm/65kg testers in an indoor open environment.
• The daylight thresholds are measured on a sunny day without shadow and in an ambient light diffuse reflection status. Different environment and climate cause different brightness values that daylight sensor measures.
• Sensor parameters may need to be reconfigured in different installation environments, please refer to the following instructions or contact the manufacturer.
• Sensor is for indoor use only. The waterproof effect for outdoor or half-outdoor use will be affected. Wind, rain, and moving objects may cause false triggering.
• The installation height of the sensor product cannot exceed 15 meters, and the optimal height is 12 meters. The distance between the two sensors should be greater than 3m.
• When the sensor is installed in a metal lamp, on a metal reflective surface, or in a small closed environment, the microwave will be reflected multiple times and cause false triggering. Please reduce the sensitivity of the sensor or contact the manufacturer for technical support.
• Vibration signals will be regarded as moving signals to trigger sensor. Installing sensor should be away from the object that vibrates for a long time, such as large metal equipment, pipes, air conditioning outlets, exhaust vents, smoke exhaust machine ports, shaking fans, etc.
• Microwaves cannot penetrate metal. Do not place product in a closed or a half-closed metal lamp. Neither metal nor glass is not allowed to cover above the product.
• DC regulated power supply with stable output voltage and low ripple coefficient must be used. The ripple of the power supply should be less than 100mV; the load current should be greater than 65mA.
• For the new installation environment, it is recommended to first install and test 5pcs prototypes before bulk installation.
