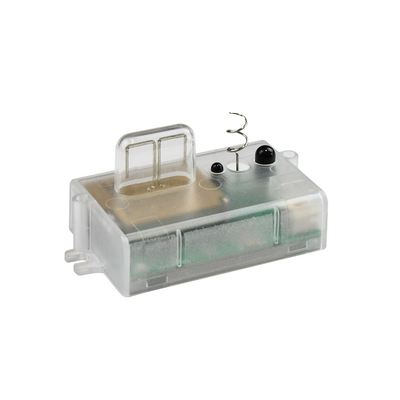

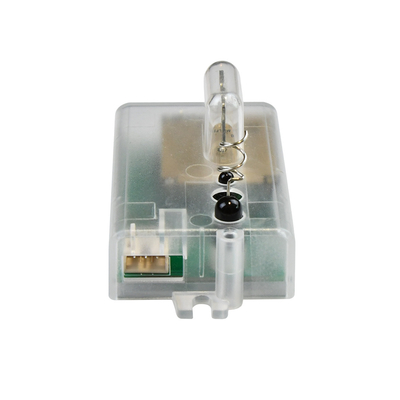

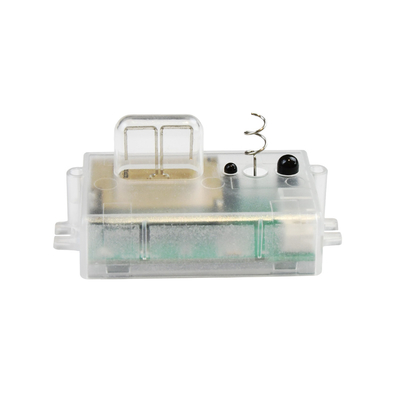

Indoor 2.4G Wireless Microwave Motion Sensor For LED Ceiling Light

Place of Origin Shenzhen, China
Brand Name Merrytek
Certification CE
Model Number MC116D RC
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Clapboard + paper carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit
Payment Terms T/T
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Transmit Power 1mW Max Working Current 55±5mA
Rated Voltage 12±1VDC Working Mode ON/OFF Function, Daylight Priority Function
Installation Height 3m (6m Max) Degree Of Protection IP20
Size 105 X 58.5 X 20 Mm Warranty 5 Years Warranty
High Light

low voltage led driver


LED Panel Light Driver


Panel Light Integrated Sensor Driver

Leave a Message
Product Description

Indoor 2.4G Wireless Microwave Motion Sensor For LED Ceiling Light

For more details, pls refer to as follows:

MC116D RC Spec 2024.01.17.pdf


Product Features

  • Grouping networking by 2.4G wireless, no need paring or gateway.
  • Patented di-pole microwave antenna, no false trigger when installed beLOW metal LED tray.
  • Super-narrow microwave senor head, suitable to be fixed in slim LED fixtures.
  • All sensor parameters can be set by remote control.
  • Output 0-10V dim or PWM dim, 2-step/3-step dim function.
  • 6m Max. mouthing height.



Rated voltage 12±1VDC
Working current 55±5mA
Ripple voltage < 100mVp-p
Output signal ○0-10V Dimming Signal ○PWM Dimming Signal
Sensing parameters
Working frequency 5.8GHz ±75MHz, ISM band
Transmit power 1mW Max.
Daylight priority ON 15Lux (LOW) 50Lux (MED) Disable (HIGH)
OFF 100Lux 150Lux
Stand-by DIM Level

< 50mA(Non-constant source)

10%(1.4-1.6V) 30%(2.9-3.3V)

Detection range (radius)

Ceiling Mounting(height: 3m): 0.3m/s ≥4m, 1m/s ≥2.5m

Wall Mounting(height: 2m): 0.3m/s ≥8m, 1m/s ≥4m

Installation height 3m ( 6m Max )
3db beam angle 80 °@XZ plane
96 °@YZ plane
Wireless Module
Operating Frequency 2.4GHz
Transmitting Power 6dBm
Transmitting Distance 15m MAX(Point-to-point open area transmission distance)
Working temperature Built-in: -25~60℃
Storage temperature -40℃~80℃, humidity ≤85% (non-condensing)
Certification Standards
Certified CE
Environmental requirements Comply with RoHS 2.0 , Reach requirements
Degree of protection IP20
Wiring 3pin 2.0mm terminal
Installation requirements built-in installation
Packaging requirements Clapboard + paper carton(K=A)
Net weight 16.5±3g
Life 5 Years Warranty@Ta


Function description

ON-OFF function N/A
√2-step dimming Stand-by Period be set to “+∞”, Daylight sensor be set to “High”
√3-step dimming Stand-by Period be set to “5min/10min”
Daylight harvesting N/A
√Daylight priority Stand-by Period be set to “+∞”, Daylight sensor be set to “LOW/MED”
Grouping Remote group “1-8” and set Rx signal for sensor



  • Dimension

Indoor 2.4G Wireless Microwave Motion Sensor For LED Ceiling Light 0

  • Wiring, Function

Indoor 2.4G Wireless Microwave Motion Sensor For LED Ceiling Light 1Indoor 2.4G Wireless Microwave Motion Sensor For LED Ceiling Light 2

  • Radiation diagram

Indoor 2.4G Wireless Microwave Motion Sensor For LED Ceiling Light 3


Remote Controller】

Indoor 2.4G Wireless Microwave Motion Sensor For LED Ceiling Light 4



When powering on for the first time, the sensor will turn the light on to 100% brightness, and the light will be turned off after 10 seconds. During initialization, movement signal will not be detected.


【Default setting】

Detection area: 100%; Hold Time: 10s; Stand-by Period: 0s; Daylight Sensor: Disable;

Stand-by Dim Level: 10%.


【Application Notice】

  • The sensor should be installed by a professional electrician. Please cut off the power before installing, wiring etc.
  • The detection distance is related to factors such as the moving speed of the moving object, the size of the moving object, the installation height, the installation angle, whether the installation environment is open, and the material of the reflector. The detection distance given in the specification is a typical value, which is 165cm/65kg tester, and it is tested in an open indoor environment
  • When the microwave sensor is installed on the wall, the detection distance will be greatly increased compared with that installed on the ceiling. If you use the wall installation method, please reduce the sensitivity to use or contact our company to confirm the use settings. The light sensitivity threshold is in a sunny environment, no shadows, and ambient light diffuse reflection conditions. In different time periods, climates, and environments, the illuminance value detected by the light sensor may be different
  • Sensor parameters may need to be reconfigured in different installation environments, please refer to the following instructions or contact the manufacturer
  • This sensor is only for indoor use, outdoor wind and rain, and surrounding moving objects will cause false triggering
  • The installation height of the sensor product cannot exceed 6 meters, and the optimal height is 3 meters; the distance between the two sensors should be greater than 3 meters
  • When the sensor is installed in a metal lamp, on a metal reflective surface, or in a narrow closed environment, microwaves will be reflected multiple times and cause false triggering. Please reduce the sensor sensitivity or contact the manufacturer for technical support.
  • Please make sure that there are no moving signals such as fans, DC motors, sewer pipes, air outlets, etc. around the sensor, otherwise the sensor may cause false triggering.
  • Microwaves cannot penetrate metal, avoid installing in closed or semi-closed metal lamps, and there should be no metal or glass blocking the product
  • Sensor with different 0-10V / PWM driver, LOW light effect may be different
  • DC regulated power supply with stable output voltage and LOW ripple coefficient must be used. The ripple of the power supply should be less than 100mV ; the load current should be greater than 100 mA
  • Product specifications and parameters may be optimized without prior notice
  • For the new installation environment, it is recommended to test 5pcs samples before installation.
