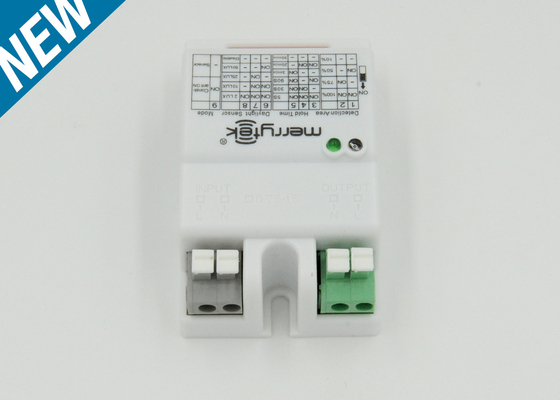

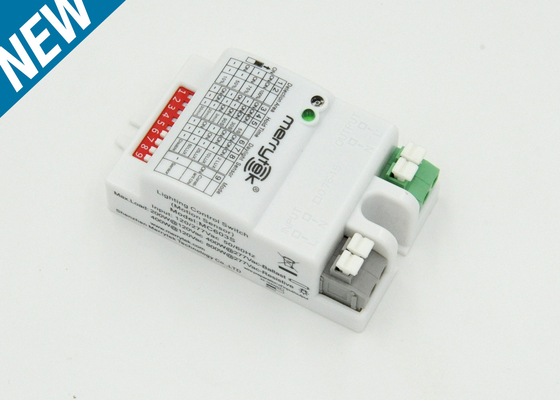

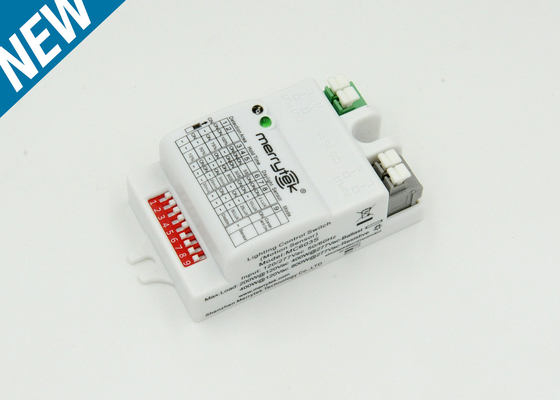

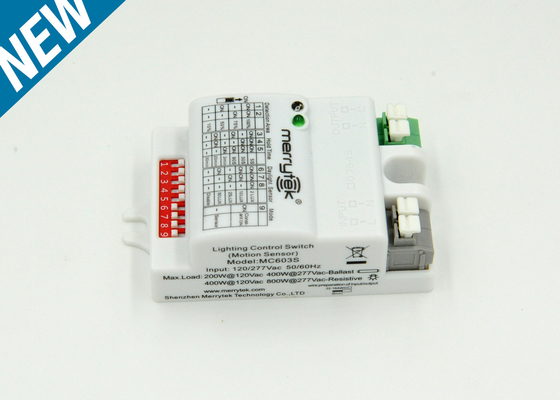

Compact 120/277Vac ON / OFF Microwave Light Sensor MC603S , UL and FCC Certification

Place of Origin China
Brand Name Merrytek
Certification FCC & UL
Model Number MC603S
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details Packed in bubble bags firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T, Western Union
Supply Ability 20,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Microwave Motion Sensor Rated Load 200W@120Vac 400W@277Vac (ballast) ; 400W@120Vac 800W@277Vac(resistive)
Operating Voltage 120-277Vac,50Hz/60Hz Detection Max(D×H):12m×6m
HF System 5.8GHz ±75MHz, ISM Wave Band Approval FCC & UL
Operation Temperature -20℃~60℃ Function On-off Control
IP Rating IP 20 Mounting Height 6m Max
High Light

light motion sensor

,

high bay motion sensor

,

Compact ON OFF Microwave Light Sensor

Leave a Message
Product Description



Compact 120/277Vac ON / OFF microwave light sensor MC603S , UL and FCC Certification



Description:



1.  Automatic switching based on motion and ambient light level.

2.  Compact size suitable for all kinds of Led fittings

3.  UL and FCC certification

4.  Zero-crossing point operation helps protect the sensor against in-rush current..

5.  5.8GHz high frequency microwave(C-Band license-free operation)

6.  4-pole press-in terminal (L, N, N,L′),easy assembly.

7.  Detection area, time delay and daylight threshold can be precisely set via DIP switch.

8. Cost effective





Function:

ON-OFF function

Compact 120/277Vac ON / OFF Microwave Light Sensor MC603S , UL and FCC Certification 0

Detection Pattern:



Compact 120/277Vac ON / OFF Microwave Light Sensor MC603S , UL and FCC Certification 1



Specifications:



Operating voltage

120-277Vac, 50Hz/60Hz

Rated load

200w @120Vac 400W@277Vac (ballast);400W@120Vac 800W@277Vac(resistive)

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

12*6m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation temperature

-20℃~60℃

Hold time

5s / 30s / 90s / 3min / 20min / 30min

Detection sensitivity

10% / 50% / 75% / 100%

Daylight sensor

2Lux / 10lux  / 25lux / 50Lux/ Disable

Mode Sensor/ Disable

Life time

50,000 hours

Guaranty

5 years







Wiring:

Compact 120/277Vac ON / OFF Microwave Light Sensor MC603S , UL and FCC Certification 2



Applications:



Stairwell, Corridor, Balcony, Pathway, etc



Download:

MC603S.pdf
