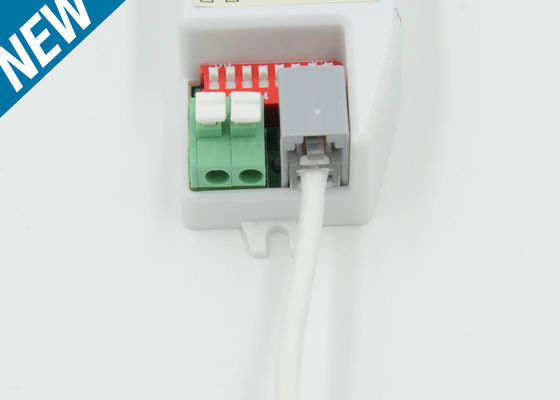

20W Sensor Driver Detachable DIM LED Driver for LED tri - proof light

  • 20W Sensor Driver Detachable DIM LED Driver for LED tri - proof light
  • 20W Sensor Driver Detachable DIM LED Driver for LED tri - proof light
  • 20W Sensor Driver Detachable DIM LED Driver for LED tri - proof light
  • 20W Sensor Driver Detachable DIM LED Driver for LED tri - proof light
Place of Origin China
Brand Name Merrytek
Certification CE/ TUV
Model Number MLC20C-P2
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or Western Union or PayPal
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 20W Detachable Sensor DIM LED Driver Output Load 1 X 20W Max.
Output Constant Current 300mA/ 320mA/ 350mA/ 380mA/ 400mA/ 450mA, Set Via DIP Switch Output Voltage 55Vdc Max.
Stand-by Power ≤0.5W Dimming Level 10%/ 25%
Working Temperature -25℃-50℃ Isolation Class Class Ⅱ
Approvals CE/ TUV Protection Class IP20
High Light

high efficiency led driver

,

LED Panel Light Driver

,

Detachable DIM LED Driver
Leave a Message
Product Description



20W Sensor Driver Detachable DIM LED Driver for LED tri - proof light



Description:



1, Optional Output constant current can be set via DIP switch.

2, Automatic switching and dimming based on motion and ambient light level

3, Integration of microwave motion sensor, daylight sensor and LED power supply

4,Unique design with mini sensor detector makes the drivers suitable to fix within compact luminaries.

5, Detection area, time delay, daylight threshold, stand-by dimming time and stand-by dimming level can be set via DIP switch.



The products supply a simple energy-saving solution for LED ceiling light and tri-proof light. The mini detector is separated from LED power supply, unique design makes the drivers can be installed in luminaries which have limited space.



Specifications







INPUT



 Input voltage 220-240Vac
Input frequency 50-60Hz
Input current 0.118A max
Power factor ≥0.90 @230v full load
Efficiency ≥80%
Stand-by Power ≤1W





OUTPUT



 Output constant current 300mA/ 320mA/ 350mA/ 380mA/ 400mA/ 450mA, set via DIP switch
Output voltage 28Vdc – 42Vdc
Current accuracy ±5%
Output Power 18.9W Max.











DETECTOR

 HF system 5.8Ghz±75Mhz, ISM wave band
Transmitting power ＜0.5mW
Detection range 4m (@ 3m mounting height)
Detection area 50%/ 100%
Hold time 5s/ 90s/ 3min/ 10min
Daylight sensor 5lux/ 15lux/ 30lux/ Disable
Stand-by period 0s/ 30s/ 10min/ +∞
Stand-by DIM level 10%/ 25%
Mounting height 6m Max.
Motion detection 0.5~3m/s
Detection angle

150° (Wall installation)

360° (Ceiling installation)





ENVIRONMENT



 Working temp.(Ta) -20~50℃
Surface temp.(Tc) 85℃max @230v full load
Working humidity 20~85%RH non-condensing
Storage temp. -35~80℃
Life time ≥30000hours





PROTECTION



 Isolation class ClassⅡ
Protection class IP20
Short Circuit Protection type: auto reset
Over voltage Protection type: auto reset
No-load Protection type: auto reset







SAFETY & EMC

 Safety EN61347-1 EN61347-2-13
EMC EN55015; EN61000-3-2
EN61000-3-3, EN61547
Approvals TUV, RoHS
Withstand voltage IN-OUT:3.75KVAC/5mA/1min



Mechanical Specification:

20W Sensor Driver Detachable DIM LED Driver for LED tri - proof light 0



Wring Diagram:

20W Sensor Driver Detachable DIM LED Driver for LED tri - proof light 1





Detection Pattern:

20W Sensor Driver Detachable DIM LED Driver for LED tri - proof light 2





Function:

20W Sensor Driver Detachable DIM LED Driver for LED tri - proof light 3
