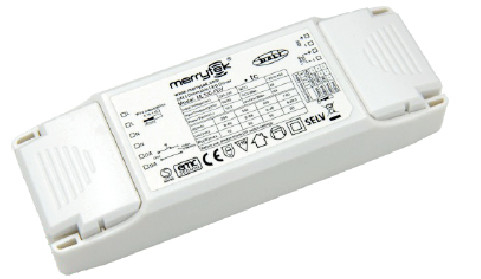

10W Non-Flickering DALI Dimmable LED Driver Ml10c-Pdv Constant Current

  • 10W Non-Flickering DALI Dimmable LED Driver Ml10c-Pdv Constant Current
Place of Origin China
Brand Name Merrytek
Certification CE0700 RoHS
Model Number ML10C-PDV
Minimum Order Quantity 100Pcs
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3 weeks after receiving deposit.
Payment Terms T/T, Western Union
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Multi-function Dimmable Led Driver Input Voltage 220-240VAC
No-load Output Voltage 40±1.5Vdc Load Output Current 350MA(3-30V)
Efficiency 80%Max. @230VAC（Full Load） Dimming Mode 1-10V/Push/DALI
Full Load Output Power 10.5W Max. Isolation Class Class II
Approvals CE0700 RoHS Working Temperature -25℃~50℃
High Light

dali led dimmer

,

dali dimming led driver

,

Non Flickering DALI Dimmable LED Driver
Leave a Message
Product Description

10W NON-FLICKERING DALI Dimmable LED Driver ML10C-PDV Constant Current





Description:

  • Flicker-free for whole dimming range
  • Stand-by power below 0.5W
  • Primary dimming with push button
  • Secondary dimming with 1-10V dimmer and potentiometer
  • Built-in DALI interface
  • Supports 10V PWM dimming (3KHz-8KHz)
  • Protection: short circuit / over temperature/ over voltage
  • Derating current for over high ambient temperature
  • Push dim with memory function
  • 5 year warranty



Applications:
For LED down light, LED panel light, led strip, led tube etc…




Input Operating Voltage 198-264VAC 50Hz /60Hz
Input Voltage 220-240VAC 50Hz /60Hz
Input Current 0.1A Max.
Input Inrush Current <15A@230V AC (Half current pulse width 100US)
Power Factor ≥0.90 @240VAC(Full load)
No-load power ≤1.5W
Stand-by Power ≤0.5W
Efficiency 80%Max. @230VAC(Full load)
Wiring Method Press fit terminal Wire Diameter:0.75-1.5mm2
Output Operating mode Constant Current
Load type LED
Ripple requirement (Flickering or Flickering-Free) Flicker value: less than 2% for whole dimming range
No-load output voltage 40±1.5Vdc
Load output voltage
range		 3-30V DC
Full load output power 10.5W Max
Load output current 350MA(3-30V)
Constant current/voltage Precision Constant Current Precision ±5%
Wiring method Press fit terminal Wire Diameter:0.75-1.5mm2
Control Method Primary PUSH Dimming Primary PUSH dimming (Max.lead length:20M)
Dimming Range Primary PUSH & DALI dimming:1%-100%
1-10V(0-10V)Dimming Dimming range: 0-100%
DALI Dimming DALI dimming (Max.lead length:300M)
Exception Protection Requirements Input Over voltage Protection 300VAC 50Hz/60Hz 2 hours
Output Over voltage Protection N/A
Output over load protection N/A
Output no load protection N/A (Can be inquried)
Output over temperature protection Yes, without self recovery function(Can be inquried)
Output short circuit protection Yes, without self recovery function(Can be inquried)

Operating

Environment

 Operating temperature/ humidity -25℃+50℃ Humidity : 85% (Non-condensing)
Storage temperature/ humidity -40℃+80℃
Outer Max. Temp(Tc) 75%

Safety

& EMC



 Isolation pressurization 3750VAC 5mA 60S (Input “L N” Output“SEC+ SEC-”)
EMC standard EN55015 EN61547 EN61000-3-2 EN61000-3-3
DALI protocol standard IEC62386-102IEC62386-207
Safety standard EN61347-1 EN61347-2-13
Certification CE0700 RoHS
Others IP rating IP20
Protection level Class II
Packaging requirement Independent installation
Installation dimension 150*52*28mm
Blackout memory function Yes
Dimming synchronization PUSH switch dimming,supports 15 drivers synchronization
Packaging requirement White box Instructions Clapboard Outer Carton(K=A)
Weight 116.4g
Life 50000h @Ta full load
