Microwave Motion Sensor for Linear , Low Bay / High Bay Motion Sensor IP65

Place of Origin	China
Brand Name	Merrytek
Certification	UL
Model Number	MC609V RC B
Minimum Order Quantity	300pcs
Price	Negotiation
Packaging Details	Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time	1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms	T/T or western Union
Supply Ability	20,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Product Name	MC609V RC B	Rated Input Voltage	120/277/347Vac
Operating Mode	ON/OFF 1-10V	Stand-by Power	<1.0W
Hold Time	5S/30S/1min/3min/20min/30min（Remote Control：5S/30S/1min/3min/5min/10min/20min/30min）	Detection Area	100%/50%（Remote Control：100%/50%）
Operating Temperature	-35℃~+55℃	IP Rating	IP65
Mounting Height	Max. Mounting Height：12m Max.	Daylight Sensor	5lux/15Lux/30Lux/50Lux/100lux/150lux/Disable（Remote Control：5lux/15Lux/30Lux/50Lux/100lux/150lux/Disable）
High Light	light motion sensor , high bay motion sensor , High Bay Microwave Motion Sensor

Leave a Message

Product Description

Microwave Motion Sensor for Linear & Batten and High Bay & Low Bay IP65

1. Features:

Rated input voltage 120/277/347Vac
Large detection zone, IP65
12m Max. Mounting height
Stand-by Power: ≤1.0W
On/ off, 3-step dimming function
North American version for linear & batten and high bay & low bay.
Functions such as detection area, hold time, stand-by level, stand-by dim level etc can be set via DIP or infrared remote control MH01.
5 Years Guarantee

2. Parameters:

Input	Rated Input Voltage	120/277/347Vac
	Stand-by Power	≤1.0W
	Wiring Method	Wiring connection Wire diameter:18AWG
Output	Operating Mode	ON/OFF 1-10V
	Load Power	800W Inductive 1200W Resistive @347VAC 1200W Inductive 1600W Resistive @480VAC
	1-10V Dimming	< 50mA (Non constant current source)
	Wiring Method	Wiring connection Wire diameter:18AWG
Sensor Parameters	HF Operating frequency	5.8 GHz ±75 MHz,ISM wave band
	HF Radiated power	0.5mW Max.
	Detection Area	100%/50%(Remote control:100%/50%)
	Hold time	5S/30S/1min/3min/20min/30min(Remote control:5S/30S/1min/3min/5min/10min/20min/30min)
	Stand-by Level	0s/1min/3min/10min/30min/Disable(Remote control:0s/10S/1min/3min/5min/10min/30min/Disable)
	Daylight Sensor	5lux/15Lux/30Lux/50Lux/100lux/150lux/Disable(Remote control:5lux/15Lux/30Lux/50Lux/100lux/150lux/Disable)
	Stand-by Dim Level	10%/20%/30%/50%(Remote control:10%/20%/30%/50%)
	Mounting Height	Max. Mounting height:12m Max.
	Detection Angel	150°(wall mounting), 360°(ceiling mounting)
Operating Environment	Operating temperature	-35℃~+55℃
Operating Environment	Storage temperature	-40℃~+80℃
Safety & EMC	Isolation pressurization	N/A
Safety & EMC	EMC	N/A
Others	Certificate requirement	UL
	IP rating	IP65
	Protection Class	N/A
	Installation requirement	Independent Installation
	Installation size	¢72*59mm
	Packaging requirement	Bubble bag + Clapboard +Outer Carton (K=A)
	Life	50000h

3. Dimension (Unit:mm)

4. Wiring Diagram

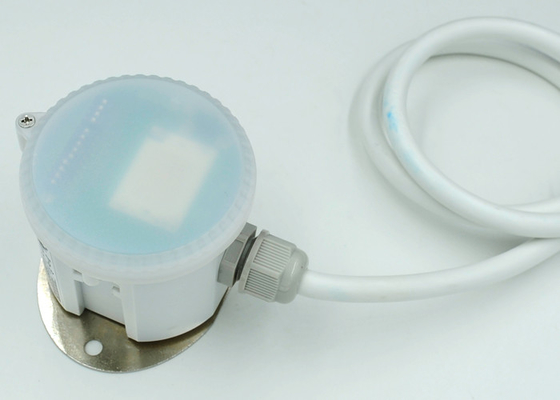

Microwave Motion Sensor for Linear , Low Bay / High Bay Motion Sensor IP65 1

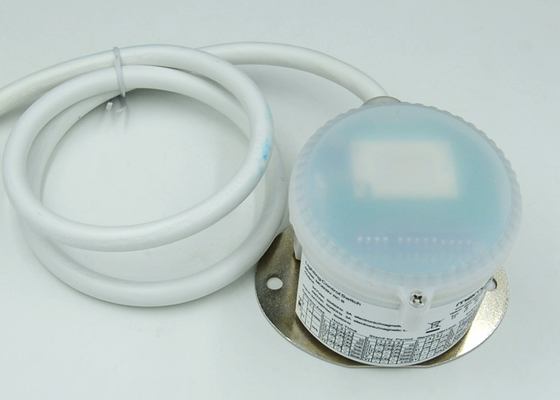

Microwave Motion Sensor for Linear , Low Bay / High Bay Motion Sensor IP65 2

5. Function
