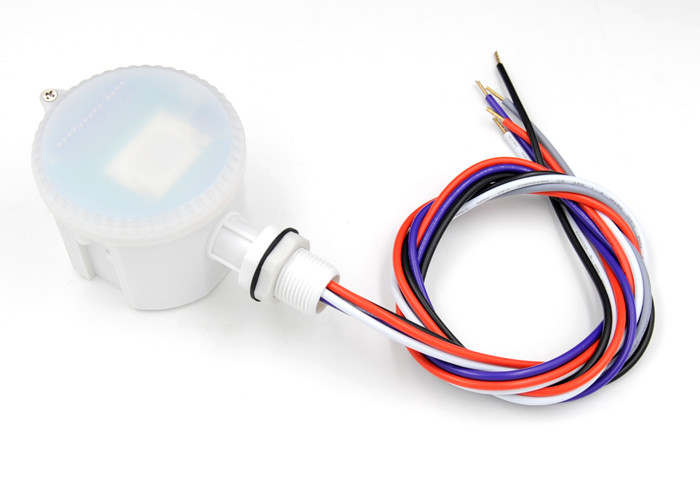

Waterproof UL Motion Sensor / MC609V RC D Led Security Lights Motion Sensor

  • Waterproof UL Motion Sensor / MC609V RC D Led Security Lights Motion Sensor
  • Waterproof UL Motion Sensor / MC609V RC D Led Security Lights Motion Sensor
  • Waterproof UL Motion Sensor / MC609V RC D Led Security Lights Motion Sensor
  • Waterproof UL Motion Sensor / MC609V RC D Led Security Lights Motion Sensor
  • Waterproof UL Motion Sensor / MC609V RC D Led Security Lights Motion Sensor
Place of Origin China
Brand Name Merrytek
Certification UL
Model Number MC609V RC D
Minimum Order Quantity 300pcs
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or western Union
Supply Ability 20,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name MC609V RC D Rated Input Voltage 120/277/347Vac
Operating Mode ON/OFF 1-10V Stand-by Power <1.0W
Hold Time 5S/30S/1min/3min/20min/30min（Remote Control：5S/30S/1min/3min/5min/10min/20min/30min） Detection Area 100%/50%（Remote Control：100%/50%）
Operating Temperature -35℃~+55℃ IP Rating IP65
Mounting Height Max. Mounting Height：12m Max. Load Power 800W Inductive 1200W Resistive @347VAC 1200W Inductive 1600W Resistive @480VAC
Life 50000h
High Light

microwave motion sensor

,

high bay motion sensor

,

Waterproof UL Motion Sensor
Leave a Message
Product Description



North American Version Microwave Motion Sensor for linear & batten and high bay IP65 MC609V RC D





1. Features:



  • Rated input voltage 120/277/347Vac
  • Large detection zone, IP65
  • 12m Max. Mounting height
  • Stand-by Power: ≤1.0W
  • On/ off, 3-step dimming function
  • North American version for linear & batten and high bay & low bay.
  • Functions such as detection area, hold time, stand-by level, stand-by dim level etc can be set via DIP or infrared remote control MH01.
  • 5 Years Guarantee





2. Parameters:



Input Rated Input Voltage 120/277/347Vac
Stand-by Power ≤1.0W
Wiring Method Wiring connection Wire diameter:18AWG
Output Operating Mode ON/OFF 1-10V
Load Power

800W Inductive 1200W Resistive @347VAC

1200W Inductive 1600W Resistive @480VAC
1-10V Dimming < 50mA (Non constant current source)
Wiring Method Wiring connection Wire diameter:18AWG
Sensor Parameters HF Operating frequency 5.8 GHz ±75 MHz,ISM wave band
HF Radiated power 0.5mW Max.
Detection Area 100%/50%(Remote control:100%/50%)
Hold time 5S/30S/1min/3min/20min/30min(Remote control:5S/30S/1min/3min/5min/10min/20min/30min)
Stand-by Level 0s/1min/3min/10min/30min/Disable(Remote control:0s/10S/1min/3min/5min/10min/30min/Disable)
Daylight Sensor 5lux/15Lux/30Lux/50Lux/100lux/150lux/Disable(Remote control:5lux/15Lux/30Lux/50Lux/100lux/150lux/Disable)
Stand-by Dim Level 10%/20%/30%/50%(Remote control:10%/20%/30%/50%)
Mounting Height Max. Mounting height:12m Max.
Detection Angel 150°(wall mounting), 360°(ceiling mounting)

Operating

Environment

 Operating temperature -35℃~+55℃
Storage temperature -40℃~+80℃

Safety

& EMC

 Isolation pressurization N/A
EMC N/A
Others Certificate requirement UL
IP rating IP65
Protection Class N/A
Installation requirement Independent Installation
Installation size ¢72*59mm
Packaging requirement Bubble bag + Clapboard +Outer Carton (K=A)
Life 50000h



       3. Dimension (Unit:mm)

Waterproof UL Motion Sensor / MC609V RC D Led Security Lights Motion Sensor 0



      4. Wiring Diagram





Waterproof UL Motion Sensor / MC609V RC D Led Security Lights Motion Sensor 1





Waterproof UL Motion Sensor / MC609V RC D Led Security Lights Motion Sensor 2



5. Function



Waterproof UL Motion Sensor / MC609V RC D Led Security Lights Motion Sensor 3



      6. Settings



  • Detection Area
  1
100% ON
50% -



  • Hold time
  2 3 4
5s ON ON ON
30s - ON ON
90s ON - ON
3min - - ON
20min ON ON -
30min - - -



  • Stand-by Period
  1 2 3
5s - - -
5min ON ON -
10min - - ON
30min ON - ON
1h - ON ON
+∞ ON ON ON





  • Stand-by Dim Level
Brightness % Constant
Voltage Output		 4 5
5-10% 1.5±0.2V ON ON
15-20% 2V±0.2V ON -
25-30% 3V±0.2V - ON
45-50% 5V±0.2V
  •
 -



  • Daylight Sensor
  6 7 8 9
5Lux ON ON ON ON
15Lux - ON ON ON
30Lux ON - ON ON
50lux - - ON ON
100lux ON ON - ON
150lux ON ON ON -
Disable - - - -
