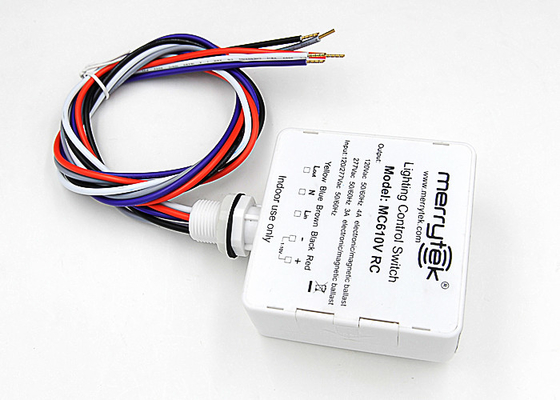

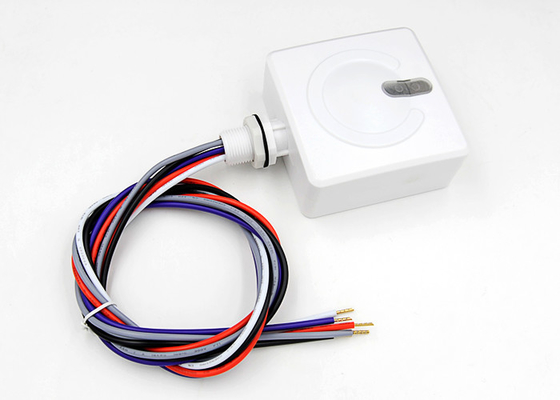

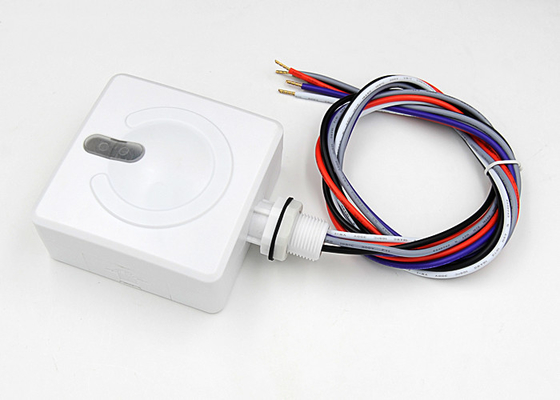

MC610V RC UL Motion Sensor For Lights with Daylight Threshold / Harvesting Function

  • MC610V RC UL Motion Sensor For Lights with Daylight Threshold / Harvesting Function
  • MC610V RC UL Motion Sensor For Lights with Daylight Threshold / Harvesting Function
  • MC610V RC UL Motion Sensor For Lights with Daylight Threshold / Harvesting Function
  • MC610V RC UL Motion Sensor For Lights with Daylight Threshold / Harvesting Function
Place of Origin China
Brand Name Merrytek
Certification FCC, UL（60730-1）
Model Number MC610V RC
Minimum Order Quantity 300pcs
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or western Union
Supply Ability 20,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name MC610V RC Rated Input Voltage 120/277/347Vac 50Hz/60Hz
Operating Mode ON/OFF 0-10V Stand-by Power <1.0W
Hold Time 8S/30S/1min/3min/20min/30min （Remote Control: 8S/30S/1min/3min/5min/10min/20min/30min） Stand-by Period 0s/1min/3min/10min/30min/Disable （Remote Control: 0s/10S/1min/3min/5min/10min/30min/Disable）
Mounting Height 12m Max. Load Power 3.6A@120V,3.4A@277V,3.3A@347V
Life 50000h Operating Temperature/humidity -35℃~+55℃
1-10V Dimming < 50mA （Non Constant Current Source）
High Light

microwave motion sensor

,

light motion sensor

,

Daylight UL Motion Sensor
Leave a Message
Product Description



 North American Version Microwave Motion Sensor MC610V RC or high bay and linear & batten, Daylight Threshold and Daylight Harvesting function





1. Features:



  • 120/277/347Vac (50Hz/60Hz) Input Voltage
  • On-Off/ 3-step dimming function
  • North American version for high bay and linear & batten
  • Daylight threshold and daylight harvesting function
  • 12m max. mounting height
  • Functions can be set via infrared remote control MH02 such as detection area, hold time, stand-by period, etc.





2. Parameters:



Input Rated Input Voltage 120/277/347Vac 50Hz/60Hz
Stand-by Power < 1.0W
Wiring Method Lead connection Wire diameter:18AWG
Output Operating Mode ON/OFF 0-10V
Load Power 3.6A@120V,3.4A@277V,3.3A@347V
1-10V Dimming < 50mA (Non constant current source)
Wiring Method Lead connection Wire diameter:22AWG
Sensor Parameters Operating Frequency 5.8 GHz ±75 MHz ISM wave band
HF Radiated Power 0.5mW Max.
Detection Area 100%/75%/50%/25%
Hold Time 8S/30S/1min/3min/20min/30min
(Remote Control: 8S/30S/1min/3min/5min/10min/20min/30min)
Stand-by Period 0s/1min/3min/10min/30min/Disable
(Remote Control: 0s/10S/1min/3min/5min/10min/30min/Disable)
Daylight Sensor

5lux/15Lux/30Lux/50Lux/100lux/150lux/Disable

(Remote Control:5lux/15Lux/30Lux/50Lux/100lux/150lux/Disable)
Stand-by Dim Level 10%/20%/30%/40%(Remote Control: 10%/20%/30%/40%/50%)
Constant Light Dimming
Area		 10%-100% (±5% unit for adjustment)
Mounting Height 12m Max.
Detection Angle 150°(Wall Mounting), 360°(Ceiling Mounting)

Operating

Environment

 Operating temperature/humidity -35℃~+55℃
Storage temperature/humidity -40℃~+80℃

Safety

& EMC

 Isolation pressurization N/A
EMC N/A
Others Certificate requirement FCC, UL(60730-1)
IP rating IP20
Protection level N/A
Installation requirement Independent side mounting
Installation Size 82*82*42mm
Weight 220g
Packaging requirement Bubble Bag + Clapboard +Outer Carton (K=A)
Life 50000h


       3. Dimension (Unit:mm)

MC610V RC UL Motion Sensor For Lights with Daylight Threshold / Harvesting Function 0



      4. Wiring Diagram





MC610V RC UL Motion Sensor For Lights with Daylight Threshold / Harvesting Function 1









5. Function



MC610V RC UL Motion Sensor For Lights with Daylight Threshold / Harvesting Function 2

MC610V RC UL Motion Sensor For Lights with Daylight Threshold / Harvesting Function 3



      6. Settings



  • Detection Area
  1 2
100% ON ON
75% ON -
50% - ON
25% - -



  • Hold time
  3 4 5
8S ON ON ON
30s - ON ON
1min ON - ON
3min - - ON
20min ON ON -
30min - - -



  • Stand-by Period



6 7 8
ON ON ON 0S
- ON ON 1min
ON - ON 3min
- - ON 10min
ON ON - 30min
- - - +∞
  • Stand-by Dim Level
  1 2
10% ON ON
20% ON -
30% - ON
50%   -



  • Daylight Sensor
3 4 5 6
ON ON ON ON 5Lux
- ON ON ON 15Lux
ON - ON ON 30Lux
- - ON ON 50lux
ON ON - ON 100lux
ON ON ON - 150lux
- - - - Disable



  • Remote Control MH02

MC610V RC UL Motion Sensor For Lights with Daylight Threshold / Harvesting Function 4



       7.​Label

MC610V RC UL Motion Sensor For Lights with Daylight Threshold / Harvesting Function 5
